Wide Flange PurlinsMetsec offer a range of wide flange Purlins where the cladding requires a larger bearing. This eliminates the need to fix an angle to the web of the Purlin to achieve the required bearing.

These sections are supplied as a sleeved system or butt system only.

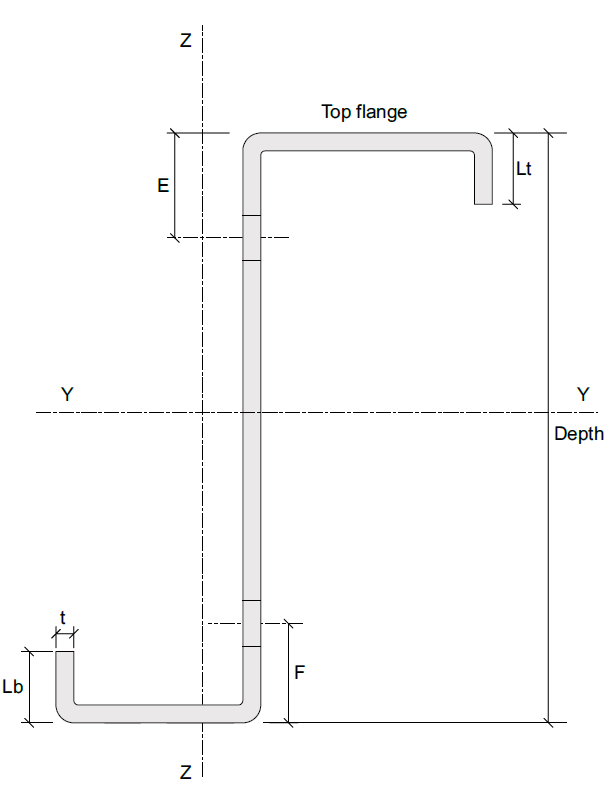

Lt mm Lb mm E mm F mm
18 15 44 42

Wide Flange Purlins

Section Reference Depth
mm
Top Flange Bottom Flange t
mm
202 Z 14 / 92 202 92 60 1.4
202 Z 15 / 92 202 92 60 1.5
202 Z 16 / 92 202 92 60 1.6
202 Z 18 / 92 202 92 60 1.8
202 Z 20 / 92 202 92 60 2.0
202 Z 23 / 92 202 92 60 2.3
202 Z 25 / 92 202 92 60 2.5
232 Z 15 / 92 232 92 60 1.5
232 Z 16 / 92 232 92 60 1.6
232 Z 18 / 92 232 92 60 1.8
232 Z 20 / 92 232 92 60 2.0
232 Z 23 / 92 232 92 60 2.3
232 Z 25 / 92 232 92 60 2.5
262 Z 16 / 92 262 92 60 1.6
262 Z 18 / 92 262 92 60 1.8
262 Z 23 / 92 262 92 60 2.3

Download our purlins technical manual for more information.
