Partition Systems

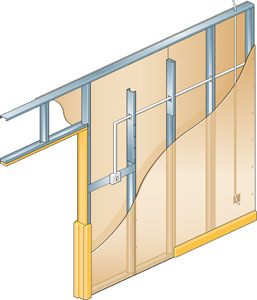

Standard Partitions

Ideal for use in a wide range of sectors including Residential, Healthcare, Education, Student accommodation, Hotels, Education, Commercial & Retail.

Both C Stud & I stud variants in single and double layer configurations.

Acoustic Stud Partitions

A cost-effective way to achieve improved acoustic performance in both domestic and commercial situations. Acoustic Stud has longer plasterboard fixing flanges than conventional C stud with an offset sightline resulting in improved sound insulation.

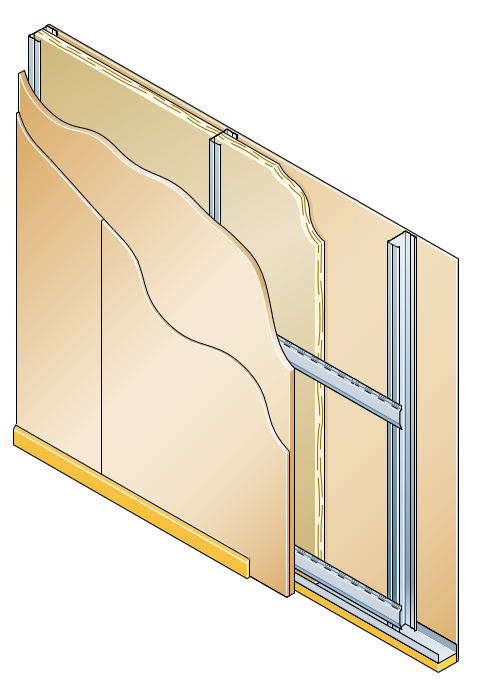

Resilient Bar Partitions

Often considered for part E compliance in both hotel and student accommodation sectors where 43 DnTw+Ctr dB required. Resilient bar (RB565) acts as a spacer on one side of the partition decoupling the plasterboard lining from the stud face resulting in improved sound insulation.

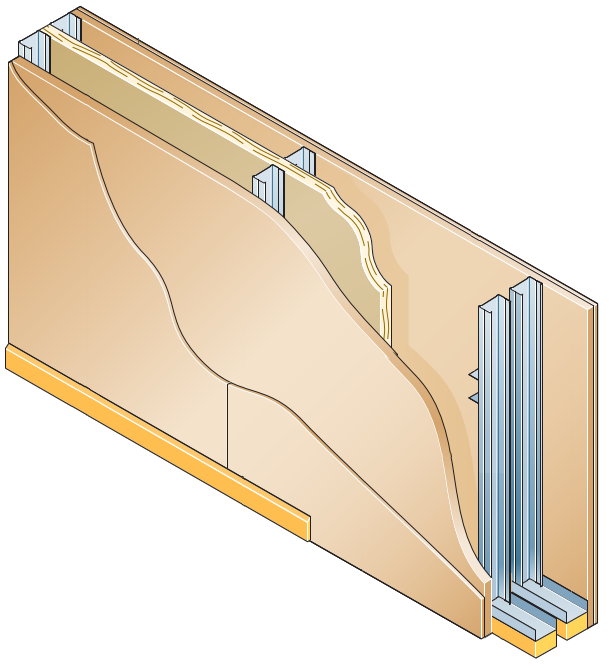

Braced C Stud Twin Frame Partitions

Often considered by project design teams as the most cost-effective way to achieve the baseline / minimum performances set out in Approved Document E where 45 DnTw+Ctr dB is required.

I Stud Independent Twin Frame Partitions

Capable of offering additional performance (+3db +5dB) compared to the baseline / minimum performances set out in Approved Document E when extra accreditation is requested and 48 DnTw+Ctr dB / 50 DnTw+Ctr dB is required.
