Metframe Components

The following tables show the voestalpine Metsec Framing standard section ranges for Metframe.
These consist of the following section profiles listed below:

• ‘C sections’: Used as studs in internal/external wall panels and joists in floor/roof panels.
• ‘Tracks’: Used as tracks on top and bottom of wall panels and ends of floor/roof panels.
• ‘Zeds’: Used at wall panel heads to support slabs or floor/roof panels.
• ‘Angles’: Used for non-slab side of gable panel heads and temporary roof support members.
• ‘Straps’: A range of straps are available to use as bracing members when screw fixed to face of wall panels.
• ‘Shutter Angles’: Used as slab closure members to prevent concrete spillage.
• ‘Asymmetric Shutters’: Used as slab support typically at parapets, and closure members to prevent concrete spillage.

Examples of section references:

100MF14/70 = MF Denotes voestalpine Metsec Framing Section, 100mm web depth, 70mm flange, 1.4mm material
thickness. Lipped C-Section.

100MF12/67U = MF Denotes voestalpine Metsec Framing Section, 100mm web depth, 67mm flange, 1.2mm material
thickness ‘U’ denotes Un-Lipped C-Section.

104MF14 = Non-lipped channel section of 104mm depth, 1.4mm material thickness.

MF-163Z30/1 = Z denotes ‘Zed’ section, 163mm overall depth, 3.0mm material thickness.

MF-163F30 = F denotes ‘Asymmetric Shutter’ with a 163mm overall depth, 3.0mm material thickness.

All holes in studs and tracks are typically 14mm Diameter plain holes in web, and 14mm Diameter countersunk or plain holes in
flanges. Refer to section range for hole types.

Where necessary the voestalpine Metsec Framing range of sections can be used in conjunction with other ranges produced in the
voestalpine Metsec Building Products division. (i.e SFS & Purlins)

All structural components are formed from pre-hot dipped galvanised steel with a Z275 coating, minimum yield strength = 450N/mm².
Note, 45x45x2 and bracing straps have a minimum yield strength of 350N/mm².

All other components shown in our details but not listed in our range are not supplied by voestalpine Metsec.

/

	Section Reference	Weight kg/m	D mm	F1 mm	F2 mm	L mm	t mm	A mm	B mm	C mm	C1 mm	C2 mm	Hole Size				Hole Type
													Web		Flange		Web			Flange
													14	18	14	18	Csk	Plain	Service Slot	Csk	Plain

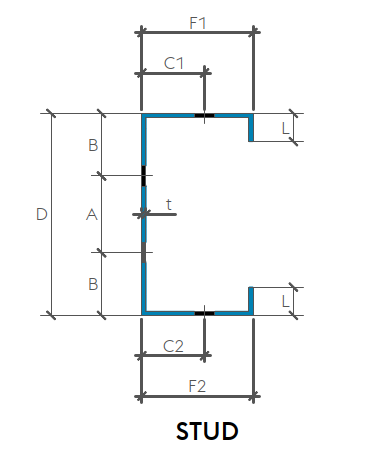

Studs / Joists	100MF12/50	2.11	100	50	50	14	1.2	38	31	—	31	31
	100MF12/70	2.44	100	70	70	15	1.2	38	31	—	31	31
	100MF14/70	2.85	100	70	70	15	1.4	38	31	—	31	31
	100MF16/70	3.24	100	70	70	15	1.6	38	31	—	31	31
	100MF18/70	3.63	100	70	70	15	1.8	38	31	—	31	31
	100MF18/82	4.09	100	83	83	18	1.8	38	31	—	31	31
	100MF20/70	4.05	100	71	71	15	2	38	31	—	31	31
	100MF20/82	4.53	100	83	83	18	2	38	31	—	31	31
	100MF20/100	4.97	100	100	100	15	2	38	31	—	31	31
	100MF23/70	4.64	100	71	71	15	2.3	38	31	—	31	31
	100MF23/95	5.66	100	95	95	19	2.3	38	31	—	31	31
	100MF23/86U**	4.64	100	86	86	0	2.3	38	31	—	31	31
	100MF23/2	4.64	100	71	71	15	2.3	66	17	—	31	31
	100MF27/70	5.36	100	70	70	15	2.7	38	31	—	31	31
	100MF27/107	7.24	100	107	107	22	2.7	38	31	—	31	31
	100MF30/110	8.16	100	110	110	22	3	38	31	—	31	31
	100MF30/1	8.16	100	110	110	22	3	38	31	—	37	37
	100MF30/100	7.49	100	100	100	18	3	38	31	—	31	31
	120MF12/75	2.72	120	74	74	15	1.2	58	31	—	31	31
	120MF14/75	3.17	120	75	75	15	1.4	58	31	—	31	31
	120MF16/75	3.62	120	75	75	15	1.6	58	31	—	31	31
	120MF18/75	4.06	120	75	75	15	1.8	58	31	—	31	31
	120MF20/75	4.51	120	76	76	15	2	58	31	—	31	31
	120MF23/82	5.62	120	81	81	22	2.3	58	31	—	31	31
	120MF27/75	6	120	75	75	15	2.7	58	31	—	31	31
	120MF27/100	7.24	120	100	100	19	2.7	58	31	—	31	31
	120MF29/75	6.42	120	75	75	15	2.9	58	31	—	31	31
	120MF30/110	8.54	120	110	110	22	3	58	31	—	31	31
	150MF12/62	2.72	150	62	62	12	1.2	88	31	—	31	31
	150MF14/75	3.47	150	73	73	15	1.4	88	31	—	31	31
	150MF16/75	3.97	150	74	74	15	1.6	88	31	—	31	31
	150MF18/75	4.48	150	75	75	15	1.8	88	31	—	31	31
	150MF20/75	4.97	150	75	75	15	2	88	31	—	31	31
	150MF30/75	7.59	150	75	75	16	3	88	31	—	31	31
	200MF12/55	3.02	200	55	55	10	1.2	138	31	—	31	31
	200MF14/60	3.81	200	62	62	10	1.4	138	31	—	31	31
	200MF16/64	4.36	200	64	64	15	1.6	138	31	—	31	31
	200MF18/64	4.89	200	64	64	15	1.8	138	31	—	31	31
	200MF20/64	5.42	200	64	64	15	2	138	31	—	31	31
	200MF30/70	8.16	200	68	68	14	3	138	31	—	31	31
	250MF13/55	3.81	250	56	56	13	1.3	130	60	—	34	34
	250MF16/70	5.11	250	69	69	15	1.6	130	60	—	34	34
	250MF18/70	5.75	250	69	69	15	1.8	130	60	—	34	34
	250MF20/70	6.37	250	69	69	15	2	130	60	—	34	34
	250MF29/82	9.87	250	82	82	18	2.9	130	60	—	34	34
	300MF13/55	4.4	300	55	55	15	1.3	180	60	—	31	31
	300MF16/60	5.49	300	61	61	13	1.6	180	60	—	31	31
	300MF18/70	6.63	300	70	70	20	1.8	180	60	—	31	31
	300MF20/70	7.36	300	70	70	20	2	180	60	—	31	31
	300MF29/82	11.37	300	82	82	15	2.9	180	60	—	31	31
Z600 Profiles	100MF20/70G	5.66	100	71	71	19	2	38	31	—	31	31
	100MF25/95G	6.09	100	95	95	19	2.5	38	31	—	31	31
	100MF29/110G	8.16	100	110	110	22	2.95	38	31	—	31	31
	104MF20G	3.49	104	65	65	0	2	52	26	33	—	—
	MF-90VB12	0.9	90	—	—	—	1.2	—	—	—	—	—

	Section Reference	Weight kg/m	D mm	F1 mm	F2 mm	L mm	t mm	A mm	B mm	C mm	C1 mm	C2 mm	Hole Size				Hole Type
													Web		Flange		Web			Flange
													14	18	14	18	Csk	Plain	Service Slot	Csk	Plain

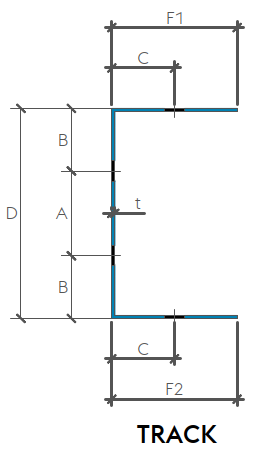

Tracks	104MF12	2.11	104	62	62	0	1.20	52	26	33	—	—
	104MF14	2.46	104	65	65	0	1.40	52	26	33	—	—
	104MF20	3.49	104	65	65	0	2.00	52	26	33	—	—
	108MF30	5.27	108	62	62	0	3.00	52	28	33	—	—
	104MF**B*	2.46	104	65	65	0	1.40	52	26	33	—	—
	124MF14	2.84	124	69	69	0	1.40	72	26	33	—	—
	124MF20	4.03	124	69	69	0	2.00	72	26	33	—	—
	128MF30	6.01	128	70	70	0	3.00	72	28	33	—	—
	124MF**B*	2.84	124	69	69	0	1.40	72	26	33	—	—
	154MF14	3.17	154	69	69	0	1.40	88	33	33	—	—
	154MF20	4.52	154	70	70	0	2.00	88	33	33	—	—
	158MF30	6.70	158	69	69	0	3.00	88	35	33	—	—
	204MF14	3.81	204	73	73	0	1.40	138	33	33	—	—
	204MF20	5.42	204	73	73	0	2.00	138	33	33	—	—
	208MF30	8.13	208	72	72	0	3.00	138	35	33	—	—
	254MF13	4.10	254	75	75	0	1.30	130	62	33	—	—
	254MF16	4.72	254	63	63	0	1.60	130	62	33	—	—
	254MF20	5.90	254	63	63	0	2.00	130	62	33	—	—
	304MF16	5.48	304	68	68	0	1.60	180	62	33	—	—
	304MF20	6.82	304	67	67	0	2.00	180	62	33	—	—
	306MF29	9.89	304	67	67	0	2.90	180	63	33	—	—

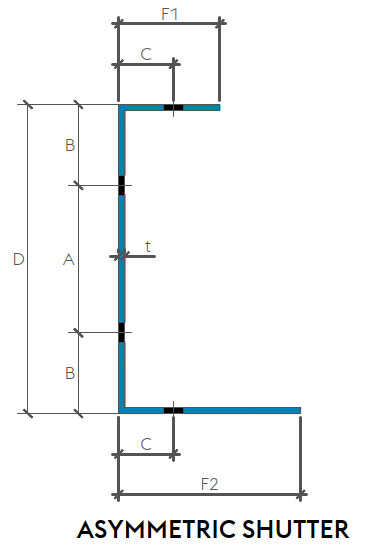

Asymmetric Shutters	MF-143F30	6.67	143	50	100	—	3.00	63	40	27	—	—
	MF-153F30	6.67	153	50	90	—	3.00	73	40	27	—	—
	MF-163F30	6.67	163	50	80	—	3.00	83	40	27	—	—
	MF-173F30	7.40	173	50	101	—	3.00	93	40	27	—	—
	MF-183F30	7.40	183	50	91	—	3.00	103	40	27	—	—
	MF-193F30	7.40	193	50	81	—	3.00	113	40	27	—	—
	MF-203F30	8.06	203	50	99	—	3.00	123	40	27	—	—
	MF-218F30	8.06	218	50	84	—	3.00	138	40	27	—	—

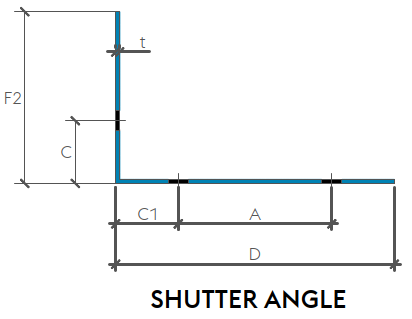

Shutter Angles	MF-127Z20	3.43	127	—	98	—	2.00	65	—	31	31	—
	MF-140Z20	3.43	140	—	85	—	2.00	78	—	31	31	—
	MF-160Z30	5.75	160	—	94	—	3.00	98	—	31	31	—
	MF-183Z30/2	5.75	183	—	71	—	3.00	121	—	0	31	—
	MF-190Z30	5.75	190	—	64	—	3.00	123	—	24	37	—
	MF-206Z20	4.86	206	—	110	—	2.00	144	—	31	31	—

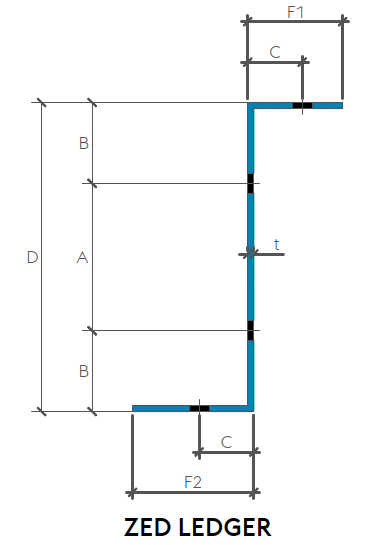

Zed Ledgers	MF-153Z20	4.31	153	47	81	—	2.00	78	35	27	—	—
	MF-163Z20	4.31	163	50	68	—	2.00	88	35	27	—	—
	MF-203Z20	4.94	203	50	68	—	2.00	128	35	27	—	—
	MF-226Z20	5.45	226	50	78	—	2.00	144	42	26	—	—
	MF-253Z20	5.45	253	50	51	—	2.00	149	64	26	—	—
	MF-113Z30/1	5.23	113	50	69	—	3.00	38	35	27	—	—
	MF-133Z30/1	5.89	133	50	77	—	3.00	53	40	27	—	—
	MF-143Z30/1	5.89	143	50	67	—	3.00	63	40	27	—	—
	MF-153Z30/1	5.89	153	47	60	—	3.00	73	40	27	—	—
	MF-163Z30/1	6.67	163	50	80	—	3.00	83	40	27	—	—
	MF-173Z30/1	6.67	173	50	70	—	3.00	93	40	27	—	—
	MF-183Z30/1	6.67	183	50	60	—	3.00	103	40	27	—	—
	MF-193Z30/1	7.40	193	50	81	—	3.00	113	40	27	—	—
	MF-203Z30/1	7.40	203	50	71	—	3.00	123	40	27	—	—
	MF-218Z30/1	8.06	218	50	84	—	3.00	138	40	27	—	—
	MF-238Z30/1	8.06	238	50	64	—	3.00	158	40	27	—	—

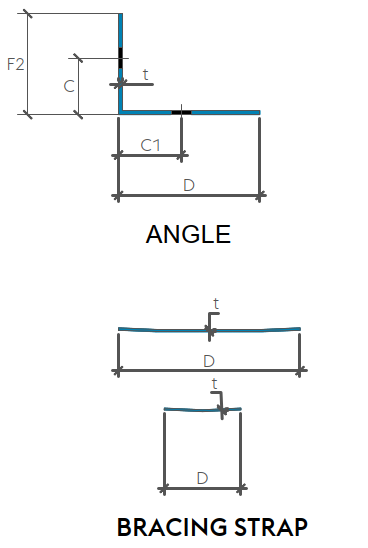

Angles	MF-45x45x2.0	1.36	45	—	45	—	2.00	—	—	28	28	—
	MF-70x50x2.0	1.83	70	—	50	—	2.00	—	—	26	40	—
	MF-100x100x2.0	3.09	100	—	100	—	2.00	—	—	40	40	—
Strap	MF-90VB12	0.86	90	—	—	—	1.20	—	—	—	—	—
	MF-40VB11	0.25	40	—	—	—	1.10	—	—	—	—	—
