Metsec standard purlin cleats are suitable for all normal applications on purlins and side rail systems.

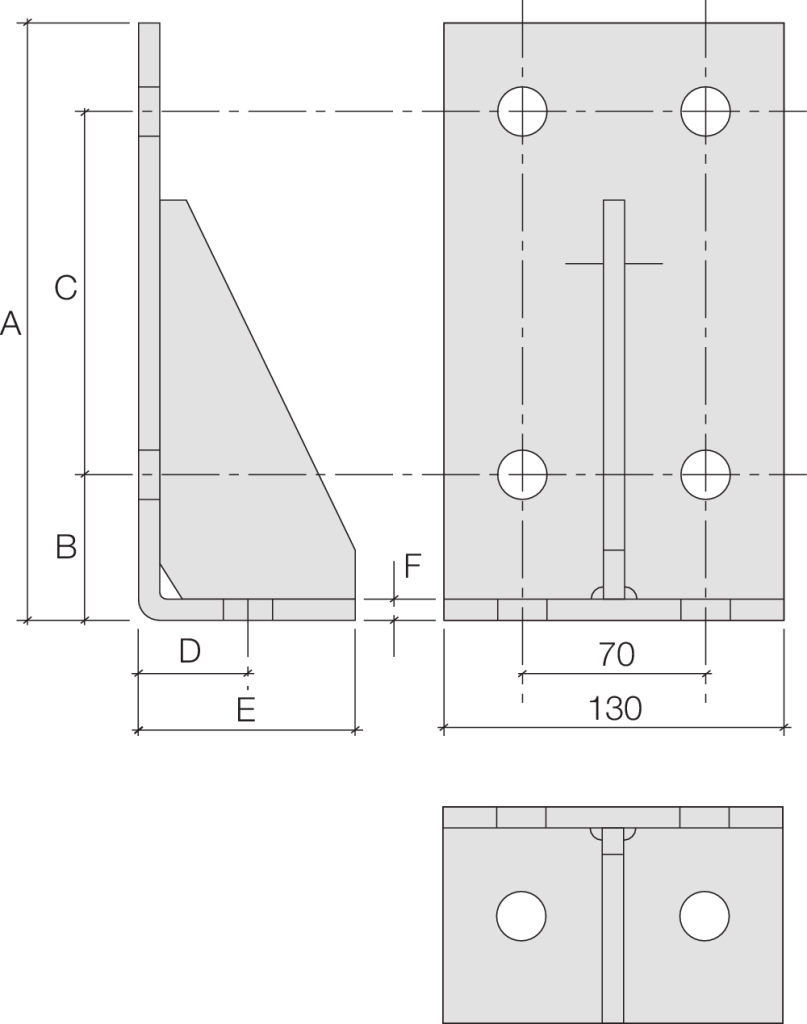

For abnormal loadings in tiled roof/steep slopes, cleats should be stiffened.
| Cleat ref. | A | B* | C | D | E | F |
| 142 | 130 | 50 | 56 | 35 | 65 | 6 |
| 172 | 160 | 50 | 86 | 35 | 65 | 6 |
| 202 | 190 | 50 | 116 | 35 | 65 | 6 |
| 232 | 220 | 50 | 146 | 35 | 65 | 8 |
| 262 | 250 | 50 | 176 | 35 | 65 | 8 |
| 302 | 280 | 60 | 195 | 40 | 75 | 8 |
| 342 | 320 | 60 | 235 | 40 | 75 | 8 |
All holes 18mm diameter
* Variable height cleats can be supplied if required. Dimension B = 142 maximum (142-232 range).

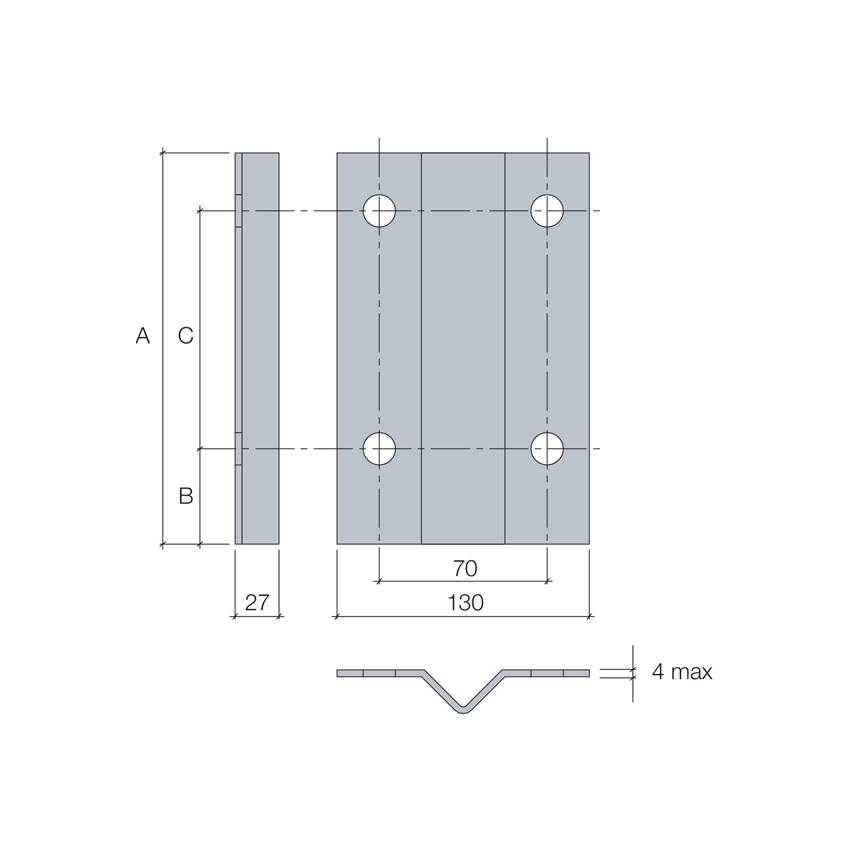

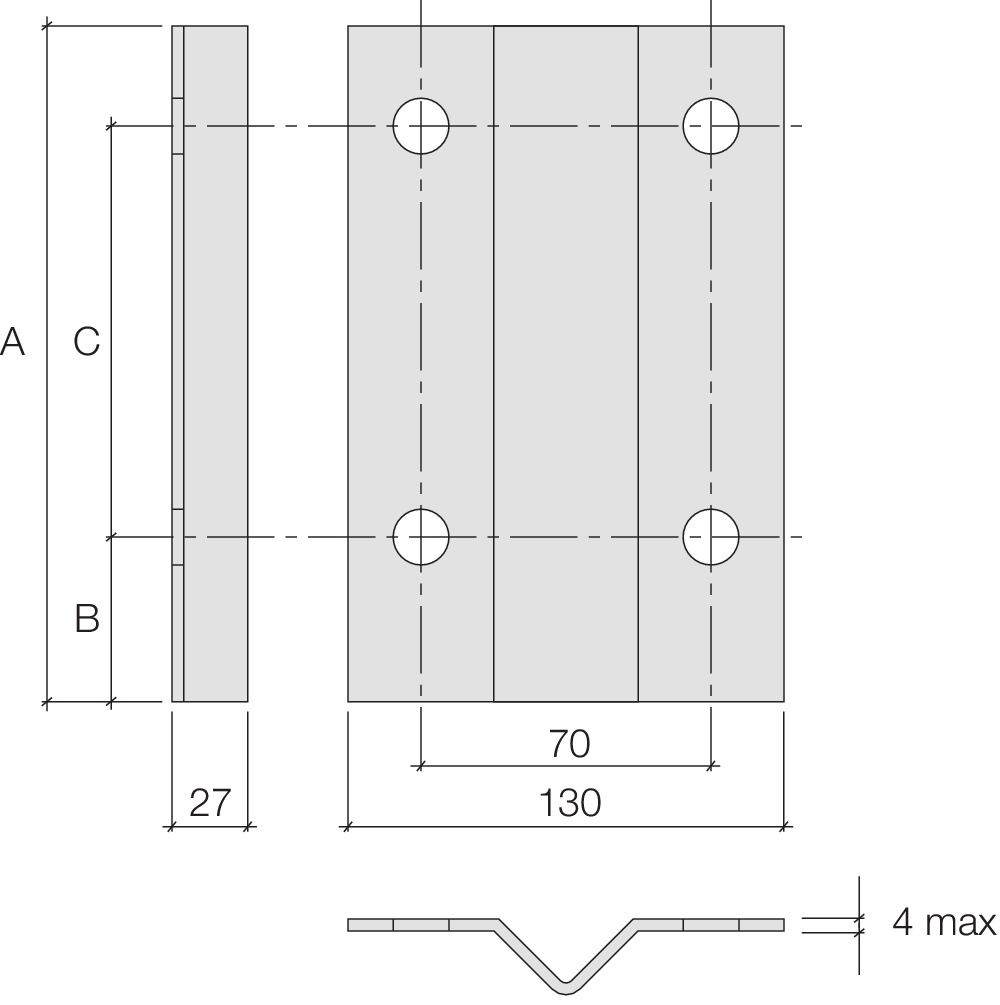

Series 142–262 weld-on cleats
Finish
1. Black bare metal

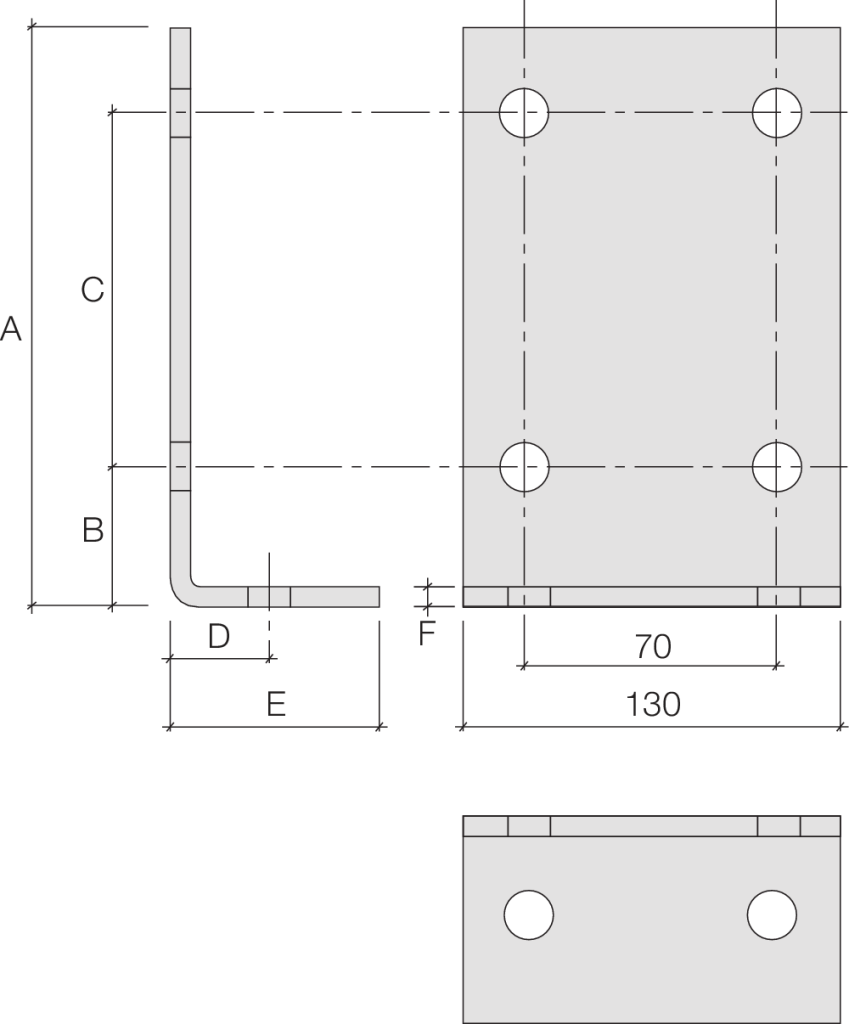

Series 142-262 bolt-on cleats
Finish
1. 6mm pre-galvanised
2. 8mm hot dipped galvanised
Series 302 and 342 weld-on or bolt-on cleat
Finish
1. Black bare metal for welding or bolting
2. Hot dipped galvanised for bolting

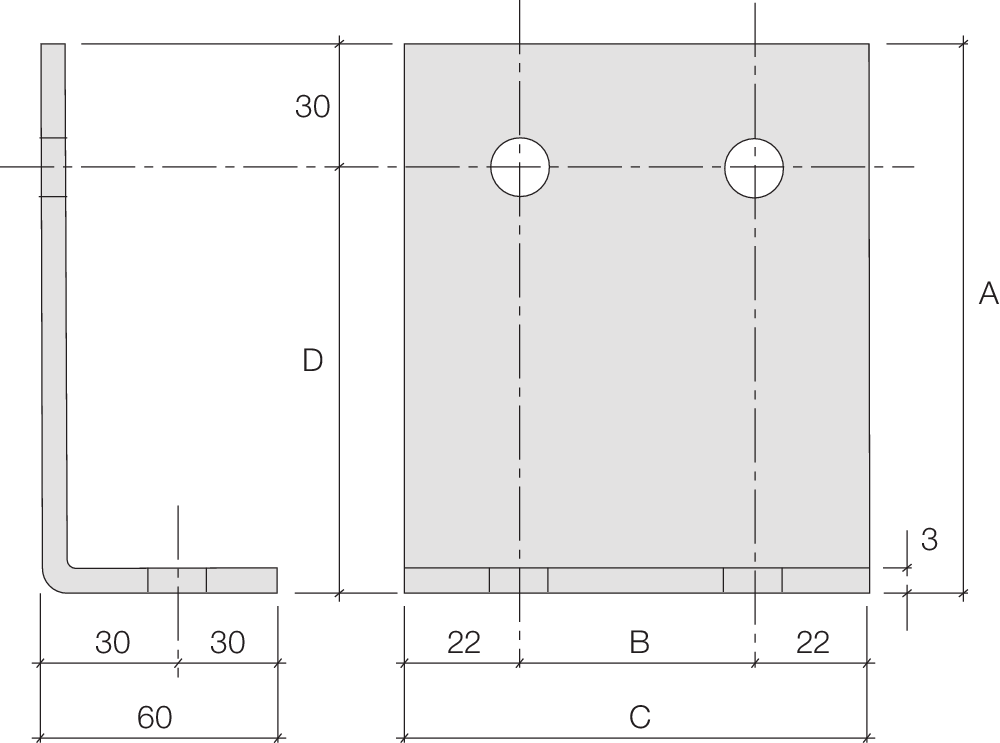

| Cleat ref. | A | B | C | D |
| TC 142 | 126 | 56 | 100 | 96 |
| TC 172 | 136 | 86 | 130 | 106 |
| TC 202 | 136 | 116 | 160 | 106 |
| TC 232 | 142 | 146 | 190 | 112 |
| TC 262 | 146 | 176 | 220 | 116 |
| TC 302 | 156 | 195 | 239 | 126 |
| TC 342 | 166 | 235 | 279 | 136 |
All trimmer cleats are 3mm galvanised steel, suitable for compatible depths of Z-section and C-section, i.e. 202. Z. to 202. C. etc.
Download our purlin technical manual for more information.
