Panel Joint Rails And Horizontal Cladding Supports

For economy, it is recommended that voestalpine Metsec horizontal cladding supports with riveted end cleats are used as vertical supports to the horizontal cladding panels.

Joints in panels may require a wider flange for fixing purposes which can be provided by using a voestalpine Metsec panel joint rail.

Alignment of the steel face can easily be achieved by adjustment of the horizontal rails on slotted cleats at the stanchion position.

In order to achieve the alignment tolerances associated with some horizontal cladding systems, it is recommended that C-section side rails are used in conjunction with HCS or PJR as vertical supports. Additional local adjustment is provided by slotted holes in the HCS and PJR fixing cleats.

The maximum spacing of vertical supports to horizontal panels is shown and is necessary to provide adequate restraint to the rails. If this cannot be achieved, please refer to voestalpine Metsec for advice.

Sequence of erection of the side rails, side rail supports and diagonal tie wire restraints is similar to the recommendations shown on pages 75–77.

Note: rail alignment and cladding support to be provided by the steelwork contractor.

For more information take a look at our purlin technical manual, which can be found at the bottom of this page.

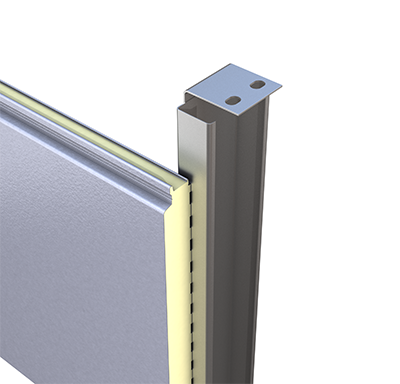

Panel Joint Rails with Riveted End Cleats

PJR with riveted end cleats

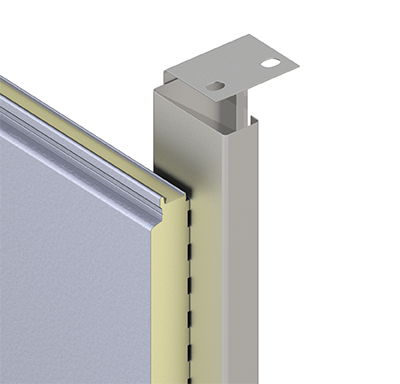

Horizontal Cladding Support with Riveted End Cleats

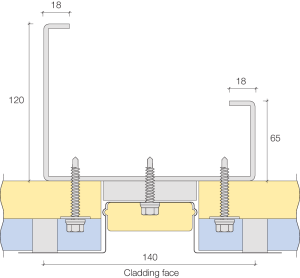

Panel Joint Rail Support at Panel Joint

Support panel joint

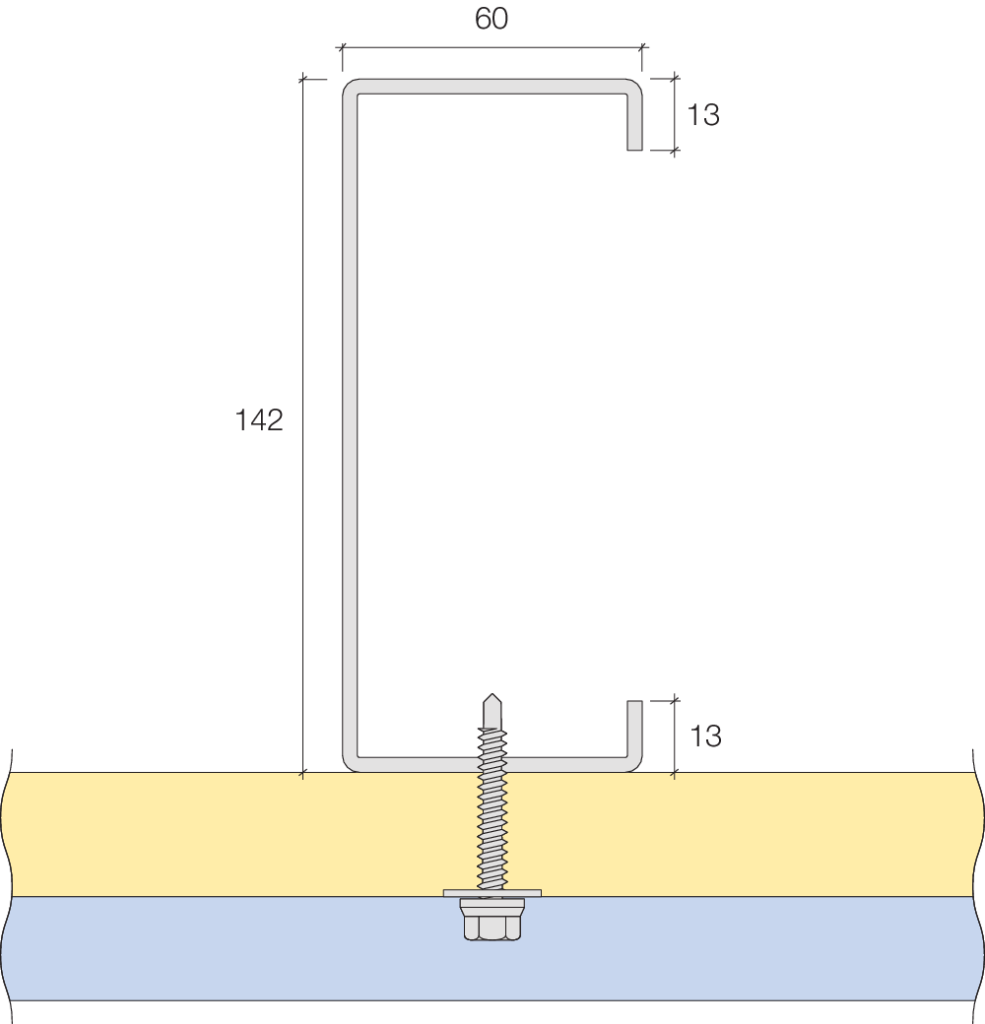

Horizontal Cladding SupportIntermediate support to panel

Immediate support panel
