Equal tee Cable Tray

Equal tee Cable TrayTees & Crossovers

Equal tees, unequal tees and crossovers are available for light, medium and heavy duty cable tray systems with widths ranging from 50mm – 900mm.

Materials and finishes available are mild steel pre galvanised as standard with mild steel hot dip galvanised after manufacture and stainless steel grade 1.4404 (316L) to order.

Closed and ventilated covers are available for all tees and crossovers.

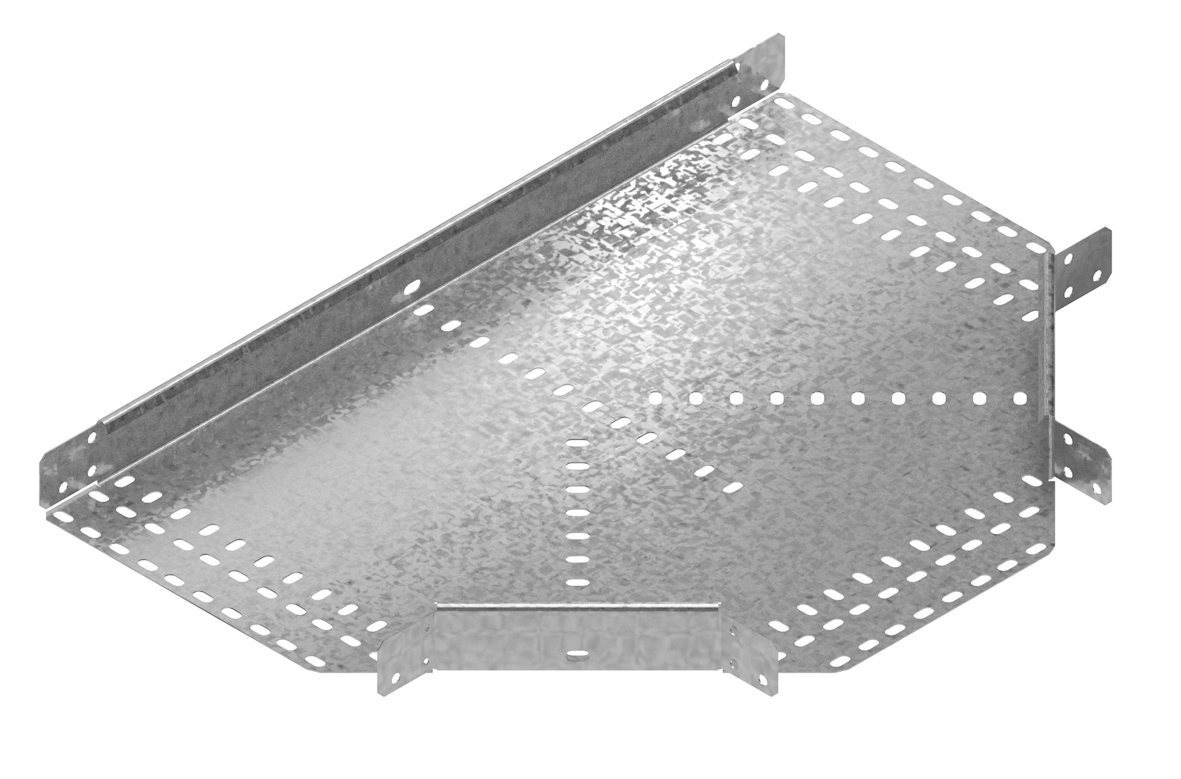

Equal Tee

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Equal tee Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
50 CTET12/0050PG CTET25/0050PG N/A
75 CTET12/0075PG CTET25/0075PG CTET50/0075PG
100 CTET12/0100PG CTET25/0100PG CTET50/0100PG
150 CTET12/0150PG CTET25/0150PG CTET50/0150PG
225 CTET12/0225PG CTET25/0225PG CTET50/0225PG
300 CTET18/0300PG CTET25/0300PG CTET50/0300PG
450 N/A CTET25/0450PG CTET50/0450PG
600 N/A CTET25/0600PG CTET50/0600PG
750 N/A N/A CTET50/0750PG
900 N/A N/A CTET50/09

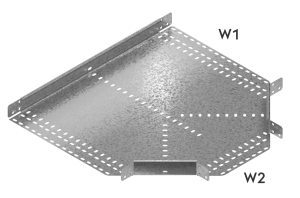

Unequal Tee (made to order)

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

How to generate the part number – CTUT (depth)/W1/W2(finish)

Example – CTUT 25/0300/0150/PG

Table below shows a complete list of W1 and W2 combinations.

Unequal Tee (made to order) Cable Tray

W1 W2
50 75, 100, 150, 225, 300, 450, 600, 750, 900
75 50, 100, 150, 225, 300, 450, 600, 750, 900
100 50, 75, 150, 225, 300, 450, 600, 750, 900
150 50, 75, 100, 225, 300, 450, 600, 750, 900
225 50, 75, 100, 150, 300, 450, 600, 750, 900
300 50, 75, 100, 150, 225, 450, 600, 750, 900
450 50, 75, 100, 150, 225, 300, 600, 750, 900
600 50, 75, 100, 150, 225, 300, 450, 750, 900
750 50, 75, 100, 150, 225, 300, 450, 600, 900
900 50, 75, 100, 150, 225, 300, 450, 600, 750

Crossovers

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Crossovers Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
50 CTCO12/0050PG CTCO25/0050PG N/A
75 CTCO12/0075PG CTCO25/0075PG CTCO50/0075PG
100 CTCO12/0100PG CTCO25/0100PG CTCO50/0100PG
150 CTCO12/0150PG CTCO25/0150PG CTCO50/0150PG
225 CTCO12/0225PG CTCO25/0225PG CTCO50/0225PG
300 CTCO18/0300PG CTCO25/0300PG CTCO50/0300PG
450 N/A CTCO25/0450PG CTCO50/0450PG
600 N/A CTCO25/0600PG CTCO50/0600PG
750 N/A N/A CTCO50/0750PG
900 N/A N/A CTCO50/0900PG
