Reducers (made to order) Cable Tray

Reducers (made to order) Cable TrayReducers

Reducers are available for light, medium and heavy duty cable tray systems with widths ranging from 50mm – 900mm.

Materials and finishes available are mild steel pre galvanised as standard with mild steel hot dip galvanised after manufacture and stainless steel grade 1.4404 (316L) to order. Where requirements specify – a post manufacture process which involves chemical cleaning and passivation of stainless steel parts is also available on request.

Closed and ventilated covers are available for all reducers.

Reducers (made to order)

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

For left hand reducers replace CTSR in part number with CTLR.

For right hand reducers replace CTSR in part number with CTRR.

Reducers (made to order) Cable Tray

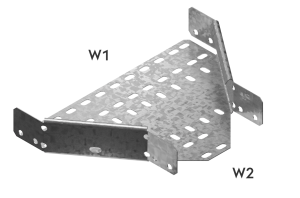

Width mm Light Duty Medium Duty Heavy Duty
W1 W2
75 50 CTSR12/0075/0050PG CTSR25/0075/0050PG N/A
100 50 CTSR12/0100/0050PG CTSR25/0100/0050PG N/A
150 50 CTSR12/0150/0050PG CTSR25/0150/0050PG N/A
225 50 CTSR12/0225/0050PG CTSR25/0225/0050PG N/A
300 50 CTSR18/0300/0050PG CTSR25/0300/0050PG N/A
450 50 N/A CTSR25/0450/0050PG N/A
600 50 N/A CTSR25/0600/0050PG N/A
750 50 N/A N/A N/A
900 50 N/A N/A N/A
100 75 CTSR12/0100/0075PG CTSR25/0100/0075PG CTSR50/0100/0075PG
150 75 CTSR12/0150/0075PG CTSR25/0150/0075PG CTSR50/0150/0075PG
225 75 CTSR12/0225/0075PG CTSR25/0225/0075PG CTSR50/0225/0075PG
300 75 CTSR18/0300/0075PG CTSR25/0300/0075PG CTSR50/0300/0075PG
450 75 N/A CTSR25/0450/0075PG CTSR50/0450/0075PG
600 75 N/A CTSR25/0600/0075PG CTSR50/0600/0075PG
750 75 N/A N/A CTSR50/0750/0075PG
900 75 N/A N/A CTSR50/0900/0075PG
150 100 CTSR12/0150/0100PG CTSR25/0150/0100PG CTSR50/0150/0100PG
225 100 CTSR12/0225/0100PG CTSR25/0225/0100PG CTSR50/0225/0100PG
300 100 CTSR18/0300/0100PG CTSR25/0300/0100PG CTSR50/0300/0100PG
450 100 N/A CTSR25/0450/0100PG CTSR50/0450/0100PG
600 100 N/A CTSR25/0600/0100PG CTSR50/0600/0100PG
750 100 N/A N/A CTSR50/0750/0100PG
900 100 N/A N/A CTSR50/0900/0100PG
225 150 CTSR12/0225/0150PG CTSR25/0225/0150PG CTSR50/0225/0150PG
300 150 CTSR18/0300/0150PG CTSR25/0300/0150PG CTSR50/0300/0150PG
450 150 N/A CTSR25/0450/0150PG CTSR50/0450/0150PG
600 150 N/A CTSR25/0600/0150PG CTSR50/0600/0150PG
750 150 N/A N/A CTSR50/0750/0150PG
900 150 N/A N/A CTSR50/0900/0150PG
300 225 CTSR18/0300/0225PG CTSR25/0300/0225PG CTSR50/0300/0225PG
450 225 N/A CTSR25/0450/0225PG CTSR50/0450/0225PG
600 225 N/A CTSR25/0600/0225PG CTSR50/0600/0225PG
750 225 N/A N/A CTSR50/0750/0225PG
900 225 N/A N/A CTSR50/0900/0225PG
450 300 N/A CTSR25/0450/0300PG CTSR50/0450/0300PG
600 300 N/A CTSR25/0600/0300PG CTSR50/0600/0300PG
750 300 N/A N/A CTSR50/0750/0300PG
900 300 N/A N/A CTSR50/0900/0300PG
600 450 N/A CTSR25/0600/0450PG CTSR50/0600/0450PG
750 450 N/A N/A CTSR50/0750/0450PG
900 450 N/A N/A CTSR50/0900/0450PG
750 600 N/A N/A CTSR50/0750/0600PG
900 600 N/A N/A CTSR50/0900/0600PG
900 750 N/A N/A CTSR50/0900/0750PG
