90 Degree Flat Bends Cable Tray

90 Degree Flat Bends Cable TrayFlat Bends

45° & 90° flat bends are available for light, medium and heavy duty cable tray systems with widths ranging from 50mm – 900mm.

An adjustable bend with 30°, 45°, 60°, 75° & 90° configurations is also available for medium and heavy duty trays up to 300mm wide.

Materials and finishes available are mild steel pre galvanised as standard with mild steel hot dip galvanised after manufacture and stainless steel grade 1.4404 (316L) to order.

Closed and ventilated covers are available for 45° & 90° bends.

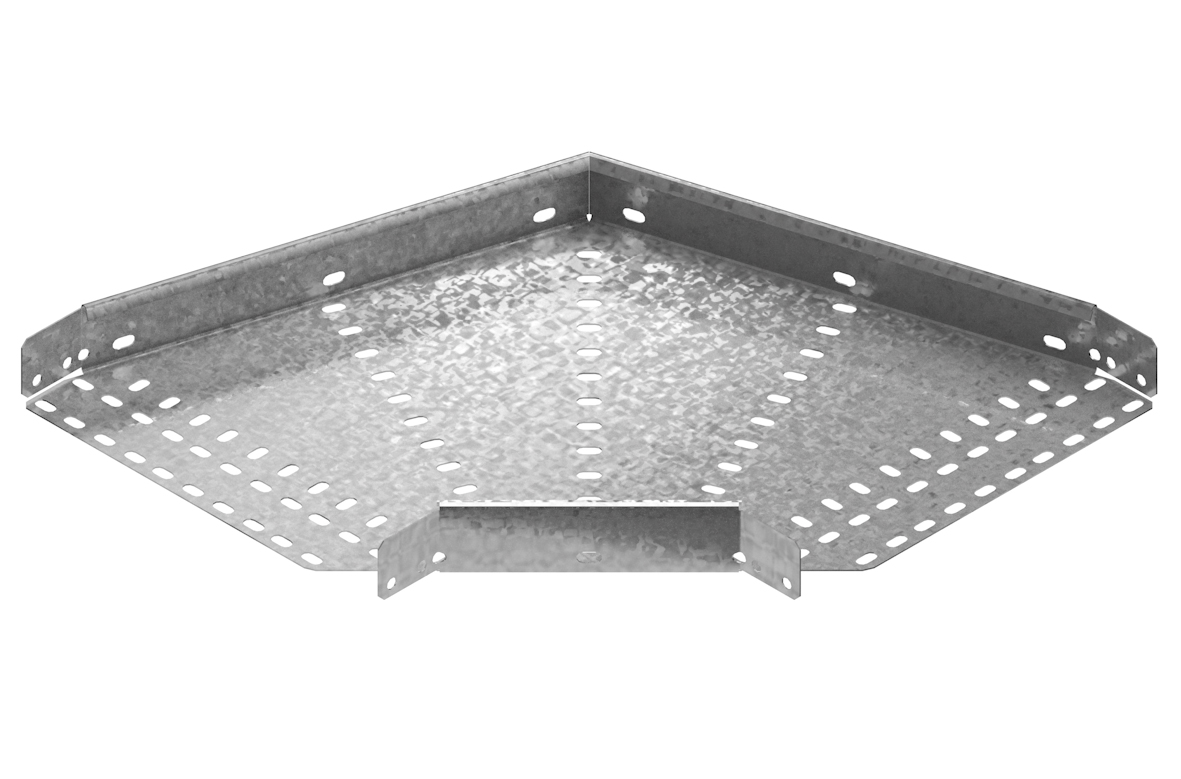

90º Flat Bends

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

90 Degree Flat Bends Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
50 CTFB12/0050PG90 CTFB25/0050PG90 N/A
75 CTFB12/0075PG90 CTFB25/0075PG90 CTFB50/0075PG90
100 CTFB12/0100PG90 CTFB25/0100PG90 CTFB50/0100PG90
150 CTFB12/0150PG90 CTFB25/0150PG90 CTFB50/0150PG90
225 CTFB12/0225PG90 CTFB25/0225PG90 CTFB50/0225PG90
300 CTFB18/0300PG90 CTFB25/0300PG90 CTFB50/0300PG90
450 N/A CTFB25/0450PG90 CTFB50/0450PG90
600 N/A CTFB25/0600PG90 CTFB50/0600PG90
750 N/A N/A CTFB50/0750PG90
900 N/A N/A CTFB50/0900PG90

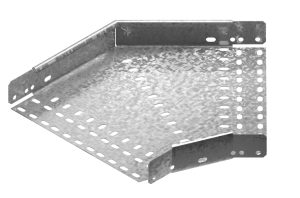

45º Flat Bends (made to order)

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

45 Degree Flat Bends (made to order) Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
50 CTFB12/0050PG45 CTFB25/0050PG45 N/A
75 CTFB12/0075PG45 CTFB25/0075PG45 CTFB50/0075PG45
100 CTFB12/0100PG45 CTFB25/0100PG45 CTFB50/0100PG45
150 CTFB12/0150PG45 CTFB25/0150PG45 CTFB50/0150PG45
225 CTFB12/0225PG45 CTFB25/0225PG45 CTFB50/0225PG45
300 CTFB18/0300PG45 CTFB25/0300PG45 CTFB50/0300PG45
450 N/A CTFB25/0450PG45 CTFB50/0450PG45
600 N/A CTFB25/0600PG45 CTFB50/0600PG45
750 N/A N/A CTFB50/0750PG45
900 N/A N/A CTFB50/

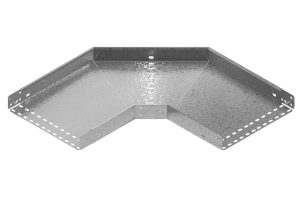

Adjustable Flat Bends (made to order)

(Not available for light duty cable tray)

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Adjustable Flat Bends (made to order) Cable Tray

Width mm Medium Duty Heavy Duty
50 CTAB25/0050PG N/A
75 CTAB25/0075PG CTAB50/0075PG
100 CTAB25/0100PG CTAB50/0100PG
150 CTAB25/0150PG CTAB50/0150PG
225 CTAB25/0225PG CTAB50/0225PG
300 CTAB25/0300PG CTAB50/0300PG
