Straight Length Covers - 3m long (made to order) Cable Tray

Straight Length Covers - 3m long (made to order) Cable TrayCovers

A wide range of closed and ventilated covers are available for the voestalpine Metsec cable tray system.

Materials and finishes available are mild steel pre galvanised as standard with mild steel hot dip galvanised after manufacture and stainless steel grade 1.4404 (316L) to order.

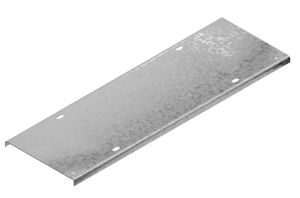

Straight Length Covers – 3m Long (made to order)

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Standard closed covers = CC, ventilated cover = CV

Includes 6 fixing clamps and fasteners

Straight Length Covers - 3m long (made to order) Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
50 CTSL12CV/050PG CTSL25CC/050PG N/A
75 CTSL12CV/075PG CTSL25CC/075PG CTSL50CC/075PG
100 CTSL12CV/100PG CTSL25CC/100PG CTSL50CC/100PG
150 CTSL12CV/150PG CTSL25CC/150PG CTSL50CC/150PG
225 CTSL12CV/225PG CTSL25CC/225PG CTSL50CC/225PG
300 CTSL18CV/300PG CTSL25CC/300PG CTSL50CC/300PG
450 N/A CTSL25CC/450PG CTSL50CC/450PG
600 N/A CTSL25CC/600PG CTSL50CC/600PG
750 N/A N/A CTSL50CC/750PG
900 N/A N/A CTSL50CC/900PG

*NB. Closed cover not available for 12mm and 18mm deep cable tray.

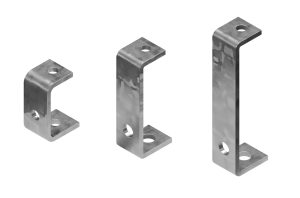

Extra Cover Clips

Finish: post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Standard closed covers = CC, ventilated cover = CV

Extra Cover Clips

Duty Standard Ventilated
Light N/A CTCCV18HDG
Medium CTCCC25HDG CTCCV25HDG
Heavy CTCCC50HDG CTCCV50HDG

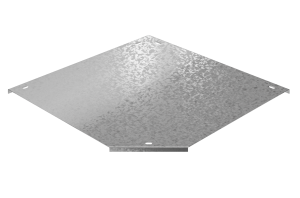

90º Flat Bends Covers (made to order)

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Standard closed covers = CC, ventilated cover = CV

Includes 5 fixing clamps and fasteners

90 degree Flat Bends Covers (made to order) Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
50 CTFB12CV/050PG90 CTFB25CC/050PG90 N/A
75 CTFB12CV/075PG90 CTFB25CC/075PG90 CTFB50CC/075PG90
100 CTFB12CV/100PG90 CTFB25CC/100PG90 CTFB50CC/100PG90
150 CTFB12CV/150PG90 CTFB25CC/150PG90 CTFB50CC/150PG90
225 CTFB12CV/225PG90 CTFB25CC/225PG90 CTFB50CC/225PG90
300 CTFB18CV/300PG90 CTFB25CC/300PG90 CTFB50CC/300PG90
450 N/A CTFB25CC/450PG90 CTFB50CC/450PG90
600 N/A CTFB25CC/600PG90 CTFB50CC/600PG90
750 N/A N/A CTFB50CC/750PG90
900 N/A N/A CTFB50CC/900PG90

*NB. Closed cover not available for 12mm and 18mm deep cable tray.

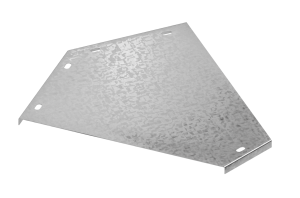

45º Flat Bends Covers (made to order)

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Standard closed covers = CC, ventilated cover = CV

Includes 5 fixing clamps and fasteners

45 Degree Flat Bend Covers (made to order) Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
50 CTFB12CV/050PG45 CTFB25CC/050PG45 N/A
75 CTFB12CV/075PG45 CTFB25CC/075PG45 CTFB50CC/075PG45
100 CTFB12CV/100PG45 CTFB25CC/100PG45 CTFB50CC/100PG45
150 CTFB12CV/150PG45 CTFB25CC/150PG45 CTFB50CC/150PG45
225 CTFB12CV/225PG45 CTFB25CC/225PG45 CTFB50CC/225PG45
300 CTFB18CV/300PG45 CTFB25CC/300PG45 CTFB50CC/300PG45
450 N/A CTFB25CC/450PG45 CTFB50CC/450PG45
600 N/A CTFB25CC/600PG45 CTFB50CC/600PG45
750 N/A N/A CTFB50CC/750PG45
900 N/A N/A CTFB50CC/900PG45

*NB. Closed cover not available for 12mm and 18mm deep cable tray.

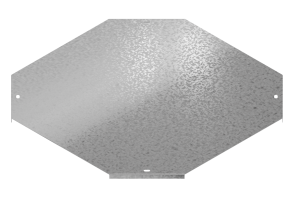

Crossover Covers (made to order)

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Standard closed covers = CC, ventilated cover = CV

Includes 4 fixing clamps and fasteners

Crossover Covers (made to order) Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
50 CTCO12CV/050PG CTCO25CC/050PG N/A
75 CTCO12CV/075PG CTCO25CC/075PG CTCO50CC/075PG
100 CTCO12CV/100PG CTCO25CC/100PG CTCO50CC/100PG
150 CTCO12CV/150PG CTCO25CC/150PG CTCO50CC/150PG
225 CTCO12CV/225PG CTCO25CC/225PG CTCO50CC/225PG
300 CTCO18CV/300PG CTCO25CC/300PG CTCO50CC/300PG
450 N/A CTCO25CC/450PG CTCO50CC/450PG
600 N/A CTCO25CC/600PG CTCO50CC/600PG
750 N/A N/A CTCO50CC/750PG
900 N/A N/A CTCO50CC/900PG

*NB. Closed cover not available for 12mm and 18mm deep cable tray.

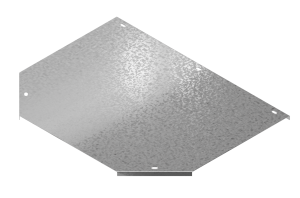

Equal Tee Covers (made to order)

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Standard closed covers = CC, ventilated cover = CV

Includes 5 fixing clamps and fasteners

Equal Tee Covers (made to order) Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
50 CTET12CV/050PG CTET25CC/050PG N/A
75 CTET12CV/075PG CTET25CC/075PG CTET50CC/075PG
100 CTET12CV/100PG CTET25CC/100PG CTET50CC/100PG
150 CTET12CV/150PG CTET25CC/150PG CTET50CC/150PG
225 CTET12CV/225PG CTET25CC/225PG CTET50CC/225PG
300 CTET18CV/300PG CTET25CC/300PG CTET50CC/300PG
450 N/A CTET25CC/450PG CTET50CC/450PG
600 N/A CTET25CC/600PG CTET50CC/600PG
750 N/A N/A CTET50CC/750PG
900 N/A N/A CTET50CC/900PG

*NB. Closed cover not available for 12mm and 18mm deep cable tray.

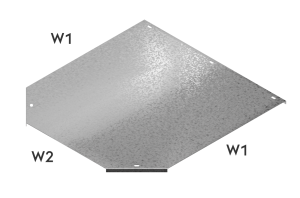

Unequal Tee Covers (made to order)

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Standard closed covers = CC, ventilated cover = CV

Includes 5 fixing clamps and fasteners

How to generate the part number – CTUT (cover type) (depth)/W1/W2(finish)

Example – CTUT CC 25/300/150PG

Table below shows a complete list of W1 and W2 combinations.

Unequal Tee Covers (made to order) Cable Tray

W1 W2
50 75, 100, 150, 225, 300, 450, 600, 750, 900
75 50, 100, 150, 225, 300, 450, 600, 750, 900
100 50, 75, 150, 225, 300, 450, 600, 750, 900
150 50, 75, 100, 225, 300, 450, 600, 750, 900
225 50, 75, 100, 150, 300, 450, 600, 750, 900
300 50, 75, 100, 150, 225, 450, 600, 750, 900
450 50, 75, 100, 150, 225, 300, 600, 750, 900
600 50, 75, 100, 150, 225, 300, 450, 750, 900
750 50, 75, 100, 150, 225, 300, 450, 600, 900
900 50, 75, 100, 150, 225, 300, 450, 600, 750

*NB. Closed cover not available for 12mm and 18mm deep cable tray.

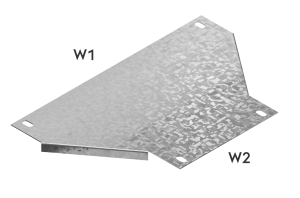

Reducer Covers (made to order)

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Standard closed covers = CC, ventilated cover = CV

Includes 4 fixing clamps and fasteners

Reducer Covers (made to order) Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
W1 W2
75 50 CTSRCV12/0075/0050PG CTSRCC25/0075/0050PG N/A
100 50 CTSRCV12/0100/0050PG CTSRCC25/0100/0050PG N/A
150 50 CTSRCV12/0150/0050PG CTSRCC25/0150/0050PG N/A
225 50 CTSRCV12/0225/0050PG CTSRCC25/0225/0050PG N/A
300 50 N/A CTSRCC25/0300/0050PG N/A
450 50 N/A CTSRCC25/0450/0050PG N/A
600 50 N/A CTSRCC25/0600/0050PG N/A
750 50 N/A N/A N/A
900 50 N/A N/A N/A
100 75 CTSRCV12/0100/0075PG CTSRCC25/0100/0075PG CTSRCC50/0100/0075PG
150 75 CTSRCV12/0150/0075PG CTSRCC25/0150/0075PG CTSRCC50/0150/0075PG
225 75 CTSRCV12/0225/0075PG CTSRCC25/0225/0075PG CTSRCC50/0225/0075PG
300 75 CTSRCV18/0300/0075PG CTSRCC25/0300/0075PG CTSRCC50/0300/0075PG
450 75 N/A CTSRCC25/0450/0075PG CTSRCC50/0450/0075PG
600 75 N/A CTSRCC25/0600/0075PG CTSRCC50/0600/0075PG
750 75 N/A N/A CTSRCC50/0750/0075PG
900 75 N/A N/A CTSRCC50/0900/0075PG
150 100 CTSRCV12/0150/0100PG CTSRCC25/0150/0100PG CTSRCC50/0150/0100PG
225 100 CTSRCV12/0225/0100PG CTSRCC25/0225/0100PG CTSRCC50/0225/0100PG
300 100 CTSRCV18/0300/0100PG CTSRCC25/0300/0100PG CTSRCC50/0300/0100PG
450 100 N/A CTSRCC25/0450/0100PG CTSRCC50/0450/0100PG
600 100 N/A CTSRCC25/0600/0100PG CTSRCC50/0600/0100PG
750 100 N/A N/A CTSRCC50/0750/0100PG
900 100 N/A N/A CTSRCC50/0900/0100PG
225 150 CTSRCV12/0225/0150PG CTSRCC25/0225/0150PG CTSRCC50/0225/0150PG
300 150 CTSRCV18/0300/0150PG CTSRCC25/0300/0150PG CTSRCC50/0300/0150PG
450 150 N/A CTSRCC25/0450/0150PG CTSRCC50/0450/0150PG
600 150 N/A CTSRCC25/0600/0150PG CTSRCC50/0600/0150PG
750 150 N/A N/A CTSRCC50/0750/0150PG
900 150 N/A N/A CTSRCC50/0900/0150PG
300 225 CTSRCV18/0300/0225PG CTSRCC25/0300/0225PG CTSRCC50/0300/0225PG
450 225 N/A CTSRCC25/0450/0225PG CTSRCC50/0450/0225PG
600 225 N/A CTSRCC25/0600/0225PG CTSRCC50/0600/0225PG
750 225 N/A N/A CTSRCC50/0750/0225PG
900 225 N/A N/A CTSRCC50/0900/0225PG
450 300 N/A CTSRCC25/0450/0300PG CTSRCC50/0450/0300PG
600 300 N/A CTSRCC25/0600/0300PG CTSRCC50/0600/0300PG
750 300 N/A N/A CTSRCC50/0750/0300PG
900 300 N/A N/A CTSRCC50/0900/0300PG
600 450 N/A CTSRCC25/0600/0450PG CTSRCC50/0600/0450PG
750 450 N/A N/A CTSRCC50/0750/0450PG
900 450 N/A N/A CTSRCC50/0900/0450PG
750 600 N/A N/A CTSRCC50/0750/0600PG
900 600 N/A N/A CTSRCC50/0900/0600PG
900 750 N/A N/A CTSRCC50/0900/0750PG

*NB. Closed cover not available for 12mm and 18mm deep cable tray.

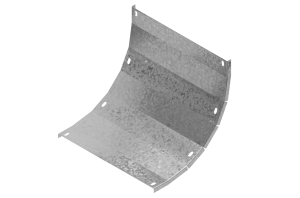

90º Internal Riser Covers (made to order)

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Standard closed covers = CC, ventilated cover = CV

Includes 8 fixing clamps and fasteners

90 Degree Internal Riser Covers (made to order) Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
50 CTIR12CV/0050PG90 CTIR25CC/0050PG90 N/A
75 CTIR12CV/0075PG90 CTIR25CC/0075PG90 CTIR50CC/0075PG90
100 CTIR12CV/0100PG90 CTIR25CC/0100PG90 CTIR50CC/0100PG90
150 CTIR12CV/0150PG90 CTIR25CC/0150PG90 CTIR50CC/0150PG90
225 CTIR12CV/0225PG90 CTIR25CC/0225PG90 CTIR50CC/0225PG90
300 CTIR18CV/0300PG90 CTIR25CC/0300PG90 CTIR50CC/0300PG90
450 N/A CTIR25CC/0450PG90 CTIR50CC/0450PG90
600 N/A CTIR25CC/0600PG90 CTIR50CC/0600PG90
750 N/A N/A CTIR50CC/0750PG90
900 N/A N/A CTIR50CC/0900PG90

*NB. Closed cover not available for 12mm and 18mm deep cable tray.

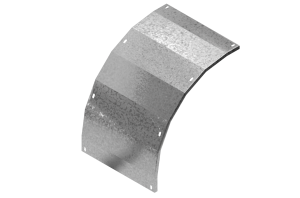

90º External Riser Covers (made to order)

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Standard closed covers = CC, ventilated cover = CV

Includes 8 fixing clamps and fasteners

90 Degree External Riser Covers (made to order) Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
50 CTER12CV/0050PG90 CTER25CC/0050PG90 N/A
75 CTER12CV/0075PG90 CTER25CC/0075PG90 CTER50CC/0075PG90
100 CTER12CV/0100PG90 CTER25CC/0100PG90 CTER50CC/0100PG90
150 CTER12CV/0150PG90 CTER25CC/0150PG90 CTER50CC/0150PG90
225 CTER12CV/0225PG90 CTER25CC/0225PG90 CTER50CC/0225PG90
300 CTER18CV/0300PG90 CTER25CC/0300PG90 CTER50CC/0300PG90
450 N/A CTER25CC/0450PG90 CTER50CC/0450PG90
600 N/A CTER25CC/0600PG90 CTER50CC/0600PG90
750 N/A N/A CTER50CC/0750PG90
900 N/A N/A CTER50CC/0900PG90

*NB. Closed cover not available for 12mm and 18mm deep cable tray.

Contact Information

voestalpine Metsec plc Cable Management

Tel: +44 (0) 121 601 6085

Fax: +44 (0) 121 601 6177
