Stand Off Brackets - Right Cable Tray

Stand Off Brackets - Left Cable TrayThere are a wide range of accessories for the Metsec cable tray system, most are available in a range of materials including mild steel pre galvanised, mild steel hot dip galvanised and stainless steel grade 1.4404 (316L).

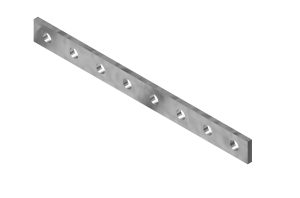

Medium Duty Straight Couplers

Only required for straight tray to straight tray connection – medium duty range

Finish: post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Medium Duty Straight Couplers Cable Tray

Sold in pairs (fasteners excluded)
CTSC25HDGPR

Not available in pre galvanised

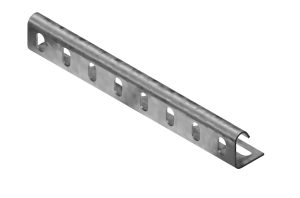

Medium Duty Wrap Over Couplers

Only required for straight tray to straight tray connection – medium duty range

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Medium Duty Wrap Over Couplers Cable Tray

Sold in pairs (fasteners excluded)
CTC25PGPR

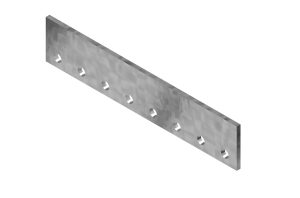

Heavy Duty Straight Couplers

Only required for straight tray to straight tray connection – heavy duty range

Finish: post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Heavy Duty Straight Couplers Cable Tray

Sold in pairs (fasteners excluded)
CTSC50HDGPR

Not available in pre galvanised

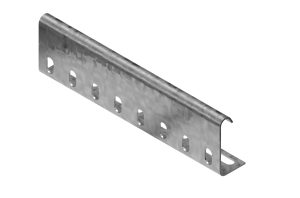

Heavy Duty Wrap Over Couplers

Only required for straight tray to straight tray connection – heavy duty range

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Heavy Duty Wrap Over Couplers Cable Tray

Sold in pairs (fasteners excluded)
CTC50PGPR

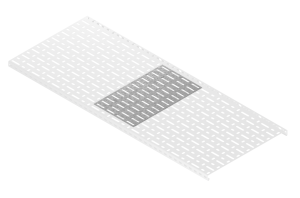

Fishplate Couplers

Always required for cut lengths of light duty tray

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Fishplate Couplers Cable Tray

Width mm
50 CTFP050PG,
75 CTFP075PG
100 CTFP100PG
150 CTFP150PG
225 CTFP225PG
300 CTFP300PG
450 CTFP450PG
600 CTFP600PG
750 CTFP750PG
900 CTFP900PG

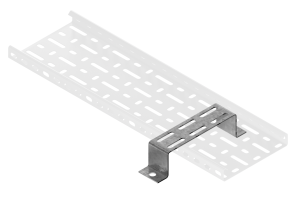

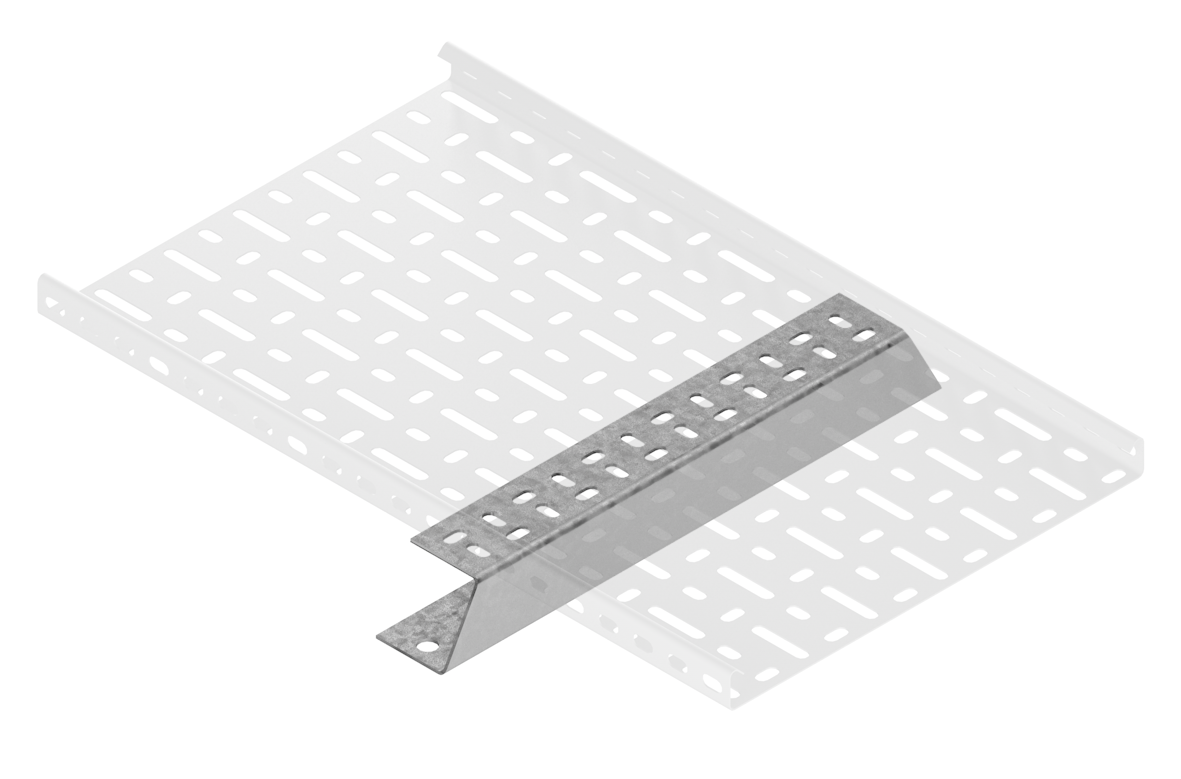

Stand Off Brackets

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Stand Off Brackets - Right Cable Tray Stand Off Brackets - Left Cable Tray

Width mm
50 CTSO050PG
75 CTSO075PG
100 CTSO100PG
150 CTSO150PG
225 CTSO225PG
300 CTSO300PG
450 CTSO450PG
600 CTSO600PG
750 CTSO750PG
900 CTSO900PG

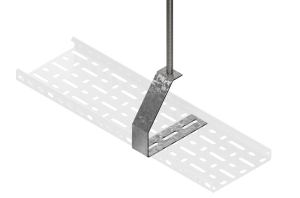

Hanger Brackets

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Hanger Brackets Cable Tray

Width mm
50 CTHB050/PG
75 CTHB075/PG
100 CTHB100/PG
150 CTHB150/PG

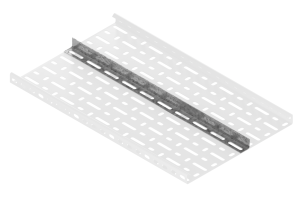

Straight Divider – 3m

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Straight Divider - 3m Cable Tray

Tray Depth mm
25 CTDI025PG3
50 CTDI050PG3

Earthing Straps

Finish: electro-tinned

Use M6 x 12 roofing bolts

Earthing Straps - Cable Tray

Supplied in packs of 10
CT/ES100 Copper braid electro tinned 4mm2, 100mm long (use M6x12 Roofing Bolts)

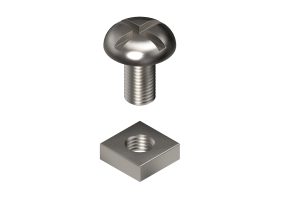

Roofing Bolts and Nuts

Finish: BZP as standard, stainless steel grade 1.4404 (316L) = SS,

post-galvanised = HDG

M6 x 12 roofing bolts

Roofing Bolts and Nuts

Supplied in packs of 100
M06X12RB
