Parapet posts in situ assembly

Parapet Posts

Parapet posts can be constructed from back to back C-sections to form a compound member complete with all cleats.

These can be supplied as single components for on-site assembly before lifting into position. C-section compound parapet posts offer significant cost savings against conventional hot rolled steelwork.

Parapet posts are fixed directly to the columns with 8mm stand off packs to maintain the sheeting line.

All necessary sheeting rails can be connected to the parapet post by using inset rail cleats (by others or to special order) fitted to the compound section prior to lifting into position.

For further guidance on the use and applications of C-section parapet posts, please consult our design department.

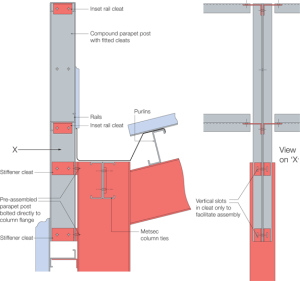

Pre-assembled by others

parapet posts pre assembled

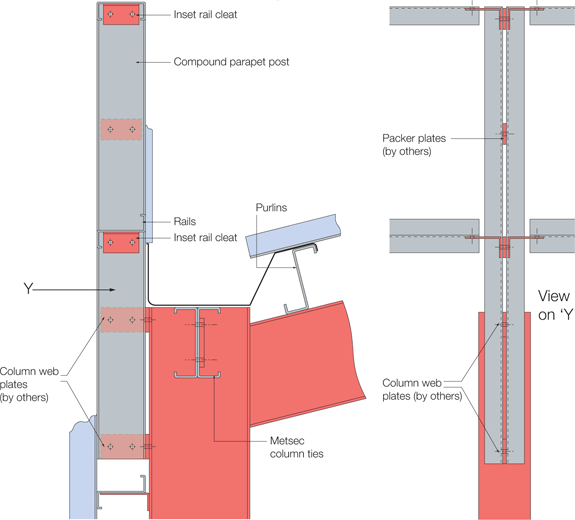

In-situ assembly

Parapet posts in situ assembly
