Metsec

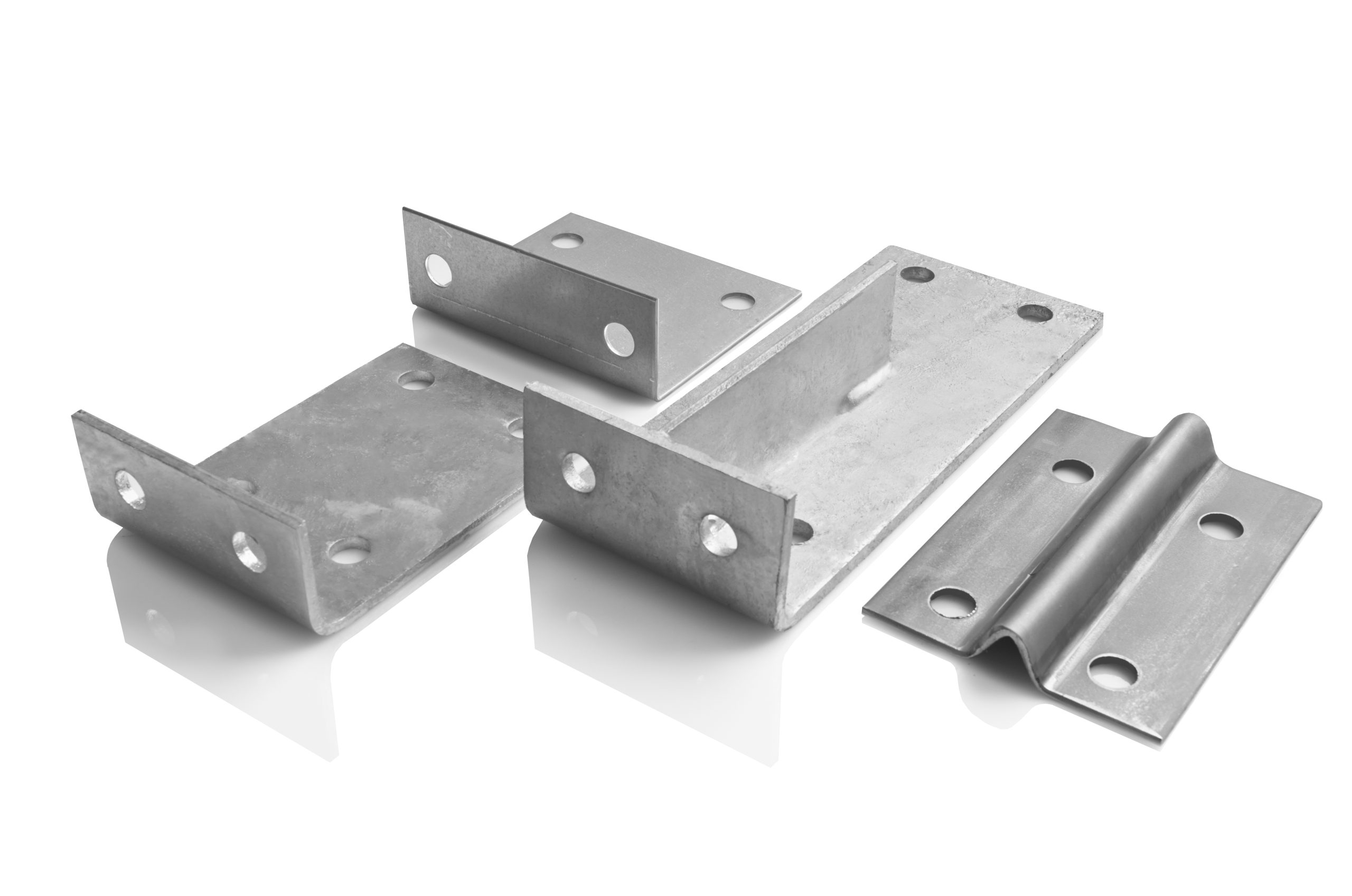

Metsec C-section compound column ties offer significant economic advantages from initial purchase through to on site installation.

Supplied as single components, C-sections are installed on site to form a compound back-to-back member and produce excellent strength to weight characteristics.

The selection of C-sections and general design guidance is determined from the MetSPEC design software. Th MetSPEC 14 software can be downloaded at the bottom of this page.

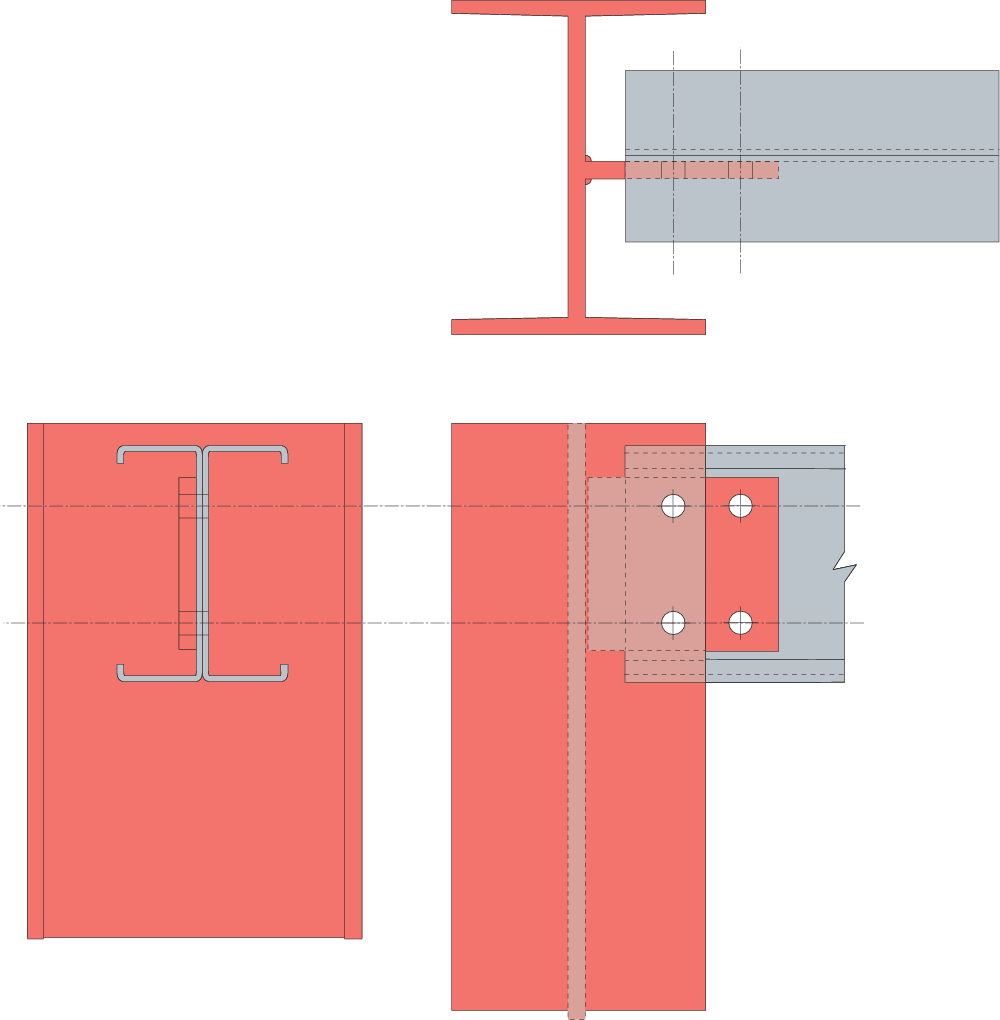

End Connection Details

end connection details

Download our purlins technical manual for more information.
