Tees

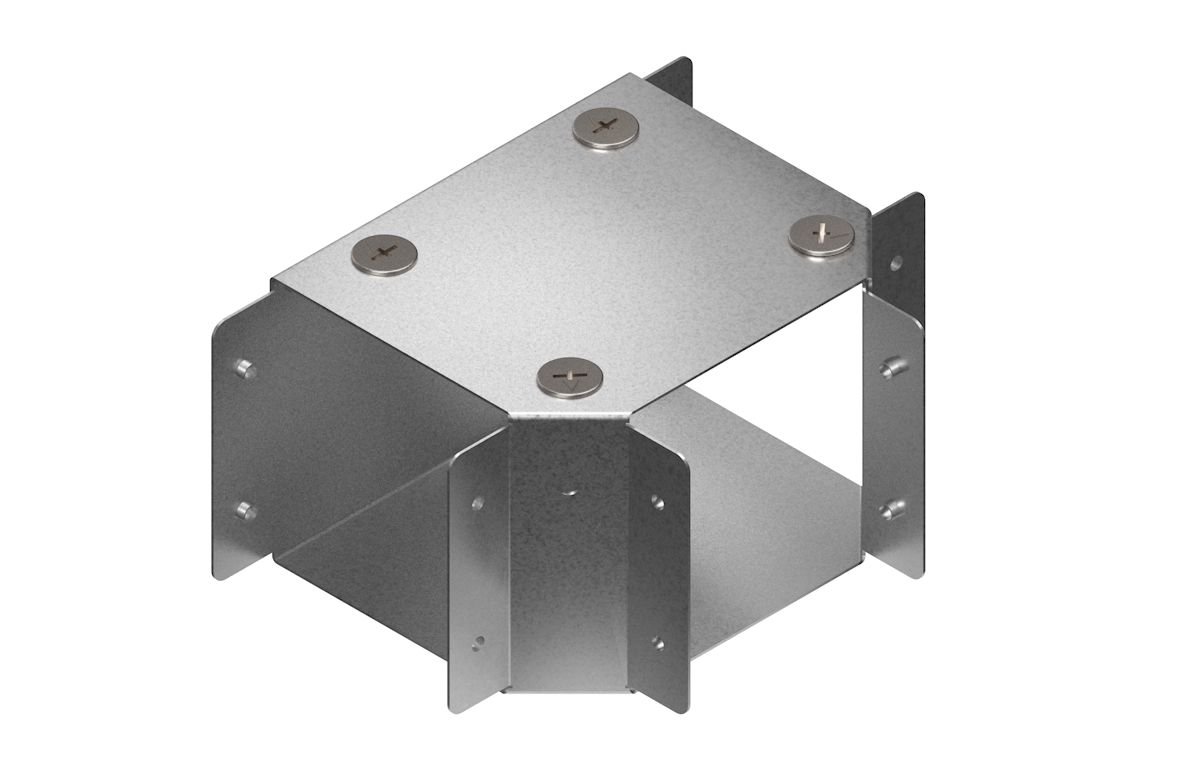

Tee with top lid and gusset

Fixing Options: Turnbuckle type e.g. TTT/100/100/PG/G
Screw fix type – add “S” after the first T e.g. TSTT/100/100/PG/G
Tamper proof type – add “M” after the first T e.g. TMTT/100/100/PG/G

Width mm	50mm Deep	75mm Deep	100mm Deep	150mm Deep	225mm Deep	300mm Deep
50	TTT/050/050/ PG/G	N/A	N/A	N/A	N/A	N/A
75	TTT/075/050/ PG/G	TTT/075/075/ PG/G	N/A	N/A	N/A	N/A
100	TTT/100/050/ PG/G	TTT/100/075/ PG/G	TTT/100/100/ PG/G	N/A	N/A	N/A
150	TTT/150/050/ PG/G	TTT/150/075/ PG/G	TTT/150/100/ PG/G	TTT/150/150/ PG/G	N/A	N/A
225	TTT/225/050/ PG/G	TTT/225/075/ PG/G	TTT/225/100/ PG/G	TTT/225/150/ PG/G	TTT/225/225/ PG/G	N/A
300	TTT/300/050/ PG/G	TTT/300/075/ PG/G	TTT/300/100/ PG/G	TTT/300/150/ PG/G	TTT/300/225/ PG/G	TTT/300/300/ PG/G

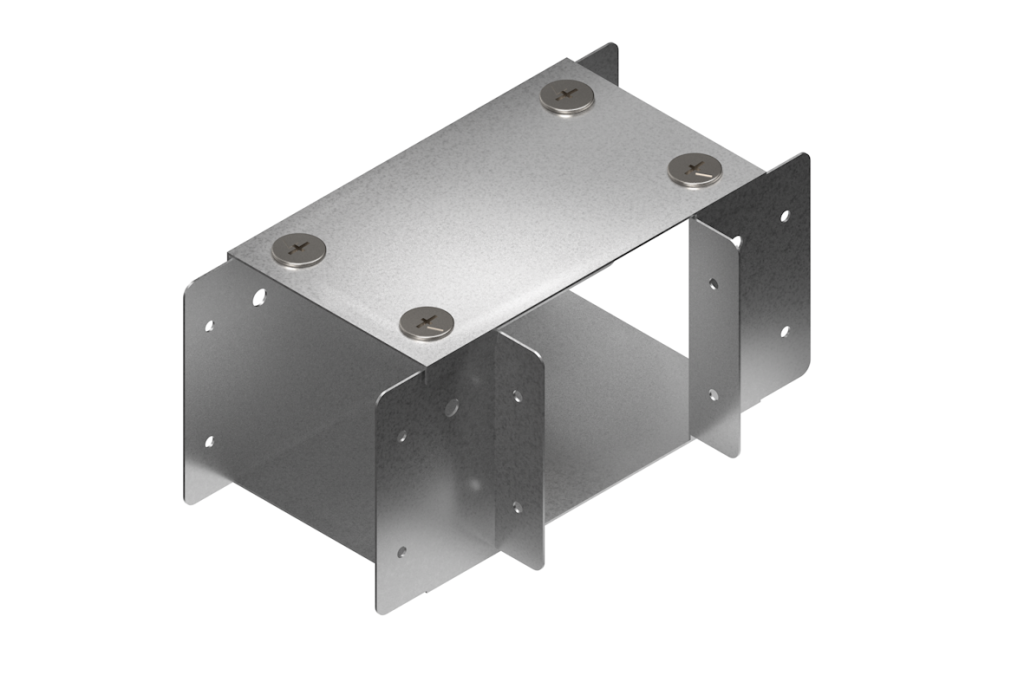

Tee with top lid and square

Fixing Options: Turnbuckle type e.g. TTT/100/100/PG/S
Screw fix type – add “S” after the first T e.g. TSTT/100/100/PG/S
Tamper proof type – add “M” after the first T e.g. TMTT/100/100/PG/S

Width mm	50mm Deep	75mm Deep	100mm Deep	150mm Deep	225mm Deep	300mm Deep
50	TTT/050/050/ PG/S	N/A	N/A	N/A	N/A	N/A
75	TTT/075/050/ PG/S	TTT/075/075/ PG/S	N/A	N/A	N/A	N/A
100	TTT/100/050/ PG/S	TTT/100/075/ PG/S	TTT/100/100/ PG/S	N/A	N/A	N/A
150	TTT/150/050/ PG/S	TTT/150/075/ PG/S	TTT/150/100/ PG/S	TTT/150/150/ PG/S	N/A	N/A
225	TTT/225/050/ PG/S	TTT/225/075/ PG/S	TTT/225/100/ PG/S	TTT/225/150/ PG/S	TTT/225/225/ PG/S	N/A
300	TTT/300/050/ PG/S	TTT/300/075/ PG/S	TTT/300/100/ PG/S	TTT/300/150/ PG/S	TTT/300/225/ PG/S	TTT/300/300/ PG/S

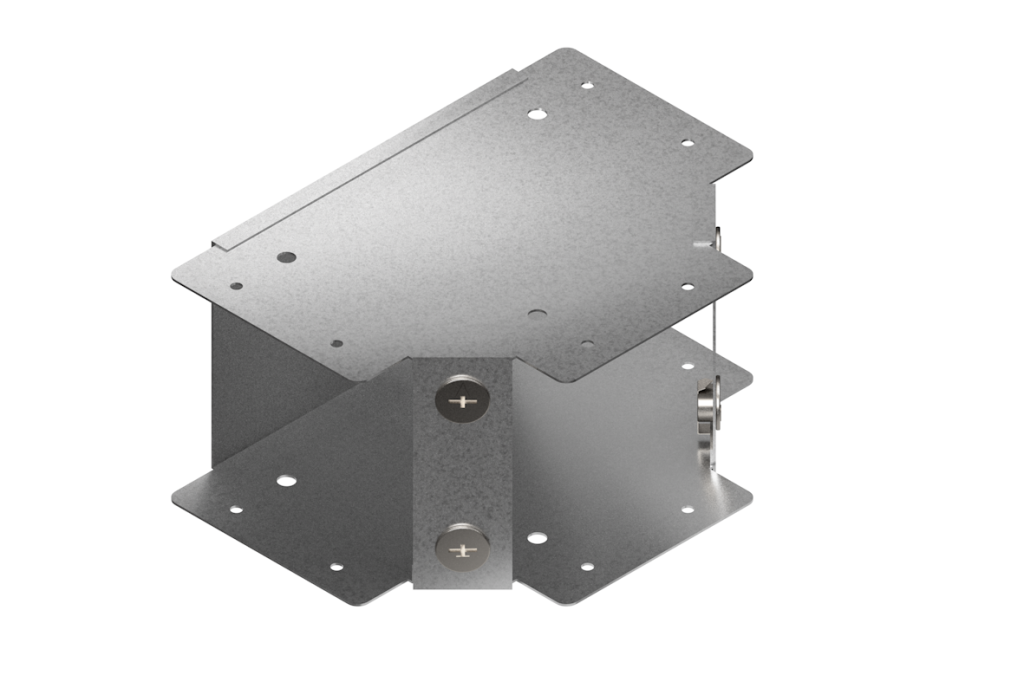

Tee with inside lid and gusset

Fixing Options: Turnbuckle type e.g. TIT/100/100/PG/G
Screw fix type – add “S” after the first T e.g. TSIT/100/100/PG/G
Tamper proof type – add “M” after the first T e.g. TMIT/100/100/PG/G

Width mm	50mm Deep	75mm Deep	100mm Deep	150mm Deep	225mm Deep	300mm Deep
50	TIT/050/050/ PG/G	N/A	N/A	N/A	N/A	N/A
75	TIT/075/050/ PG/G	TIT/075/075/ PG/G	N/A	N/A	N/A	N/A
100	TIT/100/050/ PG/G	TIT/100/075/ PG/G	TIT/100/100/ PG/G	N/A	N/A	N/A
150	TIT/150/050/ PG/G	TIT/150/075/ PG/G	TIT/150/100/ PG/G	TIT/150/150/ PG/G	N/A	N/A
225	TIT/225/050/ PG/G	TIT/225/075/ PG/G	TIT/225/100/ PG/G	TIT/225/150/ PG/G	TIT/225/225/ PG/G	N/A
300	TIT/300/050/ PG/G	TIT/300/075/ PG/G	TIT/300/100/ PG/G	TIT/300/150/ PG/G	TIT/300/225/ PG/G	TIT/300/300/ PG/G

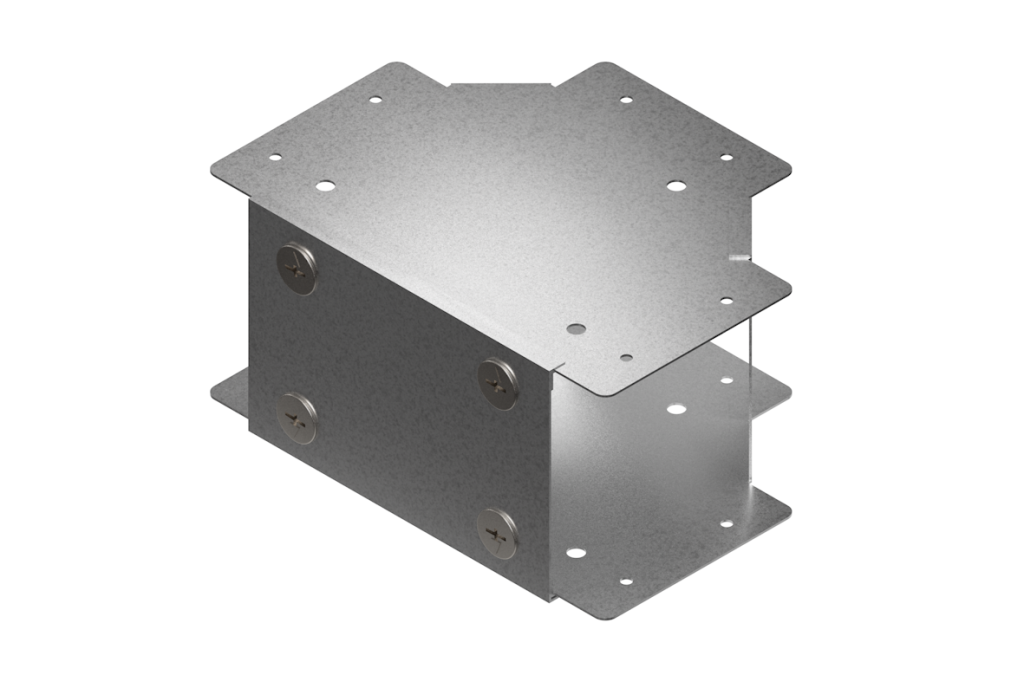

Tee with outside lid and gusset

Fixing Options: Turnbuckle type e.g. TOT/100/100/PG/G
Screw fix type – add “S” after the first T e.g. TSOT/100/100/PG/G
Tamper proof type – add “M” after the first T e.g. TMOT/100/100/PG/G

Width mm	50mm Deep	75mm Deep	100mm Deep	150mm Deep	225mm Deep	300mm Deep
50	TOT/050/050/ PG/G	N/A	N/A	N/A	N/A	N/A
75	TOT/075/050/ PG/G	TOT/075/075/ PG/G	N/A	N/A	N/A	N/A
100	TOT/100/050/ PG/G	TOT/100/075/ PG/G	TOT/100/100/ PG/G	N/A	N/A	N/A
150	TOT/150/050/ PG/G	TOT/150/075/ PG/G	TOT/150/100/ PG/G	TOT/150/150/ PG/G	N/A	N/A
225	TOT/225/050/ PG/G	TOT/225/075/ PG/G	TOT/225/100/ PG/G	TOT/225/150/ PG/G	TOT/225/225/ PG/G	N/A
300	TOT/300/050/ PG/G	TOT/300/075/ PG/G	TOT/300/100/ PG/G	TOT/300/150/ PG/G	TOT/300/225/ PG/G	TOT/300/300/ PG/G

Crossovers & Reducers

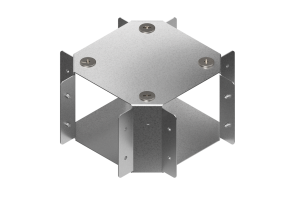

Crossovers

Fixing Options: Turnbuckle type e.g. TCO/100/100/PG/G
Screw fix type – add “S” after the first T e.g. TSCO/100/100/PG/G
Tamper proof type – add “M” after the first T e.g. TMCO/100/100/PG/G

Width mm	50mm Deep	75mm Deep	100mm Deep	150mm Deep	225mm Deep	300mm Deep
50	TCO/050/050/ PG/G	N/A	N/A	N/A	N/A	N/A
75	TCO/075/050/ PG/G	TCO/075/075/ PG/G	N/A	N/A	N/A	N/A
100	TCO/100/050/ PG/G	TCO/100/075/ PG/G	TCO/100/100/ PG/G	N/A	N/A	N/A
150	TCO/150/050/ PG/G	TCO/150/075/ PG/G	TCO/150/100/ PG/G	TCO/150/150/ PG/G	N/A	N/A
225	TCO/225/050/ PG/G	TCO/225/075/ PG/G	TCO/225/100/ PG/G	TCO/225/150/ PG/G	TCO/225/225/ PG/G	N/A
300	TCO/300/050/ PG/G	TCO/300/075/ PG/G	TCO/300/100/ PG/G	TCO/300/150/ PG/G	TCO/300/225/ PG/G	TCO/300/300/ PG/G
