90 Degree Bend with top lid and gusset Cable Trunking

Bends

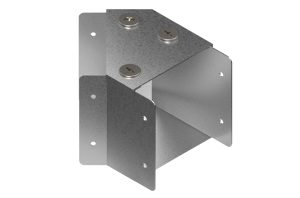

90 Degree Bend with top lid and gusset Cable Trunking45° & 90° bends for voestalpine Metsec cable trunking systems are available in sizes from 50mm x 50mm to 225mm x 225mm. Lids are attached by turnbuckle fixings, with screwfix and tamperproof fixings also available, and a choice of top, inside or outside location.

Materials and finishes available are mild steel pre galvanised as standard and powder coated to order.

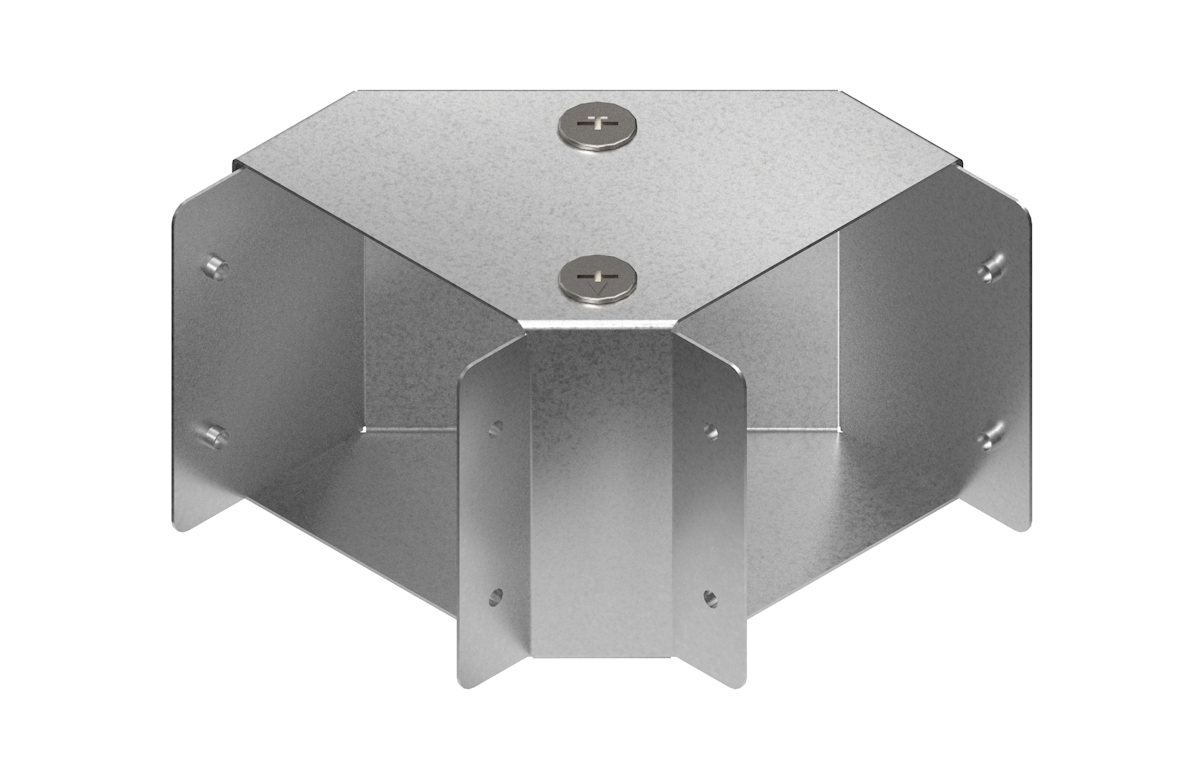

90º Bend with Top Lid and Gusset

90 Degree Bend with top lid and gusset Cable Trunking

Fixing Options

  • Turnbuckle type e.g. TTB/100/100/PG/G90
  • Screwfix type – add “S” after the first T e.g. TSTB/100/100/PG/G90
  • Tamperproof type – add “M” after the first T e.g. TMTB/100/100/PG/G90
Width mm 50mm
Deep		 75mm
Deep		 100mm
Deep		 150mm
Deep		 225mm
Deep		 300mm
Deep
50 TTB/050/050/PG/G90 N/A N/A N/A N/A N/A
75 TTB/075/050/PG/G90 TTB/075/075/PG/G90 N/A N/A N/A N/A
100 TTB/100/050/PG/G90 TTB/100/075/PG/G90 TTB/100/100/PG/G90 N/A N/A N/A
150 TTB/150/050/PG/G90 TTB/150/075/PG/G90 TTB/150/100/PG/G90 TTB/150/150/PG/G90 N/A N/A
225 TTB/225/050/PG/G90 TTB/225/075/PG/G90 TTB/225/100/PG/G90 TTB/225/150/PG/G90 TTB/225/225/PG/G90 N/A
300 TTB/300/050/PG/G90 TTB/300/075/PG/G90 TTB/300/100/PG/G90 TTB/300/150/PG/G90 TTB/300/225/PG/G90 TTB/300/300/PG/G90

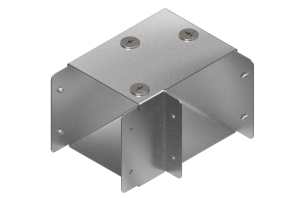

90º Bend with Top Lid and Square

90 Degree bend with top lid and square

Fixing Options

  • Turnbuckle type e.g. TTB/100/100/PG/S90
  • Screwfix type – add “S” after the first T e.g. TSTB/100/100/PG/S90
  • Tamperproof type – add “M” after the first T e.g. TMTB/100/100/PG/S90
Width mm 50mm
Deep		 75mm
Deep		 100mm
Deep		 150mm
Deep		 225mm
Deep		 300mm
Deep
50 TTB/050/050/PG/S90 N/A N/A N/A N/A N/A
75 TTB/075/050/PG/S90 TTB/075/075/PG/S90 N/A N/A N/A N/A
100 TTB/100/050/PG/S90 TTB/100/075/PG/S90 TTB/100/100/PG/S90 N/A N/A N/A
150 TTB/150/050/PG/S90 TTB/150/075/PG/S90 TTB/150/100/PG/S90 TTB/150/150/PG/S90 N/A N/A
225 TTB/225/050/PG/S90 TTB/225/075/PG/S90 TTB/225/100/PG/S90 TTB/225/150/PG/S90 TTB/225/225/PG/S90 N/A
300 TTB/300/050/PG/S90 TTB/300/075/PG/S90 TTB/300/100/PG/S90 TTB/300/150/PG/S90 TTB/300/225/PG/S90 TTB/300/300/PG/S90

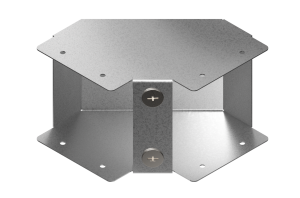

90º Bend with Inside Lid and Gusset

90 Degree bend with inside Lid and gusset

Fixing Options

  • Turnbuckle type e.g. TIB/100/100/PG/G90
  • Screwfix type – add “S” after the first T e.g. TSIB/100/100/PG/G90
  • Tamperproof type – add “M” after the first T e.g. TMIB/100/100/PG/G90
Width mm 50mm
Deep		 75mm
Deep		 100mm
Deep		 150mm
Deep		 225mm
Deep		 300mm
Deep
50 TIB/050/050/PG/G90 N/A N/A N/A N/A N/A
75 TIB/075/050/PG/G90 TIB/075/075/PG/G90 N/A N/A N/A N/A
100 TIB/100/050/PG/G90 TIB/100/075/PG/G90 TIB/100/100/PG/G90 N/A N/A N/A
150 TIB/150/050/PG/G90 TIB/150/075/PG/G90 TIB/150/100/PG/G90 TIB/150/150/PG/G90 N/A N/A
225 TIB/225/050/PG/G90 TIB/225/075/PG/G90 TIB/225/100/PG/G90 TIB/225/150/PG/G90 TIB/225/225/PG/G90 N/A
300 TIB/300/050/PG/G90 TIB/300/075/PG/G90 TIB/300/100/PG/G90 TIB/300/150/PG/G90 TIB/300/225/PG/G90 TIB/300/300/PG/G90

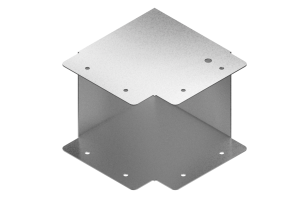

90º Bend with Inside Lid and Square

90 Degree bend with inside lid and square

Fixing Options

  • Turnbuckle type e.g. TIB/100/100/PG/S90
  • Screwfix type – add “S” after the first T e.g. TSIB/100/100/PG/S90
  • Tamperproof type – add “M” after the first T e.g. TMIB/100/100/PG/S90
Width mm 50mm
Deep		 75mm
Deep		 100mm
Deep		 150mm
Deep		 225mm
Deep		 300mm
Deep
50 TIB/050/050/PG/S90 N/A N/A N/A N/A N/A
75 TIB/075/050/PG/S90 TIB/075/075/PG/S90 N/A N/A N/A N/A
100 TIB/100/050/PG/S90 TIB/100/075/PG/S90 TIB/100/100/PG/S90 N/A N/A N/A
150 TIB/150/050/PG/S90 TIB/150/075/PG/S90 TIB/150/100/PG/S90 TIB/150/150/PG/S90 N/A N/A
225 TIB/225/050/PG/S90 TIB/225/075/PG/S90 TIB/225/100/PG/S90 TIB/225/150/PG/S90 TIB/225/225/PG/S90 N/A
300 TIB/300/050/PG/S90 TIB/300/075/PG/S90 TIB/300/100/PG/S90 TIB/300/150/PG/S90 TIB/300/225/PG/S90 TIB/300/300/PG/S90

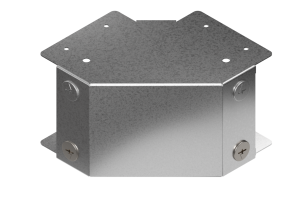

90º Bend with Outside Lid and Gusset

90 Degree bend with outside lid and gusset

Fixing Options

  • Turnbuckle type e.g. TOB/100/100/PG/G90
  • Screwfix type – add “S” after the first T e.g. TSOB/100/100/PG/G90
  • Tamperproof type – add “M” after the first T e.g. TMOB/100/100/PG/G90
Width mm 50mm
Deep		 75mm
Deep		 100mm
Deep		 150mm
Deep		 225mm
Deep		 300mm
Deep
50 TOB/050/050/PG/G90 N/A N/A N/A N/A N/A
75 TOB/075/050/PG/G90 TOB/075/075/PG/G90 N/A N/A N/A N/A
100 TOB/100/050/PG/G90 TOB/100/075/PG/G90 TOB/100/100/PG/G90 N/A N/A N/A
150 TOB/150/050/PG/G90 TOB/150/075/PG/G90 TOB/150/100/PG/G90 TOB/150/150/PG/G90 N/A N/A
225 TOB/225/050/PG/G90 TOB/225/075/PG/G90 TOB/225/100/PG/G90 TOB/225/150/PG/G90 TOB/225/225/PG/G90 N/A
300 TOB/300/050/PG/G90 TOB/300/075/PG/G90 TOB/300/100/PG/G90 TOB/300/150/PG/G90 TOB/300/225/PG/G90 TOB/300/300/PG/G90

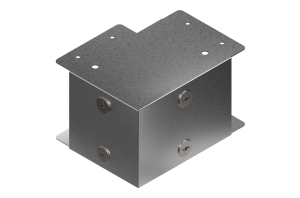

90º Bend with Outside Lid and Square

90 Degree bend with outside lid and square

Fixing Options

  • Turnbuckle type e.g. TOB/100/100/PG/S90
  • Screwfix type – add “S” after the first T e.g. TSOB/100/100/PG/S90
  • Tamperproof type – add “M” after the first T e.g. TMOB/100/100/PG/S90
Width mm 50mm
Deep		 75mm
Deep		 100mm
Deep		 150mm
Deep		 225mm
Deep		 300mm
Deep
50 TOB/050/050/PG/S90 N/A N/A N/A N/A N/A
75 TOB/075/050/PG/S90 TOB/075/075/PG/S90 N/A N/A N/A N/A
100 TOB/100/050/PG/S90 TOB/100/075/PG/S90 TOB/100/100/PG/S90 N/A N/A N/A
150 TOB/150/050/PG/S90 TOB/150/075/PG/S90 TOB/150/100/PG/S90 TOB/150/150/PG/S90 N/A N/A
225 TOB/225/050/PG/S90 TOB/225/075/PG/S90 TOB/225/100/PG/S90 TOB/225/150/PG/S90 TOB/225/225/PG/S90 N/A
300 TOB/300/050/PG/S90 TOB/300/075/PG/S90 TOB/300/100/PG/S90 TOB/300/150/PG/S90 TOB/300/225/PG/S90 TOB/300/300/PG/S90

45º Bend with Top Lid and Gusset

45 Degree bend with top lid and gusset

Fixing Options

  • Turnbuckle type e.g. TTB/100/100/PG/G45
  • Screwfix type – add “S” after the first T e.g. TSTB/100/100/PG/G45
  • Tamperproof type – add “M” after the first T e.g. TMTB/100/100/PG/G45
Width mm 50mm
Deep		 75mm
Deep		 100mm
Deep		 150mm
Deep		 225mm
Deep		 300mm
Deep
50 TTB/050/050/PG/G45 N/A N/A N/A N/A N/A
75 TTB/075/050/PG/G45 TTB/075/075/PG/G45 N/A N/A N/A N/A
100 TTB/100/050/PG/G45 TTB/100/075/PG/G45 TTB/100/100/PG/G45 N/A N/A N/A
150 TTB/150/050/PG/G45 TTB/150/075/PG/G45 TTB/150/100/PG/G45 TTB/150/150/PG/G45 N/A N/A
225 TTB/225/050/PG/G45 TTB/225/075/PG/G45 TTB/225/100/PG/G45 TTB/225/150/PG/G45 TTB/225/225/PG/G45 N/A
300 TTB/300/050/PG/G45 TTB/300/075/PG/G45 TTB/300/100/PG/G45 TTB/300/150/PG/G45 TTB/300/225/PG/G45 TTB/300/300/PG/G45

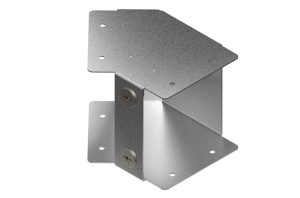

45º Bend with Inside Lid and Gusset

45 Degree bend with inside lid and gusset

Fixing Options

  • Turnbuckle type e.g. TIB/100/100/PG/G45
  • Screwfix type – add “S” after the first T e.g. TSIB/100/100/PG/G45
  • Tamperproof type – add “M” after the first T e.g. TMIB/100/100/PG/G45
Width mm 50mm
Deep		 75mm
Deep		 100mm
Deep		 150mm
Deep		 225mm
Deep		 300mm
Deep
50 TIB/050/050/PG/G45 N/A N/A N/A N/A N/A
75 TIB/075/050/PG/G45 TIB/075/075/PG/G45 N/A N/A N/A N/A
100 TIB/100/050/PG/G45 TIB/100/075/PG/G45 TIB/100/100/PG/G45 N/A N/A N/A
150 TIB/150/050/PG/G45 TIB/150/075/PG/G45 TIB/150/100/PG/G45 TIB/150/150/PG/G45 N/A N/A
225 TIB/225/050/PG/G45 TIB/225/075/PG/G45 TIB/225/100/PG/G45 TIB/225/150/PG/G45 TIB/225/225/PG/G45 N/A
300 TIB/300/050/PG/G45 TIB/300/075/PG/G45 TIB/300/100/PG/G45 TIB/300/150/PG/G45 TIB/300/225/PG/G45 TIB/300/300/PG/G45

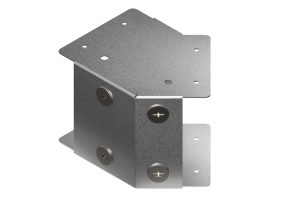

45º Bend with Outside Lid and Gusset

45 Degree bend with outside lid and gusset

Fixing Options

  • Turnbuckle type e.g. TOB/100/100/PG/G45
  • Screwfix type – add “S” after the first T e.g. TSOB/100/100/PG/G45
  • Tamperproof type – add “M” after the first T e.g. TMOB/100/100/PG/G45
Width mm 50mm
Deep		 75mm
Deep		 100mm
Deep		 150mm
Deep		 225mm
Deep		 300mm
Deep
50 TOB/050/050/PG/G45 N/A N/A N/A N/A N/A
75 TOB/075/050/PG/G45 TOB/075/075/PG/G45 N/A N/A N/A N/A
100 TOB/100/050/PG/G45 TOB/100/075/PG/G45 TOB/100/100/PG/G45 N/A N/A N/A
150 TOB/150/050/PG/G45 TOB/150/075/PG/G45 TOB/150/100/PG/G45 TOB/150/150/PG/G45 N/A N/A
225 TOB/225/050/PG/G45 TOB/225/075/PG/G45 TOB/225/100/PG/G45 TOB/225/150/PG/G45 TOB/225/225/PG/G45 N/A
300 TOB/300/050/PG/G45 TOB/300/075/PG/G45 TOB/300/100/PG/G45 TOB/300/150/PG/G45 TOB/300/225/PG/G45 TOB/300/300/PG/G45
