Straight Lengths Cable Tray

Straight Lengths Cable TrayStraight Lengths

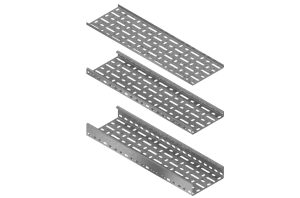

The comprehensive voestalpine Metsec cable tray range consists of three systems ranging from the light duty non-return flange cable tray to two systems with cable-friendly return flange trays, medium duty 25mm deep and heavy duty 50mm deep.

The unique perforation pattern allows ease of attachment of cables with more than adequate ventilation. The side walls of the medium and heavy duty ranges are also slotted as standard.

Light duty cable trays are available in widths of 50, 75, 100, 150, 225 and 300mm. Medium duty trays are available in widths of 50, 75, 100, 150, 225, 300, 450 and 600mm. Heavy duty trays are available in widths of 75, 100, 150, 225, 300, 450, 600, 750 and 900mm wide.

Materials and finishes available are mild steel pre galvanised as standard with mild steel hot dip galvanised after manufacture and stainless steel grade 1.4404 (316L) to order.

Closed and ventilated covers are available in 3m lengths

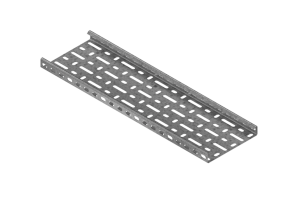

Straight Lengths

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Straight Lengths Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
50 CTSL12/0050PG3 CTSL25/0050PG3 N/A
75 CTSL12/0075PG3 CTSL25/0075PG3 CTSL50/0075PG3
100 CTSL12/0100PG3 CTSL25/0100PG3 CTSL50/0100PG3
150 CTSL12/0150PG3 CTSL25/0150PG3 CTSL50/0150PG3
225 CTSL12/0225PG3 CTSL25/0225PG3 CTSL50/0225PG3
300 CTSL18/0300PG3 CTSL25/0300PG3 CTSL50/0300PG3
450 N/A CTSL25/0450PG3 CTSL50/0450PG3
600 N/A CTSL25/0600PG3 CTSL50/0600PG3
750 N/A N/A CTSL50/0750PG3
900 N/A N/A CTSL50/0900PG3
