Internal Riser - Flexible Cable Tray

Risers

voestalpine Metsec produce a range of flexible and pre-folded risers for light, medium and heavy duty cable tray systems.

Flexible risers are available in widths from 50mm – 600mm and supplied flat to be folded to the required angle on site.

Materials and finishes available are mild steel pre galvanised as standard with mild steel hot dip galvanised after manufacture and stainless steel grade 1.4404 (316L) to order.

Closed and ventilated covers are available for 90° internal & external risers.

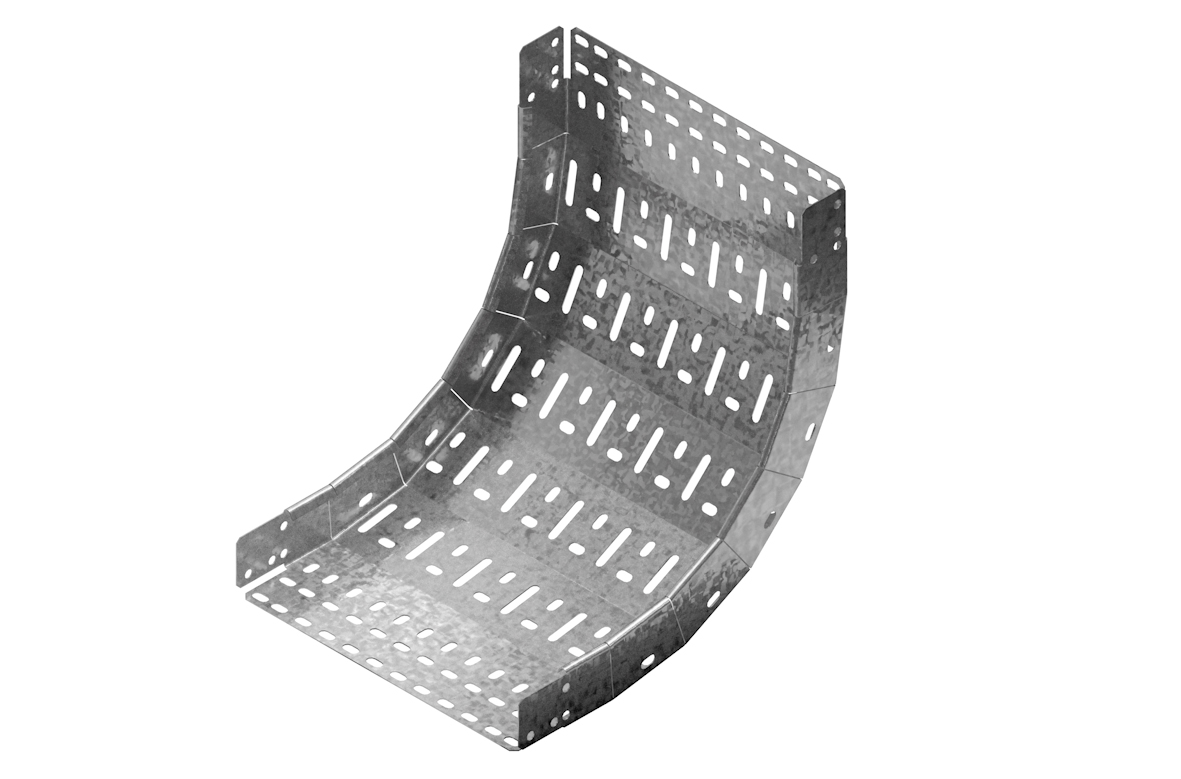

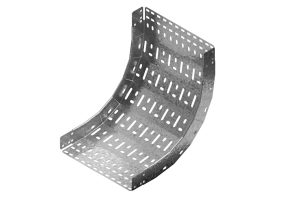

Internal Riser – Flexible

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

CTFR = Flexible risers are supplied flat and folded on site to suit angle.

CTIR = Internal risers are folded to suit stated angle. 90 = 90°, 60 = 60°, 45 = 45°, 30 = 30°

Eg: CTIR50/0900PG90

Internal Riser - Flexible Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
50 CTFR12/0050PG CTFR25/0050PG N/A
75 CTFR12/0075PG CTFR25/0075PG CTFR50/0075PG
100 CTFR12/0100PG CTFR25/0100PG CTFR50/0100PG
150 CTFR12/0150PG CTFR25/0150PG CTFR50/0150PG
225 CTFR12/0225PG CTFR25/0225PG CTFR50/0225PG
300 CTFR18/0300PG CTFR25/0300PG CTFR50/0300PG
450 N/A CTFR25/0450PG CTFR50/0450PG
600 N/A CTFR25/0600PG CTFR50/0600PG
750 N/A N/A CTIR50/0750PG90
(only available pre-folded)
900 N/A N/A CTIR50/0900PG90
(only available pre-folded)

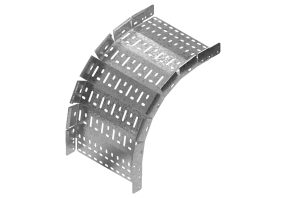

External Riser – Flexible

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

CTFR = Flexible risers are supplied flat and folded on site to suit angle.

CTER = External risers are folded to suit stated angle. 90 = 90°, 60 = 60°, 45 = 45°, 30 = 30°

Eg: CTER50/0900PG90

External Riser - Flexible Cable Tray

Width mm Light Duty Medium Duty Heavy Duty
50 CTFR12/0050PG CTFR25/0050PG N/A
75 CTFR12/0075PG CTFR25/0075PG CTFR50/0075PG
100 CTFR12/0100PG CTFR25/0100PG CTFR50/0100PG
150 CTFR12/0150PG CTFR25/0150PG CTFR50/0150PG
225 CTFR12/0225PG CTFR25/0225PG CTFR50/0225PG
300 CTFR18/0300PG CTFR25/0300PG CTFR50/0300PG
450 N/A CTFR25/0450PG CTFR50/0450PG
600 N/A CTFR25/0600PG CTFR50/0600PG
750 N/A N/A CTER50/0750PG90
(only available pre-folded)
900 N/A N/A CTER50/0900PG90
(only available pre-folded)
