Technical Details

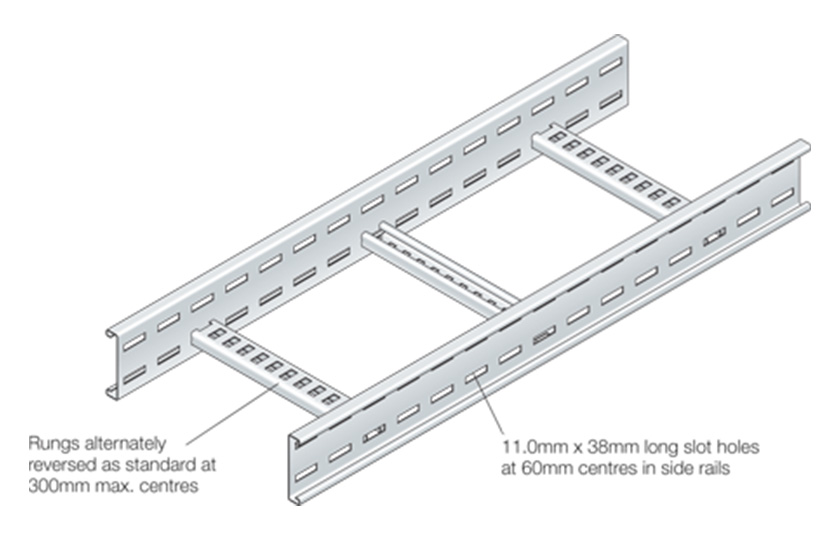

Whilst rungs are alternately reversed as standard, other rung orientations can be produced to order. Additionally alternative widths are also available to meet the requirements of the European markets.

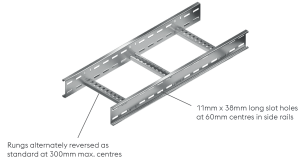

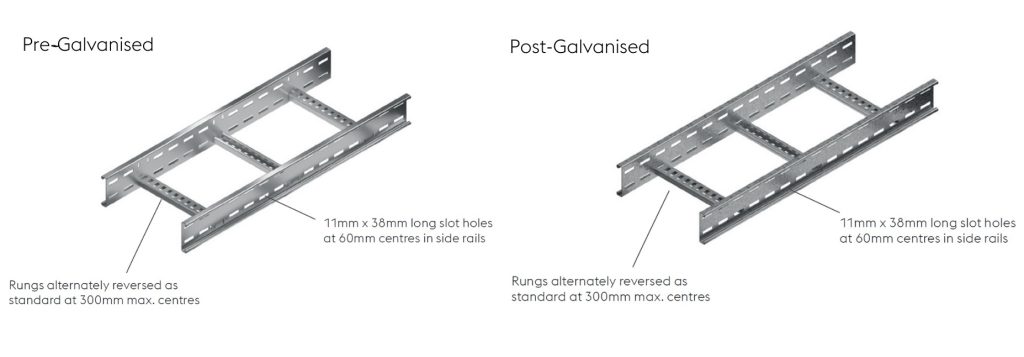

Straight Ladder

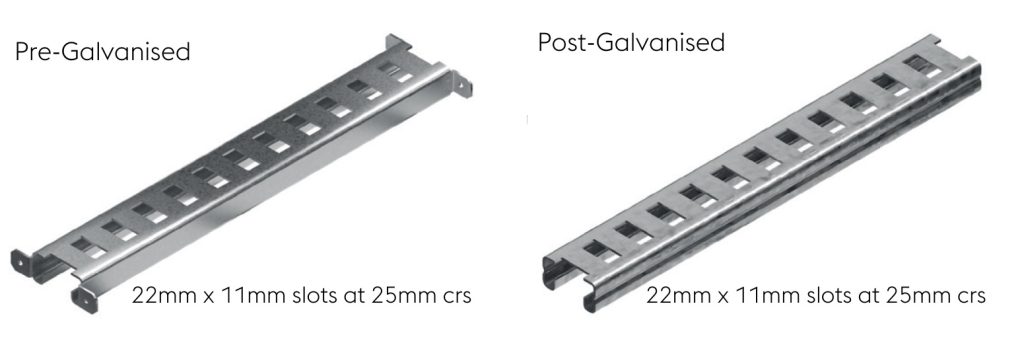

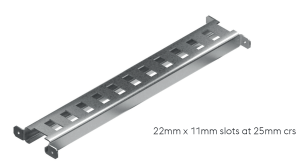

Rung Types

50, 100, 125 & 150mm deep ladder ranges rung type: 41mm x 21mm channel.

Materials & Finishes

Mild steel hot dip galvanised: manufactured from steel complying with BS EN 10025-2:2004 and hot dip galvanised after manufacture to BS EN 1461:1999.

Stainless steel: manufactured from stainless steel grade 1.4404 (316L) complying with BS EN 10088-2:2005 (pickling and passivating on request).

Pre Glavanised: manufactured from steel complying with BS EN 10346.

Ladder Profiles

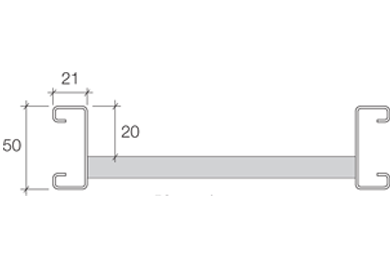

50mm Deep Range

1.5mm thick side rails
Light duty

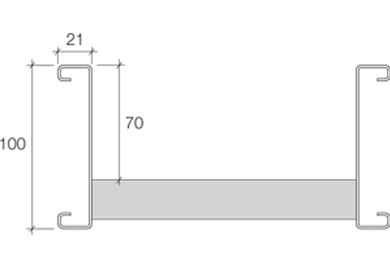

100mm Deep Range

1.5mm thick side rails
Medium duty

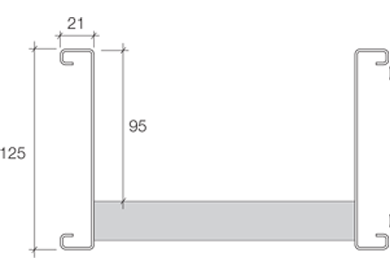

125m Deep Range

2.0mm thick side rails
Heavy duty

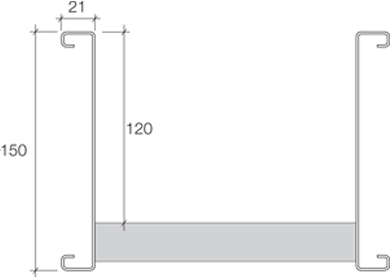

150mm Deep Range

2.0mm thick side rails
Extra heavy duty
