Horizontal Cladding Panel Joint Options

The panel joint rail options shown are based on a maximum panel length of 6m (longer panel lengths are available). The details provided are for guidance only and are intended to demonstrate the main principles which should be adopted.

For simplicity, panels and column centres should be compatible as shown.

Attention must be given to the maximum permissible horizontal span of the composite panel to be used without additional vertical supports being required.

A red arrow indicates to cleat bolts nearest to column face

A blue arrow indicates to cleat bolts nearest to sheeting face

* This detail cannot be used in conjunction with voestalpine Metsec’s standard WOC cleats

Download our purlins technical manual located in the downloads section.

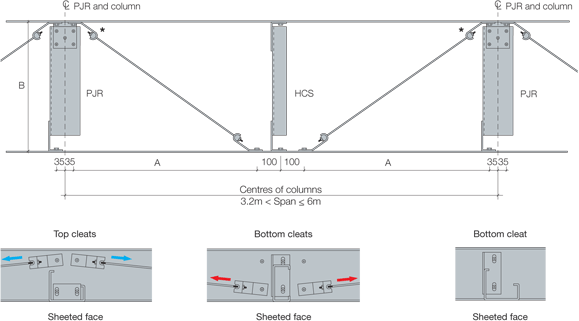

Option 1 – preferred

Panel joints at column locations. HCS support/restraint at mid span.

A = (span ÷ 2) – 135

B = rail centres

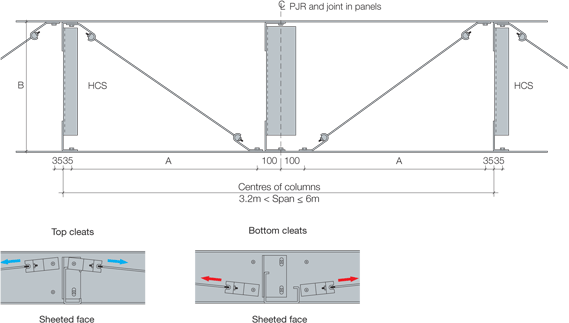

Option 2

Panel joints at mid span, HCS at column locations if required or otherwise omit.

A = (span ÷ 2) – 135

B = rail centres

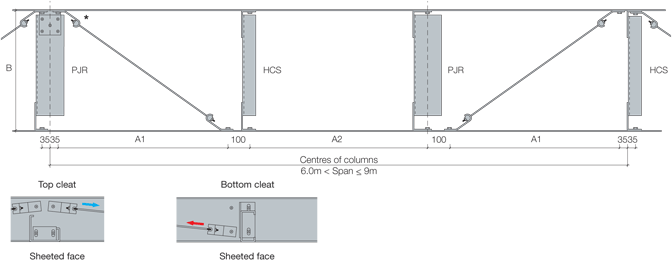

Option 3

Panel joints at 1/3 span and alternate column locations. HCS at 1/3 span. HCS at column if required or otherwise omit.

A1 = (span ÷ 3) – 135

A2 = (span ÷ 3)

B = rail centres

Option 4

Panel joints at 1/3 span and alternate column locations. HCS at 1/3 span. HCS at column if required or otherwise omit.

A1 = (span ÷ 3) – 135

A2 = (span ÷ 3)

B = rail centres

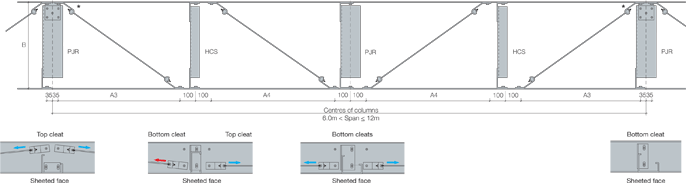

Option 5 – preferred

Panel joints at 1/4 span and alternate column locations. HCS 1/4 span.

A1 = (span ÷ 4) – 135

A2 = (span ÷ 4) – 200

B = rail centres

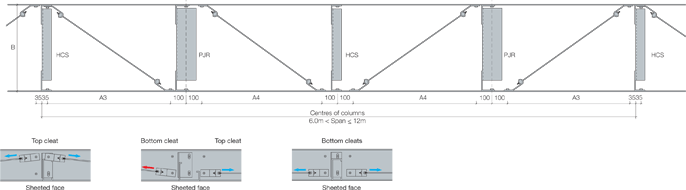

Option 6

Panel joints at 1/4 span. HCS at midspan. HCS at columns if required or otherwise omit.

A1 = (span ÷ 4) – 135

A2 = (span ÷ 4) – 200

B = rail centres
