Equal Tee Cable Ladder

Equal Tee Cable LadderTees & Crossovers

Tees and crossovers are available in widths of 150mm, 300mm, 450mm, 600mm, 750mm and 900mm as standard with alternative widths and unequal tees made to order. The standard radius is 300mm with 450mm, 600mm, 750mm and 900mm radii produced to order.

Tees and crossovers are manufactured in 50mm, 100mm, 125mm and 150mm depths, each with the same footprint to aid setting out when final loadings are not yet available.

Materials and finishes available are mild steel hot dip galvanised as standard and stainless steel grade 1.4404 (316L) to order.

Closed and ventilated covers are available for all tees and crossovers.

Equal Tee

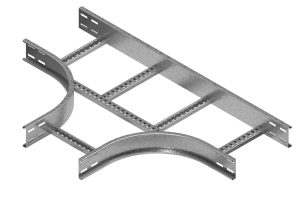

Equal Tee Cable Ladder

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep		 Medium Duty
100mm Deep		 Heavy Duty
125mm Deep		 Extra Heavy Duty
150mm Deep
150 LET050/0150HDGR300 LET100/0150HDGR300 LET125/0150HDGR300 LET150/0150HDGR300
300 LET050/0300HDGR300 LET100/0300HDGR300 LET125/0300HDGR300 LET150/0300HDGR300
450 LET050/0450HDGR300 LET100/0450HDGR300 LET125/0450HDGR300 LET150/0450HDGR300
600 N/A LET100/0600HDGR300 LET125/0600HDGR300 LET150/0600HDGR300
750 N/A LET100/0750HDGR300 LET125/0750HDGR300 LET150/0750HDGR300
900 N/A LET100/0900HDGR300 LET125/0900HDGR300 LET150/0900HDGR300

Unequal Tee (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900.

Finish: Hot Dip Galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

How to generate the part number – LUT (depth)/W1/W2(finish)(radius)

Example – LUT100/300/150/HDGR300

Table below shows a complete list of W1 and W2 combinations.

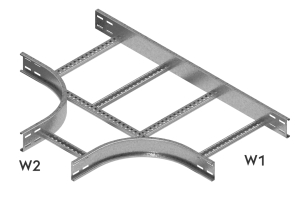

Unequal Tee Cable Ladder

W1 W2
150 300, 450, 600, 750, 900
300 150, 450, 600, 750, 900
450 150, 300, 600, 750, 900
600 150, 300, 450, 750, 900
750 150, 300, 450, 600, 900
900 150, 300, 450, 600, 750

Crossover

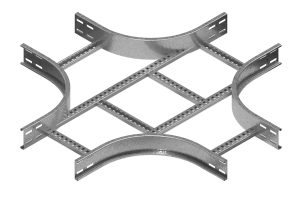

Crossover Cable Ladder

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep		 Medium Duty
100mm Deep		 Heavy Duty
125mm Deep		 Extra Heavy Duty
150mm Deep
150 LCO050/0150HDGR300 LCO100/0150HDGR300 LCO125/0150HDGR300 LCO150/0150HDGR300
300 LCO050/0300HDGR300 LCO100/0300HDGR300 LCO125/0300HDGR300 LCO150/0300HDGR300
450 LCO050/0450HDGR300 LCO100/0450HDGR300 LCO125/0450HDGR300 LCO150/0450HDGR300
600 N/A LCO100/0600HDGR300 LCO125/0600HDGR300 LCO150/0600HDGR300
750 N/A LCO100/0750HDGR300 LCO125/0750HDGR300 LCO150/0750HDGR300
900 N/A LCO100/0900HDGR300 LCO125/0900HDGR300 LCO150/0900HDGR300
