Straight Lengths

voestalpine Metsec cable ladders are available in 3m lengths as standard and 6m lengths to order. Standard widths are 150mm, 300mm, 450mm, 600mm, 750mm and 900mm with alternative widths available, to order, to meet the requirements of the European markets.

The complete system is produced, as standard, from hot dip galvanised mild steel in 4 depths; 50mm, 100mm, 125mm and 150mm, with stainless steel grade 1.4404 (316L) to order.

Rungs are 41mm x 21mm channel on all depths of ladder and are alternately reversed as standard with other rung orientations produced to order.

Ladder side rails feature 11mm x 38mm slots at 60mm centres allowing easy connection to each other also allows site cut ladders to be connected generally without the need to drill.

Closed and ventilated covers are available in 1.5m lengths.

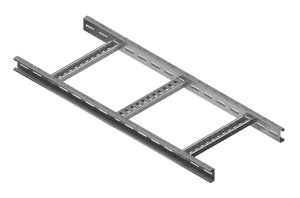

Light Duty – 50mm Deep

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

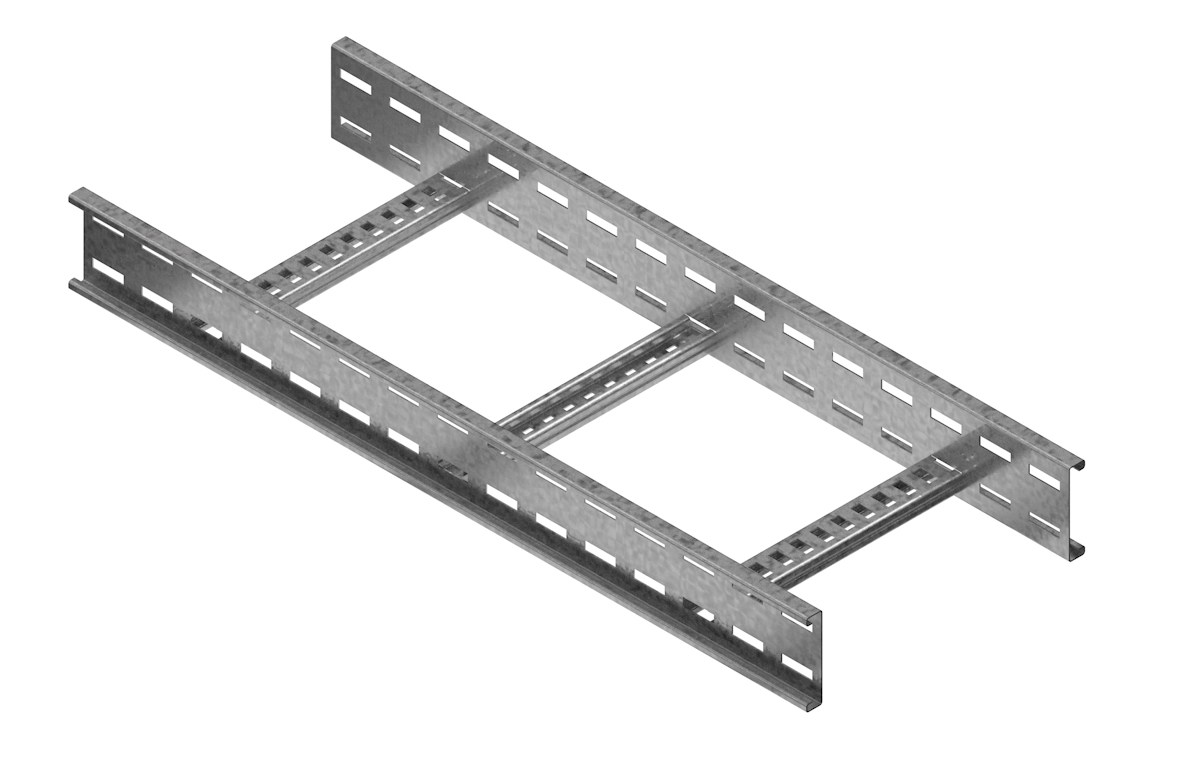

Medium Duty – 100mm Deep

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

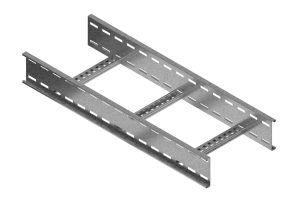

Heavy Duty – 125mm Deep

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

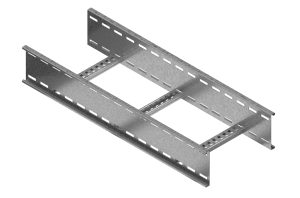

Extra Heavy Duty – 150mm Deep

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
