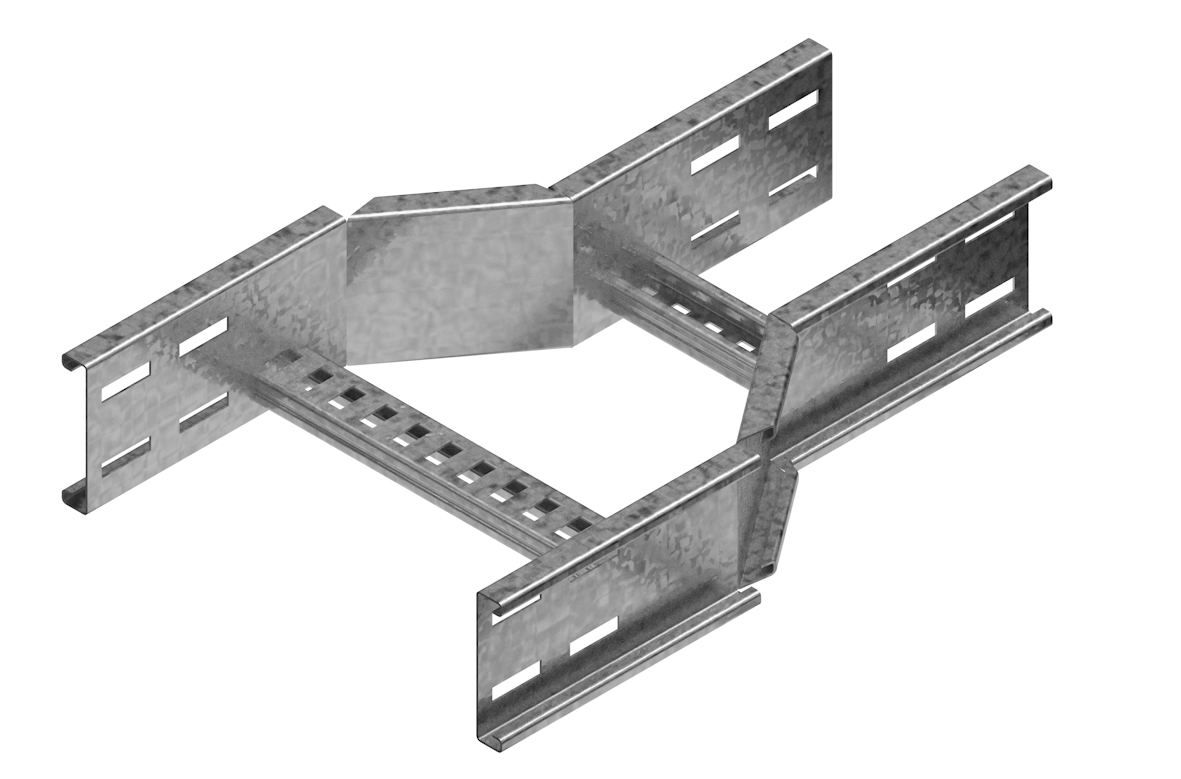

Straight reducer (made to order)

Straight reducer (made to order)Reducers

voestalpine Metsec cable ladder reducers are available in widths of 150mm, 300mm, 450mm, 600mm, 750mm and 900mm with alternative widths available to meet the requirements of the European markets.

Reducers are manufactured in 50mm, 100mm, 125mm and 150mm depths, each with the same footprint to aid setting out when final loadings are not yet available.

Materials and finishes available are mild steel hot dip galvanised as standard and stainless steel grade 1.4404 (316L) to order.

Closed and ventilated covers are available for all reducers.

Straight Reducer (made to order)

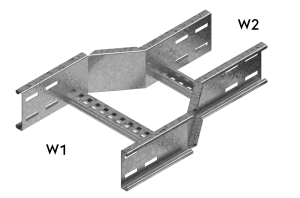

Straight reducer (made to order) with References

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep		 Medium Duty
100mm Deep		 Heavy Duty
125mm Deep		 Extra Heavy Duty
150mm Deep
W1 W2
300 150 LSR050/0300/0150HDG LSR100/0300/0150HDG LSR125/0300/0150HDG LSR150/0300/0150HDG
450 150 LSR050/0450/0150HDG LSR100/0450/0150HDG LSR125/0450/0150HDG LSR150/0450/0150HDG
600 150 N/A LSR100/0600/0150HDG LSR125/0600/0150HDG LSR150/0600/0150HDG
750 150 N/A LSR100/0750/0150HDG LSR125/0750/0150HDG LSR150/0750/0150HDG
900 150 N/A LSR100/0900/0150HDG LSR125/0900/0150HDG LSR150/0900/0150HDG
450 300 LSR050/0450/0300HDG LSR100/0450/0300HDG LSR125/0450/0300HDG LSR150/0450/0300HDG
600 300 N/A LSR100/0600/0300HDG LSR125/0600/0300HDG LSR150/0600/0300HDG
750 300 N/A LSR100/0750/0300HDG LSR125/0750/0300HDG LSR150/0750/0300HDG
900 300 N/A LSR100/0900/0300HDG LSR125/0900/0300HDG LSR150/0900/0300HDG
600 450 N/A LSR100/0600/0450HDG LSR125/0600/0450HDG LSR150/0600/0450HDG
750 450 N/A LSR100/0750/0450HDG LSR125/0750/0450HDG LSR150/0750/0450HDG
900 450 N/A LSR100/0900/0450HDG LSR125/0900/0450HDG LSR150/0900/0450HDG
750 600 N/A LSR100/0750/0600HDG LSR125/0750/0600HDG LSR150/0750/0600HDG
900 600 N/A LSR100/0900/0600HDG LSR125/0900/0600HDG LSR150/0900/0600HDG
900 750 N/A LSR100/0900/0750HDG LSR125/0900/0750HDG LSR150/0900/0750HDG

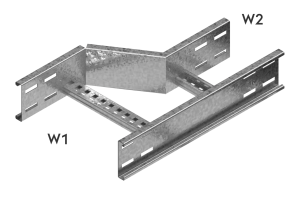

Left Hand Reducer (made to order)

Left hand reducer (made to order)

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep		 Medium Duty
100mm Deep		 Heavy Duty
125mm Deep		 Extra Heavy Duty
150mm Deep
W1 W2
300 150 LLR050/0300/0150HDG LLR100/0300/0150HDG LLR125/0300/0150HDG LLR150/0300/0150HDG
450 150 LLR050/0450/0150HDG LLR100/0450/0150HDG LLR125/0450/0150HDG LLR150/0450/0150HDG
600 150 N/A LLR100/0600/0150HDG LLR125/0600/0150HDG LLR150/0600/0150HDG
750 150 N/A LLR100/0750/0150HDG LLR125/0750/0150HDG LLR150/0750/0150HDG
900 150 N/A LLR100/0900/0150HDG LLR125/0900/0150HDG LLR150/0900/0150HDG
450 300 LLR050/0450/0300HDG LLR100/0450/0300HDG LLR125/0450/0300HDG LLR150/0450/0300HDG
600 300 N/A LLR100/0600/0300HDG LLR125/0600/0300HDG LLR150/0600/0300HDG
750 300 N/A LLR100/0750/0300HDG LLR125/0750/0300HDG LLR150/0750/0300HDG
900 300 N/A LLR100/0900/0300HDG LLR125/0900/0300HDG LLR150/0900/0300HDG
600 450 N/A LLR100/0600/0450HDG LLR125/0600/0450HDG LLR150/0600/0450HDG
750 450 N/A LLR100/0750/0450HDG LLR125/0750/0450HDG LLR150/0750/0450HDG
900 450 N/A LLR100/0900/0450HDG LLR125/0900/0450HDG LLR150/0900/0450HDG
750 600 N/A LLR100/0750/0600HDG LLR125/0750/0600HDG LLR150/0750/0600HDG
900 600 N/A LLR100/0900/0600HDG LLR125/0900/0600HDG LLR150/0900/0600HDG
900 750 N/A LLR100/0900/0750HDG LLR125/0900/0750HDG LLR150/0900/0750HDG

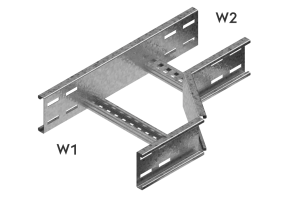

Right Hand Reducer (made to order)

Right hand reducer (made to order)

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep		 Medium Duty
100mm Deep		 Heavy Duty
125mm Deep		 Extra Heavy
Duty 150mm Deep
W1 W2
300 150 LRR050/0300/0150HDG LRR100/0300/0150HDG LRR125/0300/0150HDG LRR150/0300/0150HDG
450 150 LRR050/0450/0150HDG LRR100/0450/0150HDG LRR125/0450/0150HDG LRR150/0450/0150HDG
600 150 N/A LRR100/0600/0150HDG LRR125/0600/0150HDG LRR150/0600/0150HDG
750 150 N/A LRR100/0750/0150HDG LRR125/0750/0150HDG LRR150/0750/0150HDG
900 150 N/A LRR100/0900/0150HDG LRR125/0900/0150HDG LRR150/0900/0150HDG
450 300 LRR050/0450/0300HDG LRR100/0450/0300HDG LRR125/0450/0300HDG LRR150/0450/0300HDG
600 300 N/A LRR100/0600/0300HDG LRR125/0600/0300HDG LRR150/0600/0300HDG
750 300 N/A LRR100/0750/0300HDG LRR125/0750/0300HDG LRR150/0750/0300HDG
900 300 N/A LRR100/0900/0300HDG LRR125/0900/0300HDG LRR150/0900/0300HDG
600 450 N/A LRR100/0600/0450HDG LRR125/0600/0450HDG LRR150/0600/0450HDG
750 450 N/A LRR100/0750/0450HDG LRR125/0750/0450HDG LRR150/0750/0450HDG
900 450 N/A LRR100/0900/0450HDG LRR125/0900/0450HDG LRR150/0900/0450HDG
750 600 N/A LRR100/0750/0600HDG LRR125/0750/0600HDG LRR150/0750/0600HDG
900 600 N/A LRR100/0900/0600HDG LRR125/0900/0600HDG LRR150/0900/0600HDG
900 750 N/A LRR100/0900/0750HDG LRR125/0900/0750HDG LRR150/0900/0750HDG
