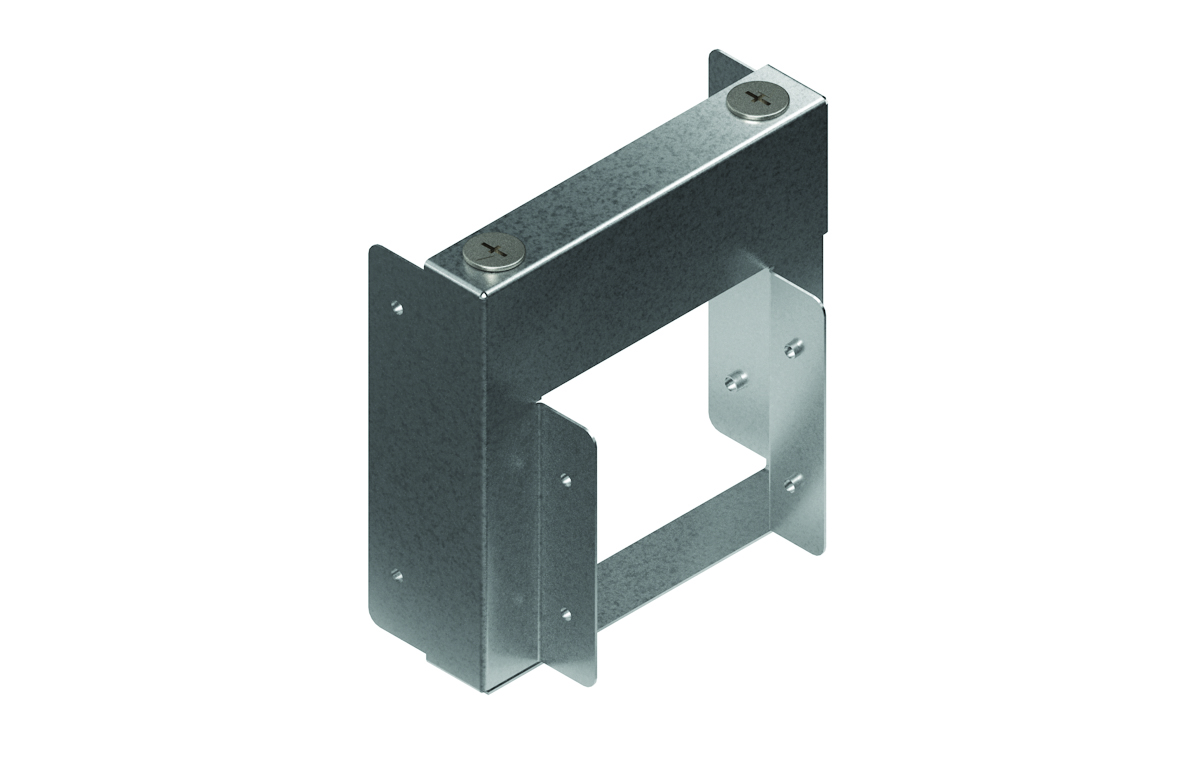

Reducers

Cable trunking reducers are available in sizes from 300m x 300m to 50mm x 50mm.

Lids are attached by turnbuckle fixings, with screwfix and tamperproof fixings also available.

Materials and finishes available are mild steel pre galvanised as standard and powder coated to order.

Reducers

Reducers Cable Trunking

Fixing Options

Turnbuckle type e.g. TTR/100/100/TO/050/050/PG
Screwfix type – add “S” after the first T e.g. TSTR/100/100/TO/050/050/PG
Tamperproof type – add “M” after the first T e.g. TMTR/100/100/TO/050/050/PG3

Width 1 (mm)	Width 2 (mm)
50 x 50mm	75 x 75mm	100 x 100mm	150 x 150mm
75 x 75	TTR/075/075/TO/050/050/PG	N/A	N/A	N/A
100 x 100	TTR/100/100/TO/050/050/PG	TTR/100/100/TO/075/075/PG	N/A	N/A
150 x 150	TTR/150/150/TO/050/050/PG	TTR/150/150/TO/075/075/PG	TTR/150/150/TO/100/100/PG	N/A
225 x 225	TTR/225/225/TO/050/050/PG	TTR/225/225/TO/075/075/PG	TTR/225/225/TO/100/100/PG	TTR/225/225/TO/150/150/PG
300 x 300	TTR/300/300/TO/050/050/PG	TTR/300/300/TO/075/075/PG	TTR/300/300/TO/100/100/PG	TTR/300/300/TO/150/150/PG
