Internal and external risers for Metsec cable ladders are available with 90° rotation and 300mm radius as standard with 30°, 45° and 60° variations and 450mm, 600mm, 750mm and 900mm radii produced to order. A flexible articulated riser is also available and is made to order.

Risers are manufactured in 50mm, 100mm, 125mm and 150mm depths, each with the same footprint to aid setting out when final loadings are not yet available.

Standard widths are 150mm, 300mm, 450mm, 600mm, 750mm and 900mm with alternative widths available, to order, to meet the requirements of the European markets.

Materials and finishes available are mild steel hot dip galvanised as standard and stainless steel grade 1.4404 (316L) to order.

Closed and ventilated covers are available for all risers.

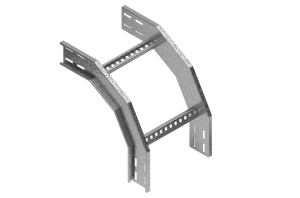

90º External Riser

Standard radius 300mm = R300, other radii R450R600R750 and R900 (made to order).

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep
Medium Duty
100mm Deep
Heavy Duty
125mm Deep
Extra Heavy Duty
150mm Deep
150 LER050/0150​HDG/90R300 LER100/0150​HDG/90R300 LER125/0150​HDG/90R300 LER150/0150​HDG/90R300
300 LER050/0300​HDG/90R300 LER100/0300​HDG/90R300 LER125/0300​HDG/90R300 LER150/0300​HDG/90R300
450 LER050/0450​HDG/90R300 LER100/0450​HDG/90R300 LER125/0450​HDG/90R300 LER150/0450​HDG/90R300
600 N/A LER100/0600​HDG/90R300 LER125/0600​HDG/90R300 LER150/0600​HDG/90R300
750 N/A LER100/0750​HDG/90R300 LER125/0750​HDG/90R300 LER150/0750​HDG/90R300
900 N/A LER100/0900​HDG/90R300 LER125/0900​HDG/90R300 LER150/0900​HDG/90R300

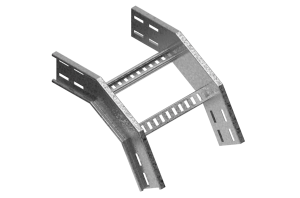

60º External Riser (made to order)

Standard radius 300mm = R300, other radii R450R600R750 and R900 (made to order).

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep
Medium Duty
100mm Deep
Heavy Duty
125mm Deep
Extra Heavy Duty
150mm Deep
150 LER050/0150​HDG/60R300 LER100/0150​HDG/60R300 LER125/0150​HDG/60R300 LER150/0150​HDG/60R300
300 LER050/0300​HDG/60R300 LER100/0300​HDG/60R300 LER125/0300​HDG/60R300 LER150/0300​HDG/60R300
450 LER050/0450​HDG/60R300 LER100/0450​HDG/60R300 LER125/0450​HDG/60R300 LER150/0450​HDG/60R300
600 N/A LER100/0600​HDG/60R300 LER125/0600​HDG/60R300 LER150/0600​HDG/60R300
750 N/A LER100/0750​HDG/60R300 LER125/0750​HDG/60R300 LER150/0750​HDG/60R300
900 N/A LER100/0900​HDG/60R300 LER125/0900​HDG/60R300 LER150/0900​HDG/60R300

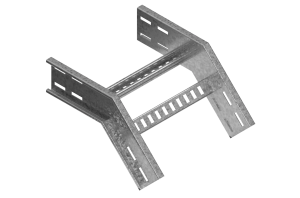

45º External Riser (made to order)

Standard radius 300mm = R300, other radii R450R600R750 and R900 (made to order).

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep
Medium Duty
100mm Deep
Heavy Duty
125mm Deep
Extra Heavy Duty
150mm Deep
150 LER050/0150​HDG/45R300 LER100/0150​HDG/45R300 LER125/0150​HDG/45R300 LER150/0150​HDG/45R300
300 LER050/0300​HDG/45R300 LER100/0300​HDG/45R300 LER125/0300​HDG/45R300 LER150/0300​HDG/45R300
450 LER050/0450​HDG/45R300 LER100/0450​HDG/45R300 LER125/0450​HDG/45R300 LER150/0450​HDG/45R300
600 N/A LER100/0600​HDG/45R300 LER125/0600​HDG/45R300 LER150/0600​HDG/45R300
750 N/A LER100/0750​HDG/45R300 LER125/0750​HDG/45R300 LER150/0750​HDG/45R300
900 N/A LER100/0900​HDG/45R300 LER125/0900​HDG/45R300 LER150/0900​HDG/45R300

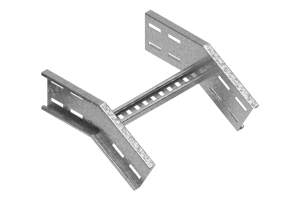

30º External Riser (made to order)

Standard radius 300mm = R300, other radii R450R600R750 and R900 (made to order).

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep
Medium Duty
100mm Deep
Heavy Duty
125mm Deep
Extra Heavy Duty
150mm Deep
150 LER050/0150​HDG/30R300 LER100/0150​HDG/30R300 LER125/0150​HDG/30R300 LER150/0150​HDG/30R300
300 LER050/0300​HDG/30R300 LER100/0300​HDG/30R300 LER125/0300​HDG/30R300 LER150/0300​HDG/30R300
450 LER050/0450​HDG/30R300 LER100/0450​HDG/30R300 LER125/0450​HDG/30R300 LER150/0450​HDG/30R300
600 N/A LER100/0600​HDG/30R300 LER125/0600​HDG/30R300 LER150/0600​HDG/30R300
750 N/A LER100/0750​HDG/30R300 LER125/0750​HDG/30R300 LER150/0750​HDG/30R300
900 N/A LER100/0900​HDG/30R300 LER125/0900​HDG/30R300 LER150/0900​HDG/30R300

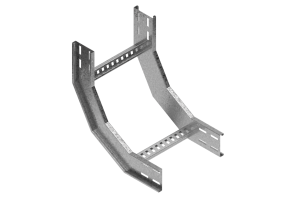

90º Internal Riser

Standard radius 300mm = R300, other radii R450R600R750 and R900 (made to order).

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep
Medium Duty
100mm Deep
Heavy Duty
125mm Deep
Extra Heavy Duty
150mm Deep
150 LIR050/0150​HDG/90R300 LIR100/0150​HDG/90R300 LIR125/0150​HDG/90R300 LIR150/0150​HDG/90R300
300 LIR050/0300​HDG/90R300 LIR100/0300​HDG/90R300 LIR125/0300​HDG/90R300 LIR150/0300​HDG/90R300
450 LIR050/0450​HDG/90R300 LIR100/0450​HDG/90R300 LIR125/0450​HDG/90R300 LIR150/0450​HDG/90R300
600 N/A LIR100/0600​HDG/90R300 LIR125/0600​HDG/90R300 LIR150/0600​HDG/90R300
750 N/A LIR100/0750​HDG/90R300 LIR125/0750​HDG/90R300 LIR150/0750​HDG/90R300
900 N/A LIR100/0900​HDG/90R300 LIR125/0900​HDG/90R300 LIR150/0900​HDG/90R300

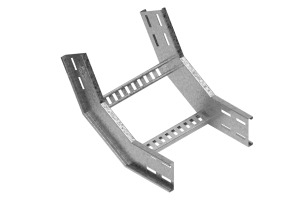

60º Internal Riser (made to order)

Standard radius 300mm = R300, other radii R450R600R750 and R900 (made to order).

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep
Medium Duty
100mm Deep
Heavy Duty
125mm Deep
Extra Heavy Duty
150mm Deep
150 LIR050/0150​HDG/60R300 LIR100/0150​HDG/60R300 LIR125/0150​HDG/60R300 LIR150/0150​HDG/60R300
300 LIR050/0300​HDG/60R300 LIR100/0300​HDG/60R300 LIR125/0300​HDG/60R300 LIR150/0300​HDG/60R300
450 LIR050/0450​HDG/60R300 LIR100/0450​HDG/60R300 LIR125/0450​HDG/60R300 LIR150/0450​HDG/60R300
600 N/A LIR100/0600​HDG/60R300 LIR125/0600​HDG/60R300 LIR150/0600​HDG/60R300
750 N/A LIR100/0750​HDG/60R300 LIR125/0750​HDG/60R300 LIR150/0750​HDG/60R300
900 N/A LIR100/0900​HDG/60R300 LIR125/0900​HDG/60R300 LIR150/0900​HDG/60R300

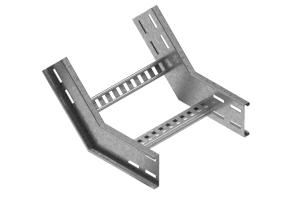

45º Internal Riser (made to order)

Standard radius 300mm = R300, other radii R450R600R750 and R900 (made to order).

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep
Medium Duty
100mm Deep
Heavy Duty
125mm Deep
Extra Heavy Duty
150mm Deep
150 LIR050/0150​HDG/45R300 LIR100/0150​HDG/45R300 LIR125/0150​HDG/45R300 LIR150/0150​HDG/45R300
300 LIR050/0300​HDG/45R300 LIR100/0300​HDG/45R300 LIR125/0300​HDG/45R300 LIR150/0300​HDG/45R300
450 LIR050/0450​HDG/45R300 LIR100/0450​HDG/45R300 LIR125/0450​HDG/45R300 LIR150/0450​HDG/45R300
600 N/A LIR100/0600​HDG/45R300 LIR125/0600​HDG/45R300 LIR150/0600​HDG/45R300
750 N/A LIR100/0750​HDG/45R300 LIR125/0750​HDG/45R300 LIR150/0750​HDG/45R300
900 N/A LIR100/0900​HDG/45R300 LIR125/0900​HDG/45R300 LIR150/0900​HDG/45R300

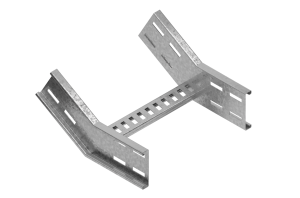

30º Internal Riser (made to order)

Standard radius 300mm = R300, other radii R450R600R750 and R900 (made to order).

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep
Medium Duty
100mm Deep
Heavy Duty
125mm Deep
Extra Heavy Duty
150mm Deep
150 LIR050/0150​HDG/30R300 LIR100/0150​HDG/30R300 LIR125/0150​HDG/30R300 LIR150/0150​HDG/30R300
300 LIR050/0300​HDG/30R300 LIR100/0300​HDG/30R300 LIR125/0300​HDG/30R300 LIR150/0300​HDG/30R300
450 LIR050/0450​HDG/30R300 LIR100/0450​HDG/30R300 LIR125/0450​HDG/30R300 LIR150/0450​HDG/30R300
600 N/A LIR100/0600​HDG/30R300 LIR125/0600​HDG/30R300 LIR150/0600​HDG/30R300
750 N/A LIR100/0750​HDG/30R300 LIR125/0750​HDG/30R300 LIR150/0750​HDG/30R300
900 N/A LIR100/0900​HDG/30R300 LIR125/0900​HDG/30R300 LIR150/0900​HDG/30R300

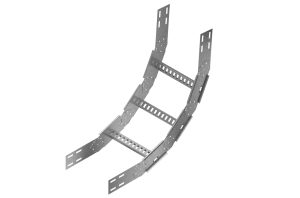

Articulated Riser (made to order)

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep
Medium Duty
100mm Deep
Heavy Duty
125mm Deep
Extra Heavy Duty
150mm Deep
150 N/A L/AR100/0150​HDG L/AR125/0150​HDG L/AR150/0150​HDG
300 N/A L/AR100/0300​HDG L/AR125/0300​HDG L/AR150/0300​HDG
450 N/A L/AR100/0450​HDG L/AR125/0450​HDG L/AR150/0450​HDG
600 N/A L/AR100/0600​HDG L/AR125/0600​HDG L/AR150/0600​HDG
750 N/A L/AR100/0750​HDG L/AR125/0750​HDG L/AR150/0750​HDG
900 N/A L/AR100/0900​HDG L/AR125/0900​HDG L/AR150/0900​HDG
