Vertical Splice Plates Cable Ladder

Accessories

There are a wide range of accessories for the voestalpine Metsec cable ladder system, each available in mild steel hot dip galvanised as standard and stainless steel grade 1.4404 (316L) to order.

Splice Plates

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. L/SSP100SSPR

Splice Plates Cable Ladder

Ladder depth mm Sold in pairs (includes 16 nuts, bolts and washers)
50 L/SSP50PR
100 L/SSP100PR
125 L/SSP125PR
150 L/SSP150PR

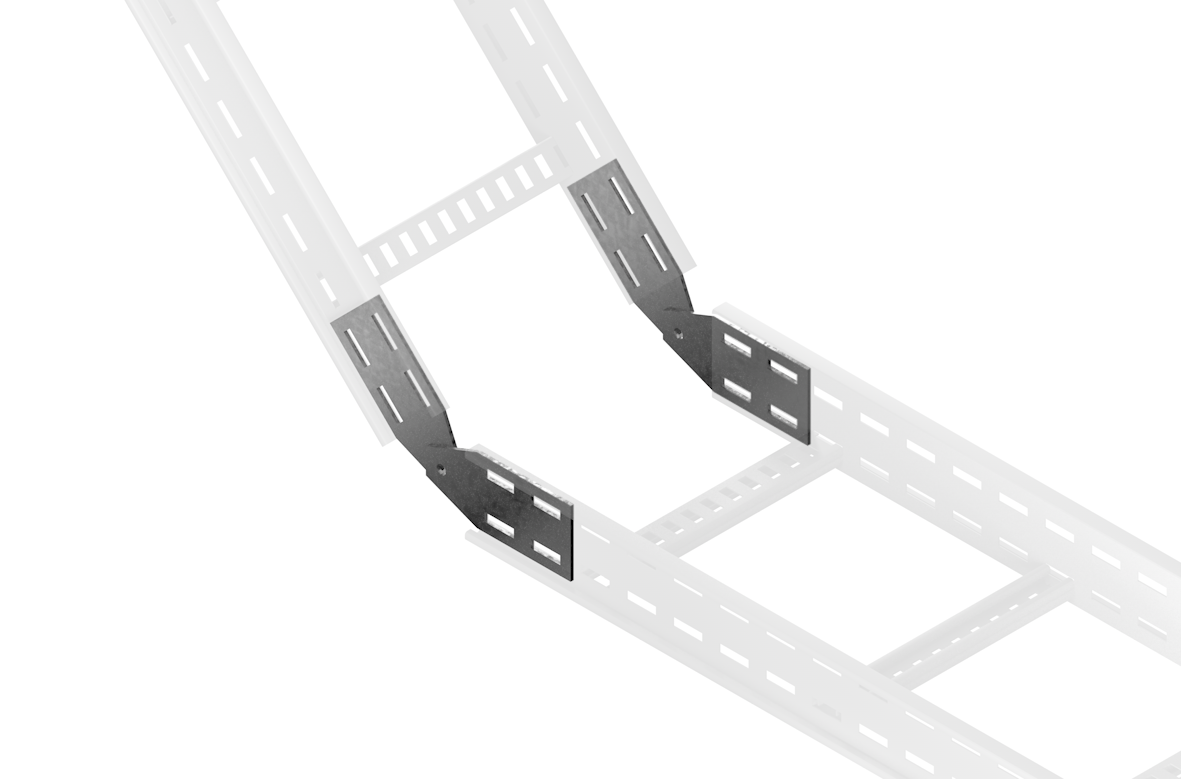

Vertical Splice Plates

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. L/VSP100SSPR

Vertical Splice Plates Cable Ladder

Ladder depth mm Sold in pairs (includes 16 nuts, bolts and washers)
50 L/VSP50PR
100 L/VSP100PR
125 L/VSP125PR
150 L/VSP150PR

Horizontal Splice Plates

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. L/HSP100SSPR

Horizontal Splice Plates Cable Ladder

Ladder depth mm Sold in pairs (includes 16 nuts, bolts and washers)
50 L/HSP50PR
100 L/HSP100PR
125 L/HSP125PR
150 L/HSP150PR

Hold Down Bracket

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. L/HDB100SS

Hold Down Bracket Cable Ladder

Ladder depth mm Sold as single item (fasteners excluded)
50 L/HDB50
100 L/HDB100
125 L/HDB125
150 L/HDB150

Suspension Clip

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. L/SC100SS

Suspension Clip Cable Ladder

Ladder depth mm Sold as single item (fasteners excluded)
50 L/SC50
100 L/SC100
125 L/SC125
150 L/SC150

Hold Down Clip

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. L/HDC/ASS

Hold Down Clip Cable Ladder

Sold as single item (fasteners excluded)
L/HDC/A

Bolted Hold Down Clip

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. L/HDC/BSS

Bolted Hold Down Clip Cable Ladder

Sold as single item (fasteners excluded)
L/HDC/B

Side Rail Clamp

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. L/SRC/SS

Side Rail Clamp Cable Ladder

Sold as single item (fasteners excluded)
L/SRC

Bendable Splice Plates

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. L/BSP100/SSPR

Bendable Splice Plates Cable Ladder

Ladder depth mm Sold in pairs (includes 16 nuts, bolts and washers)
50 L/BSP050/PR
100 L/BSP100/PR
125 L/BSP125/PR
150 L/BSP150/PR

End Connectors

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. L/ECO100SSPR

End connectors Cable Ladder

Ladder depth mm Sold in pairs (includes 16 nuts, bolts and washers)
50 L/ECO50PR
100 L/ECO100PR
125 L/ECO125PR
150 L/ECO150PR

Stop Ends

Stop ends Cable Ladder

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. L/SE100/0300SS

Width mm Light Duty 50mm Deep Medium Duty 100mm Deep Heavy Duty 125mm Deep Extra Heavy Duty 150mm Deep
150 L/SE050/0150 L/SE100/0150 L/SE125/0150 L/SE150/0150
300 L/SE050/0300 L/SE100/0300 L/SE125/0300 L/SE150/0300
450 L/SE050/0450 L/SE100/0450 L/SE125/0450 L/SE150/0450
600 N/A L/SE100/0600 L/SE125/0600 L/SE150/0600
750 N/A L/SE100/0750 L/SE125/0750 L/SE150/0750
900 N/A L/SE100/0900 L/SE125/0900 L/SE150/0900

Drop Out Plates

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. L/DOP300SS

Drop Out Plates Cable Ladder

Ladder width mm Sold as single item (fasteners excluded)
150 L/DOP150
300 L/DOP300
450 L/DOP450
600 L/DOP600
750 L/DOP750
900 L/DOP900

Drop Out Brackets

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. L/RTR100SS

Drop Out Brackets Cable Ladder

Ladder depth mm Sold in pairs (fasteners excluded)
50 N/A
100 L/RTR100/PR
125 L/RTR125/PR
150 L/RTR150/PR

Wall Brackets

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. L/WSB100SSPR

Wall Brackets Cable Ladder

Ladder depth mm Sold in pairs (fasteners excluded)
50 L/WSB050PR
100 L/WSB100PR
125 L/WSB125PR
150 L/WSB150PR

Straight Divider – 3m Long

Finish: hot dip galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. LSD100/3SS

Straight Divider - 3m Long Cable Ladder

Ladder depth mm Sold as single item (fasteners excluded)
50 LSD050/3
100 LSD100/3
125 LSD125/3
150 LSD150/3

Bendable Divider – 1m Long

Finish: Hot Dip Galvanised as standard. For stainless steel grade 1.4404 (316L) add SS e.g. LBD100/SS

Bendable Divider - 1m Long Cable Ladder

Ladder depth mm Sold as single item (fasteners excluded)
50 LBD050
100 LBD100
125 LBD125
150 LBD150

Earth Straps

Finish: copper braid electro tinned – 16mm2

Earth Straps Cable Ladder

250mm long (fasteners excluded)
L/ES250
