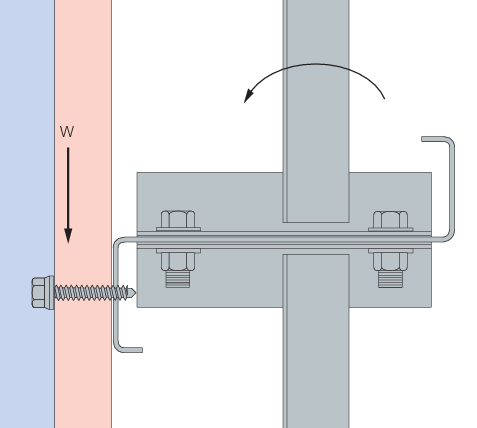

The Metsec side rail support and its end connection are designed to prevent rotation of the side rail under eccentric cladding loads.

Side rail support

w = weight of cladding

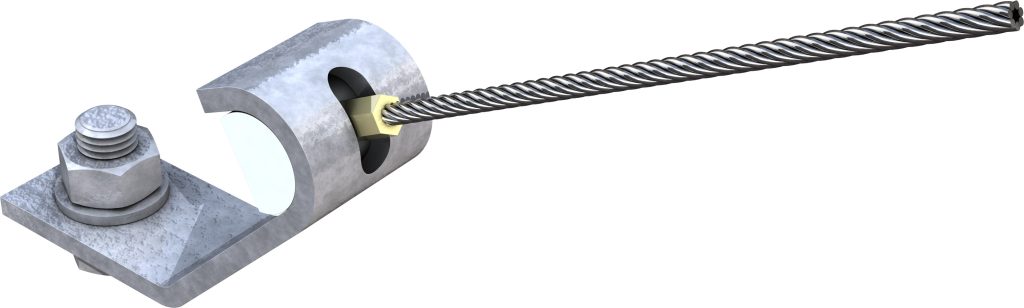

Diagonal Tie Wires

Metsec diagonal tie wires provide significant benefits in terms of both drawing office detailing and site erection time.

They are delivered fully assembled to avoid the possibility of lost items on site. The assembly is protected by galvanising and is provided with adjustable ends for easy erection. To enable the length of diagonal tie wires to be determined, the depth between rails (B) and the distance between rail holes (A) must be given.

Metsec will ensure the correct length is supplied.

It is important that the end bracket is always bolted to the cleat hole nearest the stanchion.

cleat

Radial slots in the end brackets accommodate angles between 25º and 65º.

Side Rail Supports

Side rail supports are bolted between the lines of side rails in accordance with the recommendations shown.

Side rail supports are fully assembled from pre-galvanised material.

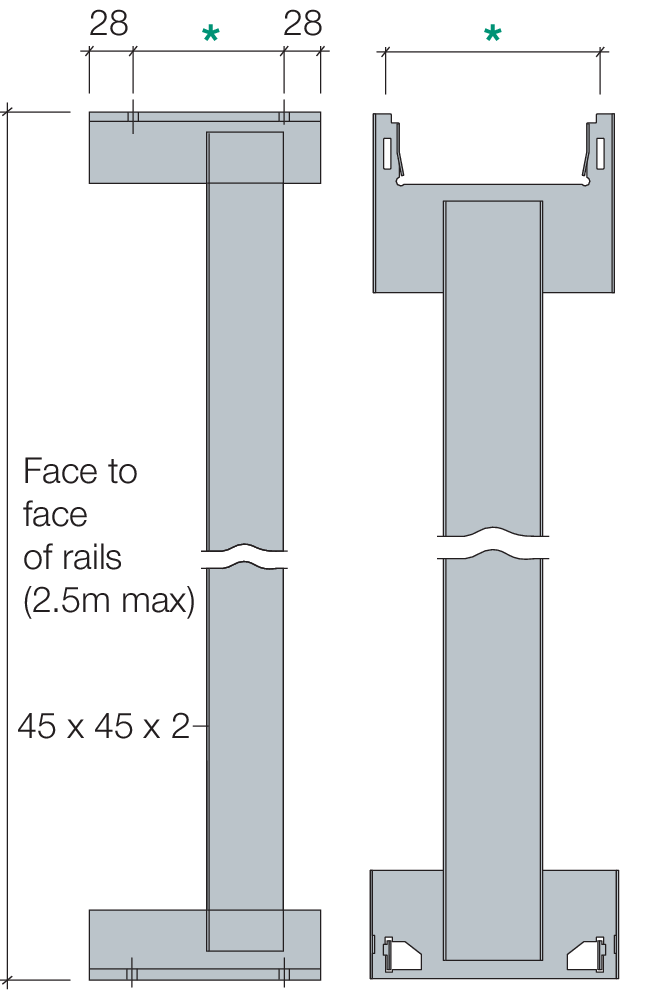

142-262 Series

142-262 series

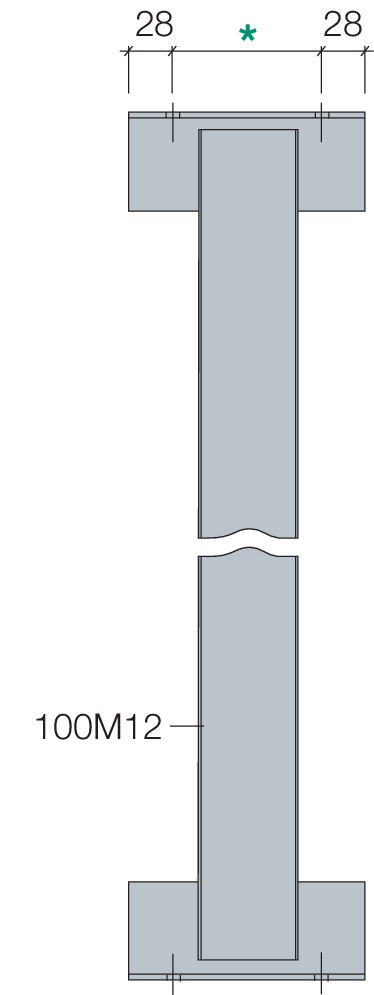

302 & 342 Series

302-342 series

* Standard gauge lines

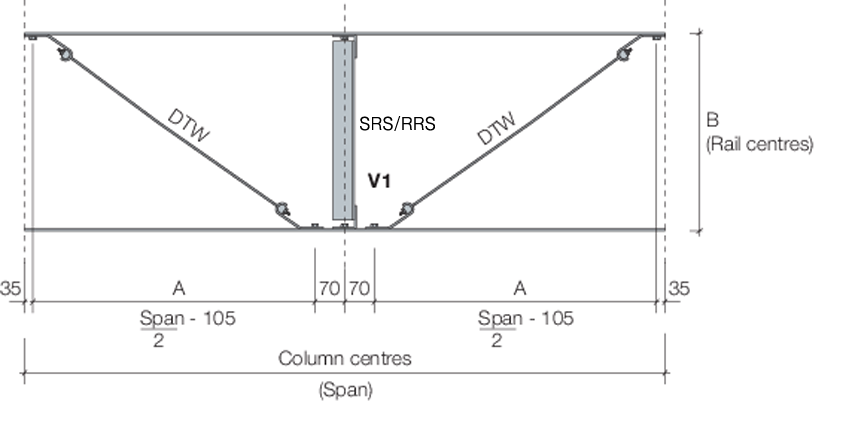

Side Rail Support Arrangement – 3.2m < spans ≤ 6.1m

Side rail support arrangement

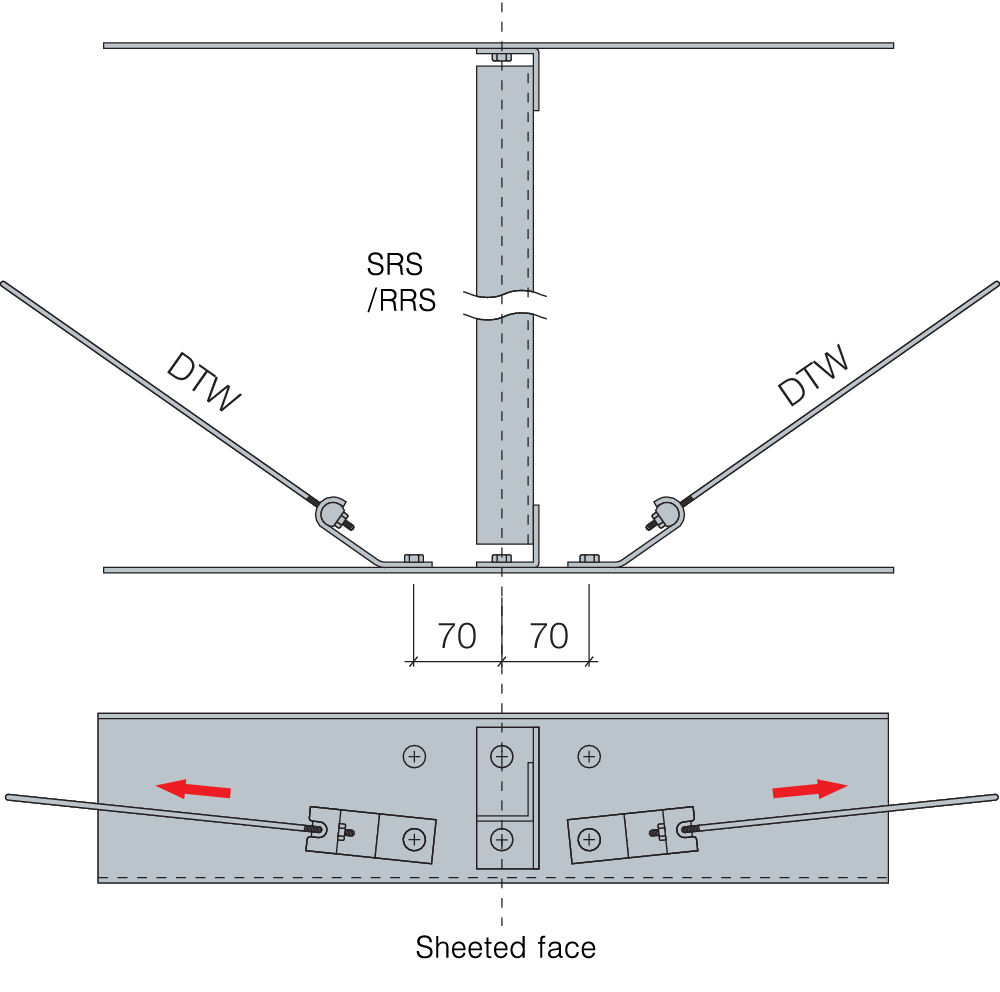

V1

version 1

SRS denotes side rail supports

DTW denotes diagonal tie wires

 Indicates to cleat bolts nearest to column face

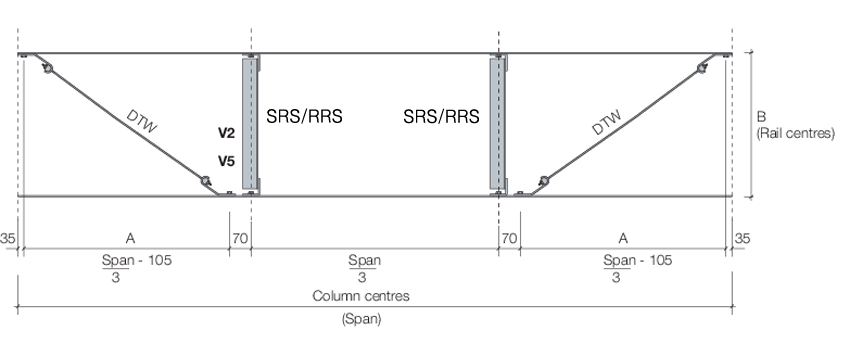

Side Rail Support Arrangement – 6.1m < spans ≤ 10.1m

support arrangement 6.1m

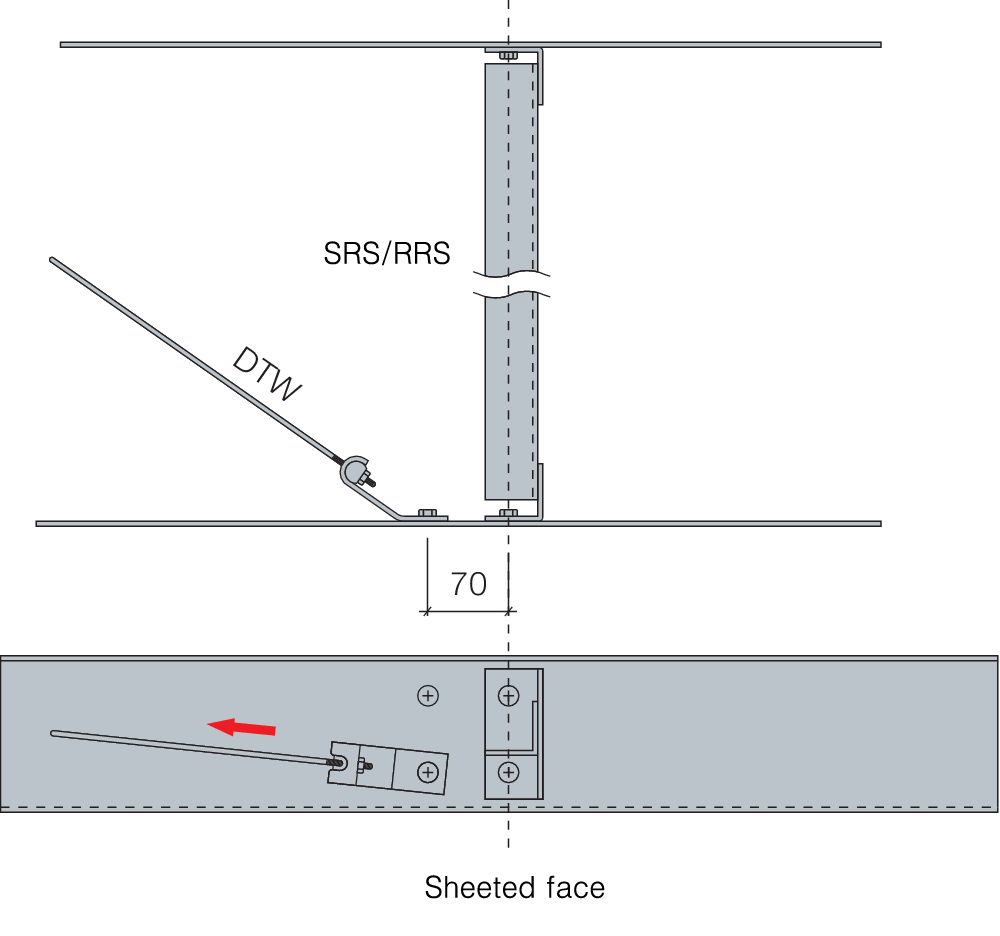

V2

version 2

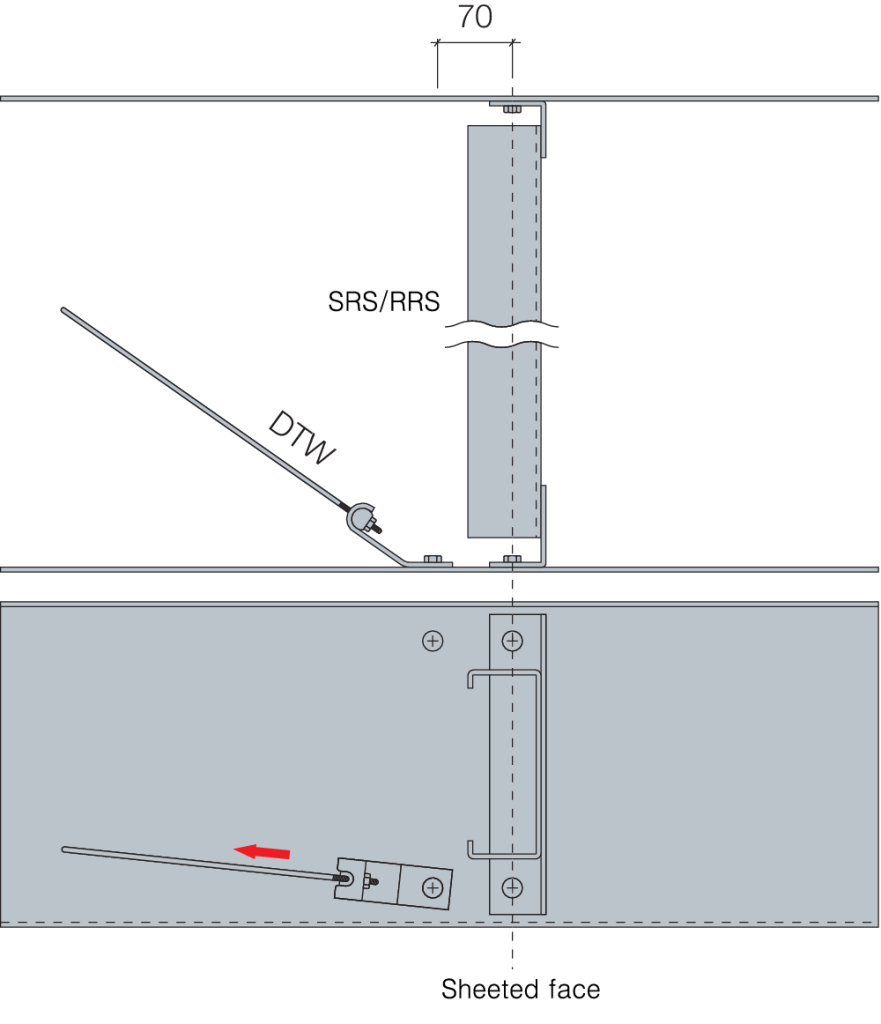

V5 302 and 342 series

version 5

SRS denotes side rail supports

DTW denotes diagonal tie wires

 Indicates to cleat bolts nearest to column face

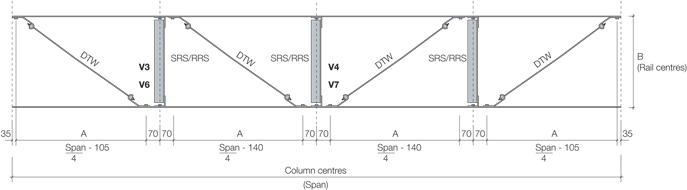

Side Rail Support Arrangement – 10.1m < spans ≤ 15m

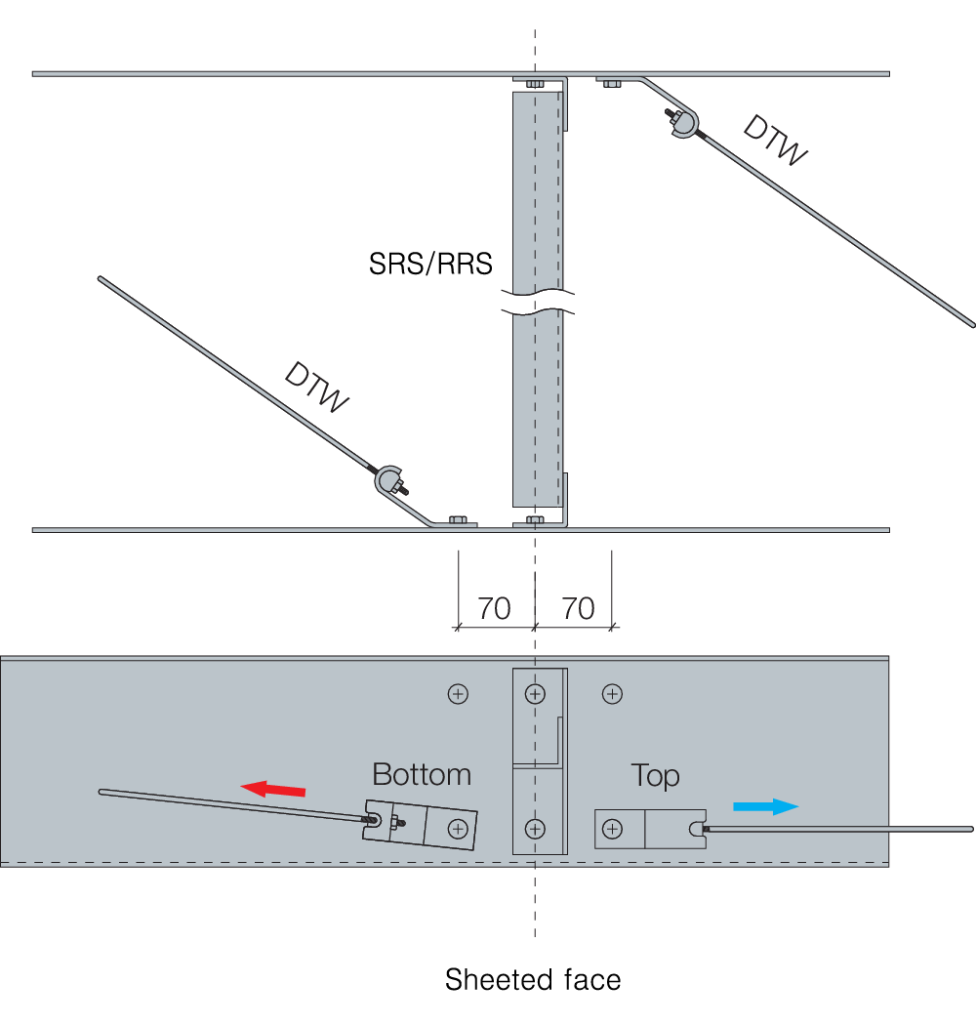

V3

version 3

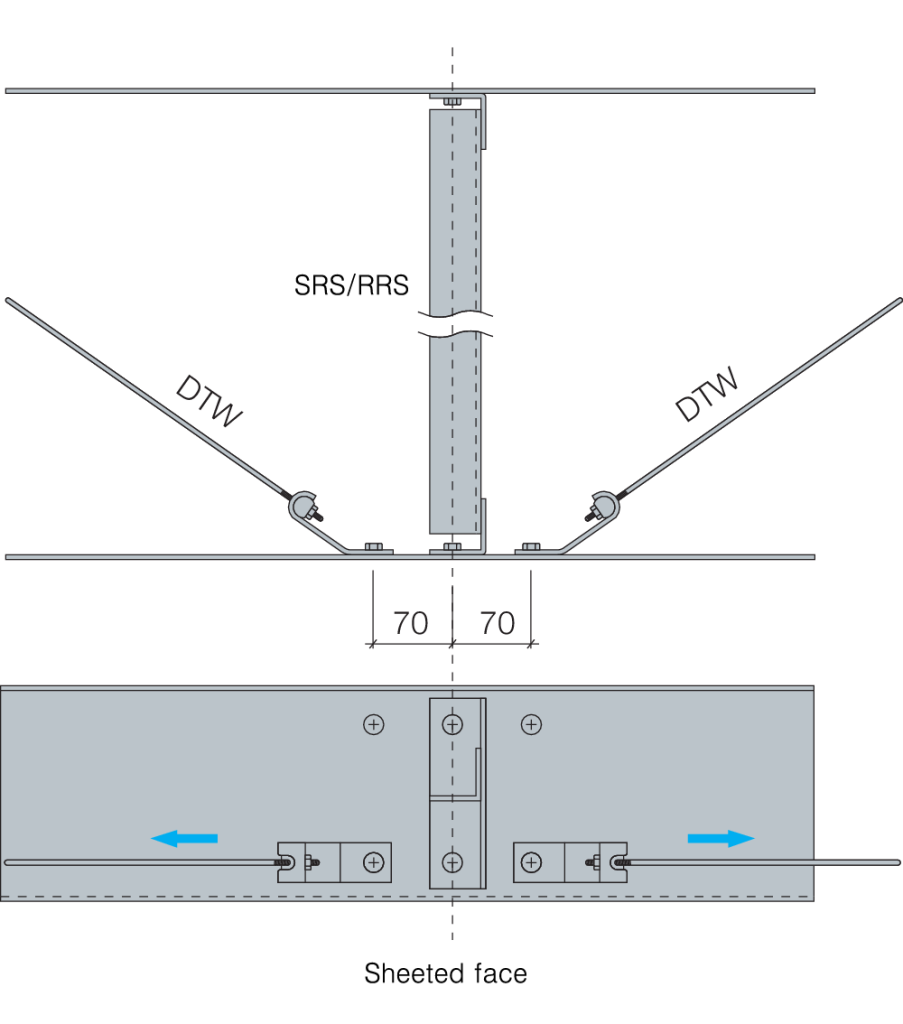

V4

version 4

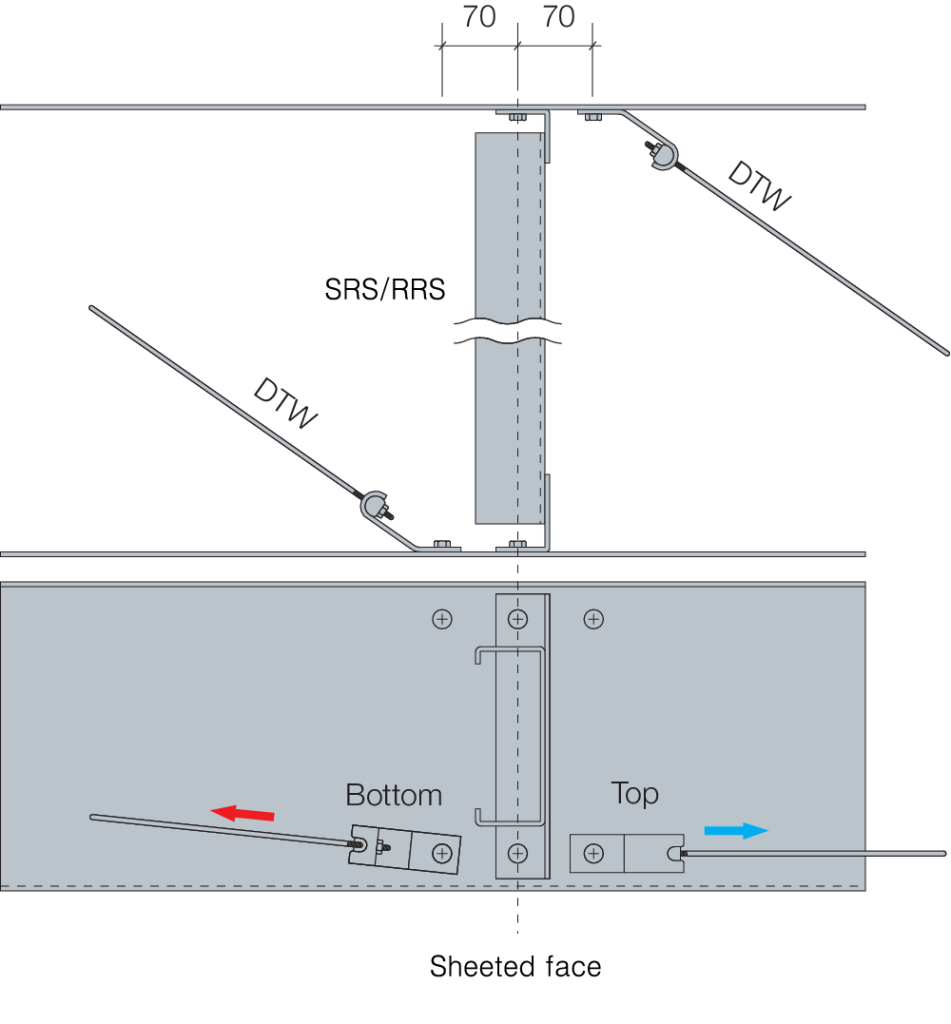

V6 302 and 342 series

version 6

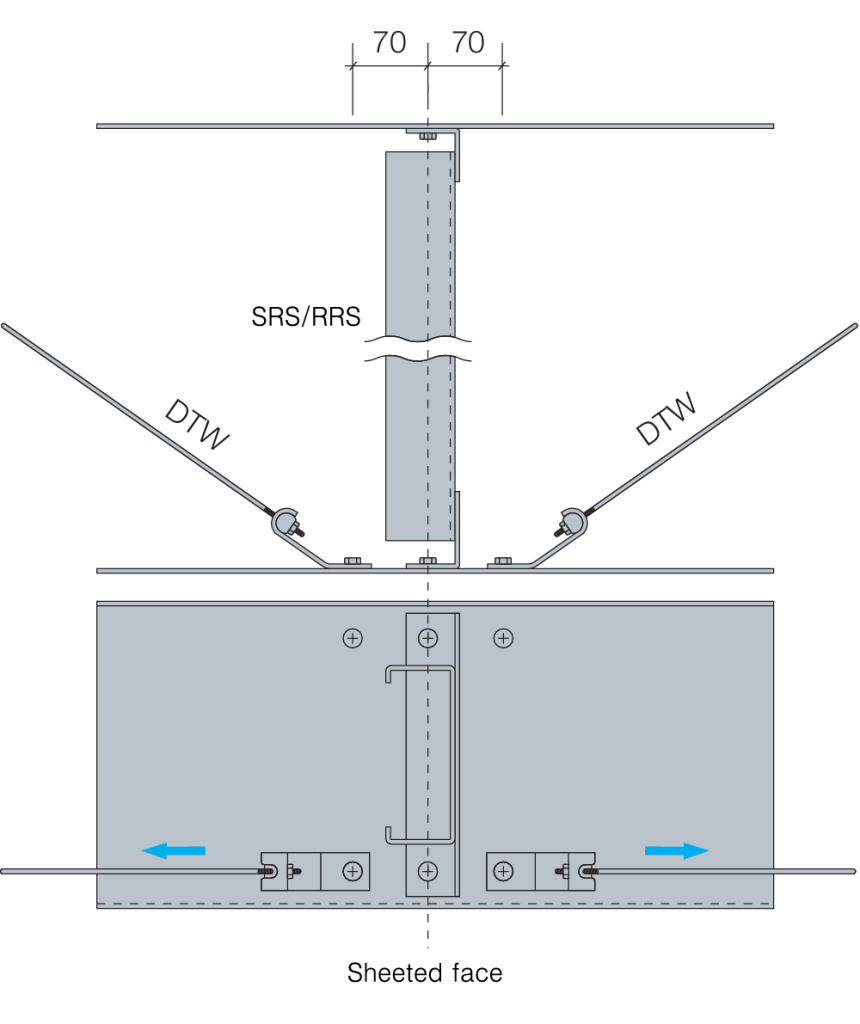

V7 302 and 342 series

version 7

SRS denotes side rail supports

DTW denotes diagonal tie wires

 Indicates to cleat bolts nearest to column face

 Indicates to cleat bolts nearest to sheeting face
