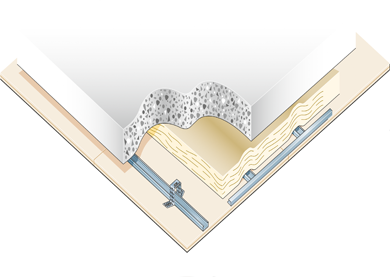

Ceiling Lining System

Ideal for commercial and domestic applications and compatible for use with partitioning systems the WL507 ceiling lining system can be used under timber or concrete flooring and lined with any proprietary Gypsum plasterboard. Mineral wool insulation can be included in the cavity to further improve acoustic performance.

• Single and double plasterboard layer configurations
• Brackets and clips available within the accessory range
• 20mm minimum drop can be achieved to reduce the impact on ceiling height

Ceiling Lining Framework Installation

To be read with reference to BS 8000:8 2023 and in conjunction with full Speedline / Tradeline project specific documentation which is created and available on request.

Perimeter Track

Install Metsec WL60 track secured to perimeter of the room, in the centre of the profile at 600mm maximum centres with suitable fixings.

Liner Section

Install row of WL507 Metsec Ceiling Liner Section at 400mm or 450mm centres (dependent on plasterboard length) . Fit Liner Section into perimeter Track at edges.

Stand Off

To suit application between 20 and 170mm

Brackets

Fix brackets AWL03, AWL04 or AWL08 to the concrete soffit at maximum 900mm centres with suitable fixings. Bend to suit and secure Liner section with 2 wafer head drywall screw each side of bracket.

Plasterboard Installation for Ceiling Lining

Single Layer

Plasterboard must be fixed at 230mm maximum centres within the body and 150mm around the perimeter of the board.

Position drywall screws not less than 10mm from the paper bound edge of the plasterboard and 13mm from any cut edge. Ensure a minimum of 10mm penetration into the WL507.

Recess heads of drywall screws below surface of plasterboard but do not break paper or gypsum core.

Double Layer

Inner layer of plasterboard must be fixed at 230mm maximum centres within the body and 150mm around the perimeter of the board. The outer layer must be fixed at 300mm maximum centres within the body and perimeter.

Plasterboard joints on the outer layer must be staggered compared to the inner layer.

Position drywall screws not less than 10mm from the bound edge of the board and 13mm from any cut edge. Ensure a minimum of 10mm penetration into the WL507.

Recess heads of screws below surface of plasterboard but do not break paper or gypsum core.

The above is issued as a guide – full system specific documentation (dependent on required performance) is available on request.

Last updated 20/07/23
