Standard distribution trunking is available in widths and depths up to 225mm as standard. Lids are attached by turnbuckle fixings, with screwfix and tamperproof fixings also available.

Trunking straight lengths come complete with coupler and fixing screws.

Materials and finishes available are mild steel pre galvanised as standard and powder coated to order.

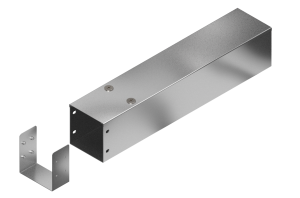

3m Length with Lid and Coupler

Fixing Options

  • Turnbuckle type e.g. TSL/100/100/PG3
  • Screwfix type – add “S” after the first T e.g. TSSL/100/100/PG3
  • Tamperproof type – add “M” after the first T e.g. TMSL/100/100/PG3
Width mm 50mm
Deep
75mm
Deep
100mm
Deep
150mm
Deep
225mm
Deep
50 TSL/050/​050/PG3 N/A N/A N/A N/A
75 TSL/075/​050/PG3 TSL/075/​075/PG3 N/A N/A N/A
100 TSL/100/​050/PG3 TSL/100/​075/PG3 TSL/100/​100/PG3 N/A N/A
150 TSL/150/​050/PG3 TSL/150/​075/PG3 TSL/150/​100/PG3 TSL/150/​150/PG3 N/A
225 TSL/225/​050/PG3 TSL/225/​075/PG3 TSL/225/​100/PG3 TSL/225/​150/PG3 TSL/225/​225/PG3
