Flat bends for Metsec cable ladders are available with 90° bend and 300mm radius as standard with 30°, 45° and 60° variations and 450mm, 600mm, 750mm and 900mm radii produced to order.

Flat bends are manufactured in 50mm, 100mm, 125mm and 150mm depths, each with the same footprint to aid setting out when final loadings are not yet available.

Standard widths are 150mm, 300mm, 450mm, 600mm, 750mm and 900mm with alternative widths available, to order, to meet the requirements of the European markets.

Materials and finishes available are mild steel hot dip galvanised as standard and stainless steel grade 1.4404 (316L) to order.

Closed and ventilated covers are available for all flat bends.

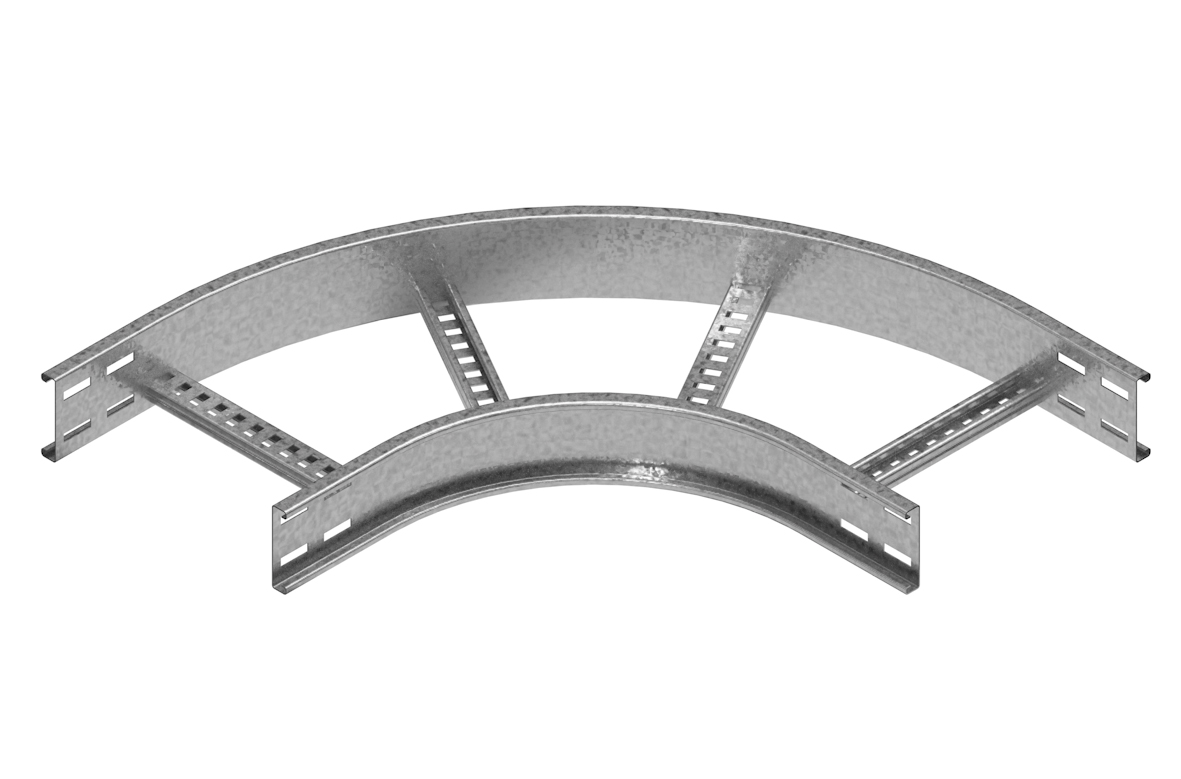

90° Flat Bend

Standard radius 300mm = R300, other radii R450R600R750 and R900 (made to order).

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep
Medium Duty
100mm Deep
Heavy Duty
125mm Deep
Extra Heavy Duty
150mm Deep
150 LFB050/0150​HDG/90R300 LFB100/0150​HDG/90R300 LFB125/0150​HDG/90R300 LFB150/0150​HDG/90R300
300 LFB050/0300​HDG/90R300 LFB100/0300​HDG/90R300 LFB125/0300​HDG/90R300 LFB150/0300​HDG/90R300
450 LFB050/0450​HDG/90R300 LFB100/0450​HDG/90R300 LFB125/0450​HDG/90R300 LFB150/0450​HDG/90R300
600 N/A LFB100/0600​HDG/90R300 LFB125/0600​HDG/90R300 LFB150/0600​HDG/90R300
750 N/A LFB100/0750​HDG/90R300 LFB125/0750​HDG/90R300 LFB150/0750​HDG/90R300
900 N/A LFB100/0900​HDG/90R300 LFB125/0900​HDG/90R300 LFB150/0900​HDG/90R300

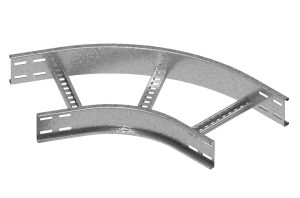

60° Flat Bend (made to order)

Standard radius 300mm = R300, other radii R450R600R750 and R900 (made to order).

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep
Medium Duty
100mm Deep
Heavy Duty
125mm Deep
Extra Heavy Duty
150mm Deep
150 LFB050/0150​HDG/60R300 LFB100/0150​HDG/60R300 LFB125/0150​HDG/60R300 LFB150/0150​HDG/60R300
300 LFB050/0300​HDG/60R300 LFB100/0300​HDG/60R300 LFB125/0300​HDG/60R300 LFB150/0300​HDG/60R300
450 LFB050/0450​HDG/60R300 LFB100/0450​HDG/60R300 LFB125/0450​HDG/60R300 LFB150/0450​HDG/60R300
600 N/A LFB100/0600​HDG/60R300 LFB125/0600​HDG/60R300 LFB150/0600​HDG/60R300
750 N/A LFB100/0750​HDG/60R300 LFB125/0750​HDG/60R300 LFB150/0750​HDG/60R300
900 N/A LFB100/0900​HDG/60R300 LFB125/0900​HDG/60R300 LFB150/0900​HDG/60R300

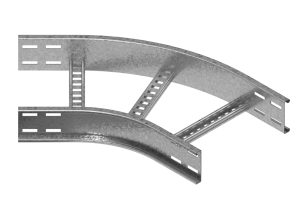

45° Flat Bend (made to order)

Standard radius 300mm = R300, other radii R450R600R750 and R900 (made to order).

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep
Medium Duty
100mm Deep
Heavy Duty
125mm Deep
Extra Heavy Duty
150mm Deep
150 LFB050/0150​HDG/45R300 LFB100/0150​HDG/45R300 LFB125/0150​HDG/45R300 LFB150/0150​HDG/45R300
300 LFB050/0300​HDG/45R300 LFB100/0300​HDG/45R300 LFB125/0300​HDG/45R300 LFB150/0300​HDG/45R300
450 LFB050/0450​HDG/45R300 LFB100/0450​HDG/45R300 LFB125/0450​HDG/45R300 LFB150/0450​HDG/45R300
600 N/A LFB100/0600​HDG/45R300 LFB125/0600​HDG/45R300 LFB150/0600​HDG/45R300
750 N/A LFB100/0750​HDG/45R300 LFB125/0750​HDG/45R300 LFB150/0750​HDG/45R300
900 N/A LFB100/0900​HDG/45R300 LFB125/0900​HDG/45R300 LFB150/0900​HDG/45R300

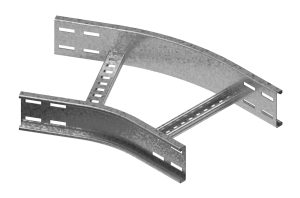

30° Flat Bend (made to order)

Standard radius 300mm = R300, other radii R450R600R750 and R900 (made to order).

Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)

Width mm Light Duty
50mm Deep
Medium Duty
100mm Deep
Heavy Duty
125mm Deep
Extra Heavy Duty
150mm Deep
150 LFB050/0150​HDG/30R300 LFB100/0150​HDG/30R300 LFB125/0150​HDG/30R300 LFB150/0150​HDG/30R300
300 LFB050/0300​HDG/30R300 LFB100/0300​HDG/30R300 LFB125/0300​HDG/30R300 LFB150/0300​HDG/30R300
450 LFB050/0450​HDG/30R300 LFB100/0450​HDG/30R300 LFB125/0450​HDG/30R300 LFB150/0450​HDG/30R300
600 N/A LFB100/0600​HDG/30R300 LFB125/0600​HDG/30R300 LFB150/0600​HDG/30R300
750 N/A LFB100/0750​HDG/30R300 LFB125/0750​HDG/30R300 LFB150/0750​HDG/30R300
900 N/A LFB100/0900​HDG/30R300 LFB125/0900​HDG/30R300 LFB150/0900​HDG/30R300
