Product Footprints

Cable ladder — accessory foot print standard radius is 300mm

Post Galvanised & Stainless Steel 90° Flat Bend

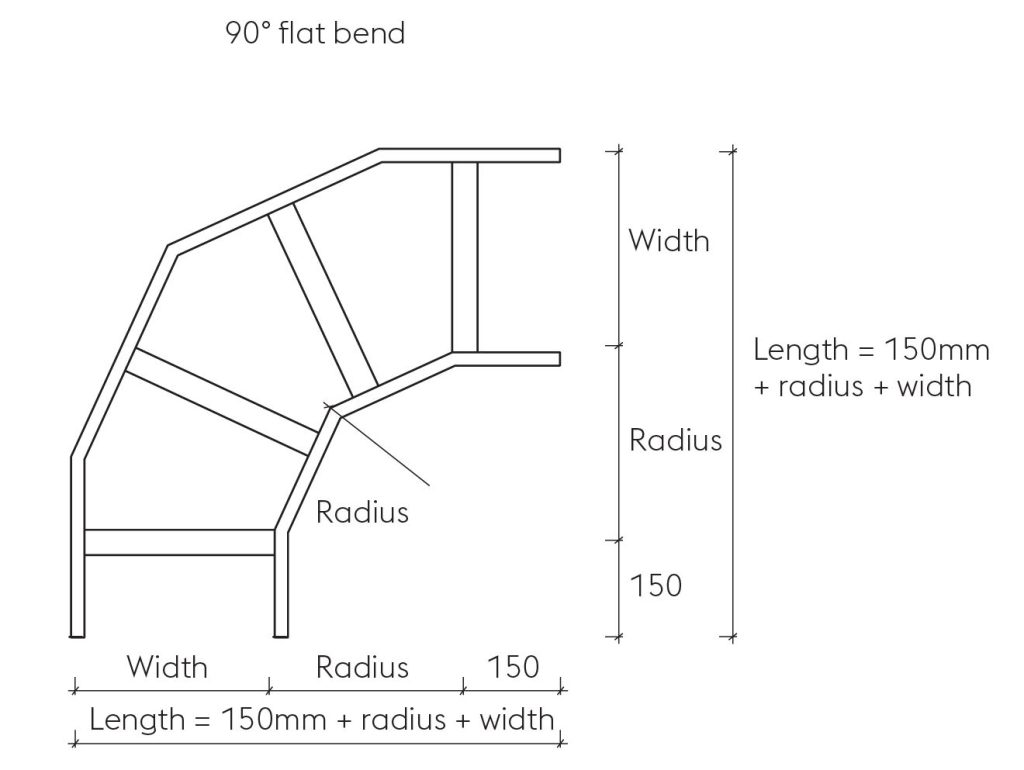

90 Degree Flat bend

Post Galvanised & Stainless Steel Crossover

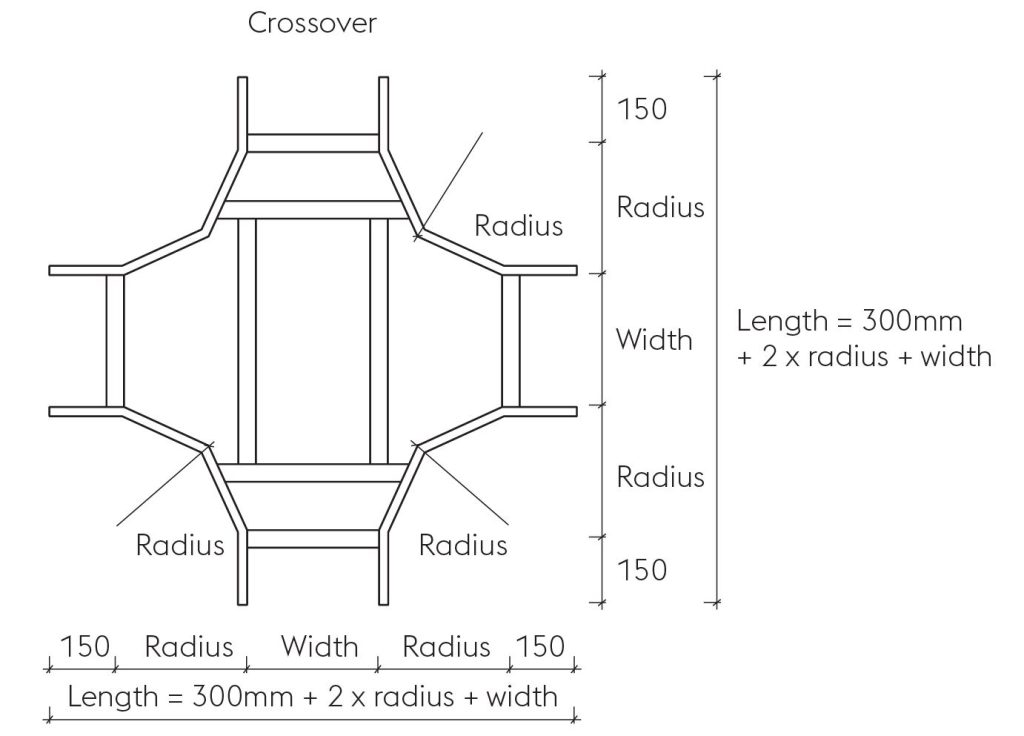

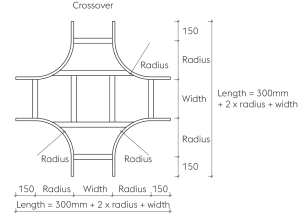

Crossover Footprint

Post Galvanised & Stainless Steel Equal Tee

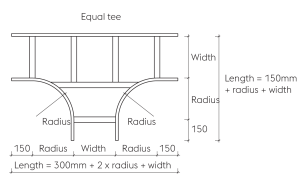

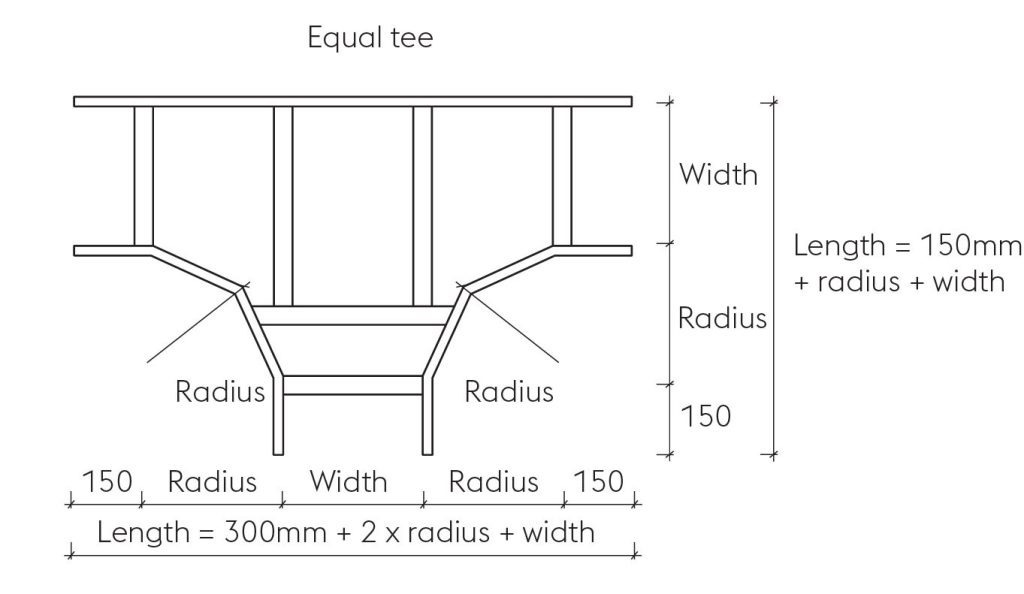

Equal Tee Footprint

Post Galvanised & Stainless Steel Unequal Tee

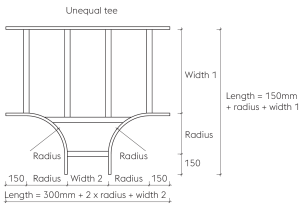

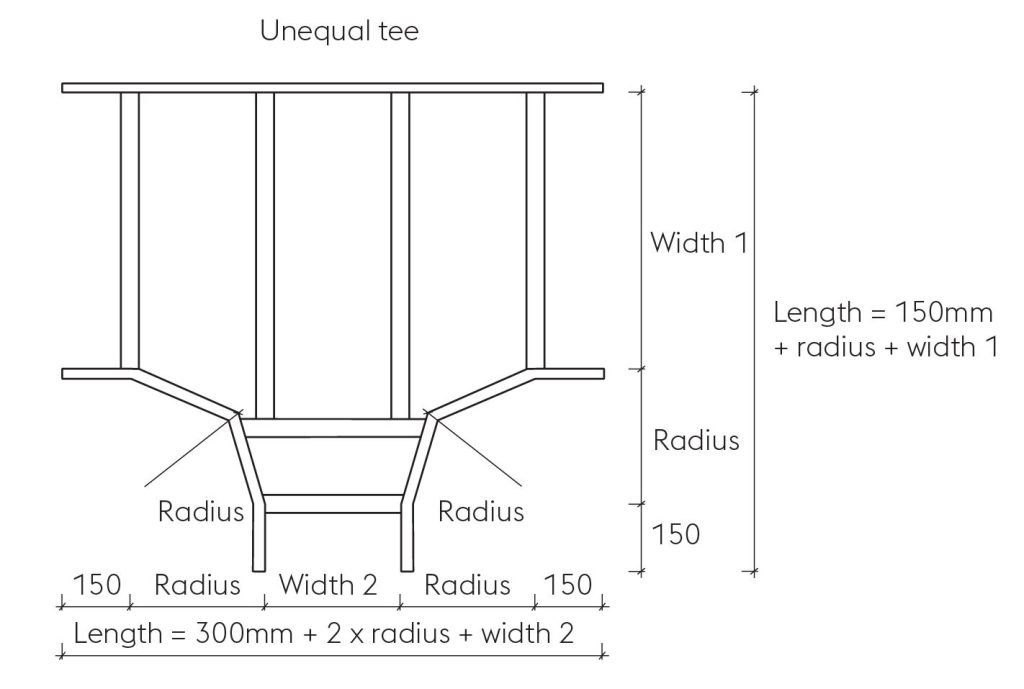

Unequal Tee Footprint

Post Galvanised & Stainless Steel 90° Riser

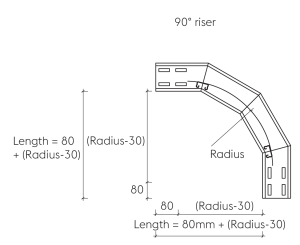

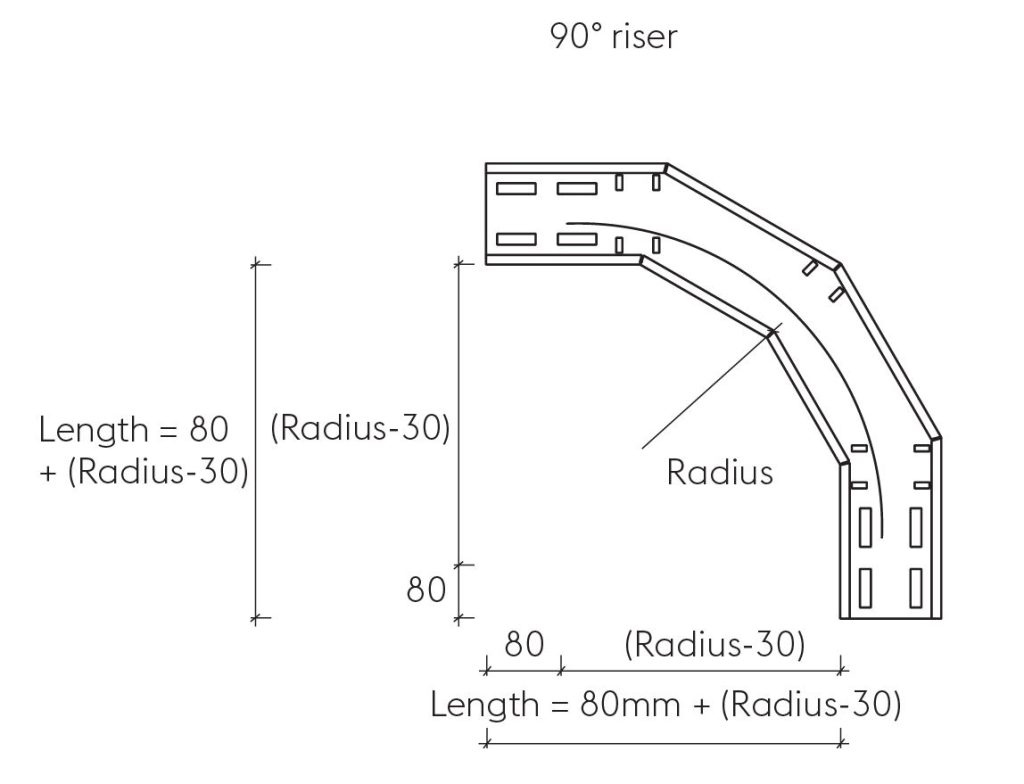

90 Degree Riser Footprint

Post Galvanised & Stainless Steel Reducers

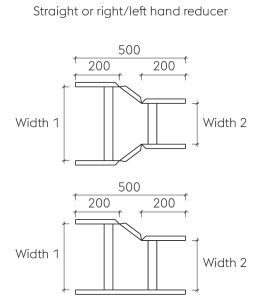

Straight or right left hand reducer

Straight or Right/Left Hand Reducers

Footprints are identical for all ranges

Pre-Galvanised 90° Flat Bend

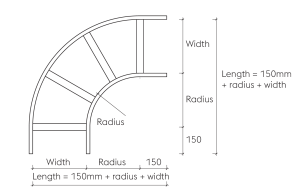

Pre-Galvanised 90 Flat Bend Footprint

Pre-Galvanised Crossover

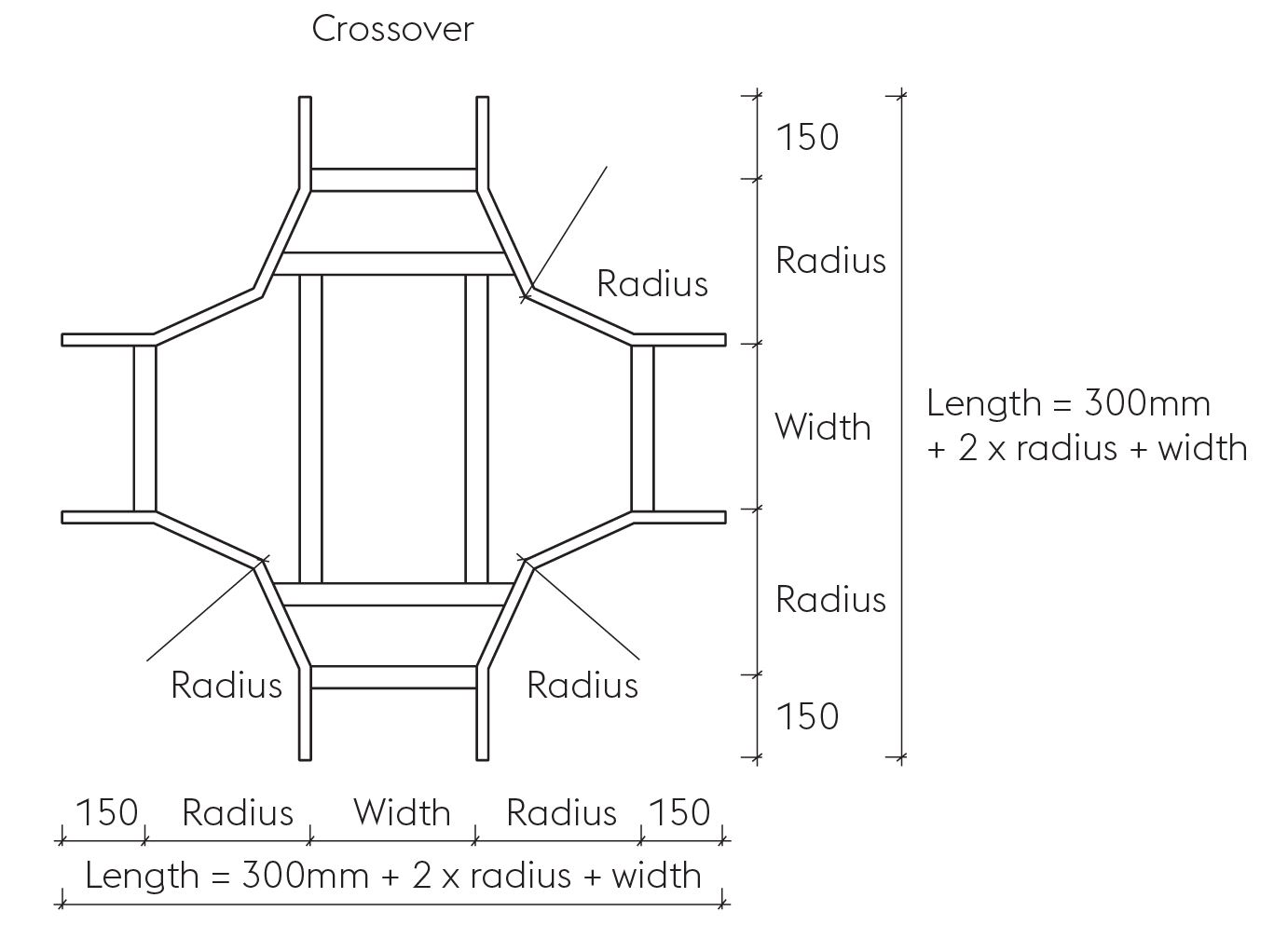

Pre-Galvanised Crossover Footprint

Pre-Galvanised Equal Tee

Pre-Galvanised Equal Tee Footprint

Pre-Galvanised Unequal Tee

Pre-Galvanised unequal tee footprint

Pre-Galvanised 90° Riser

Pre-Galvanised 90 Riser Footprint

Pre-Galvanised Reducers

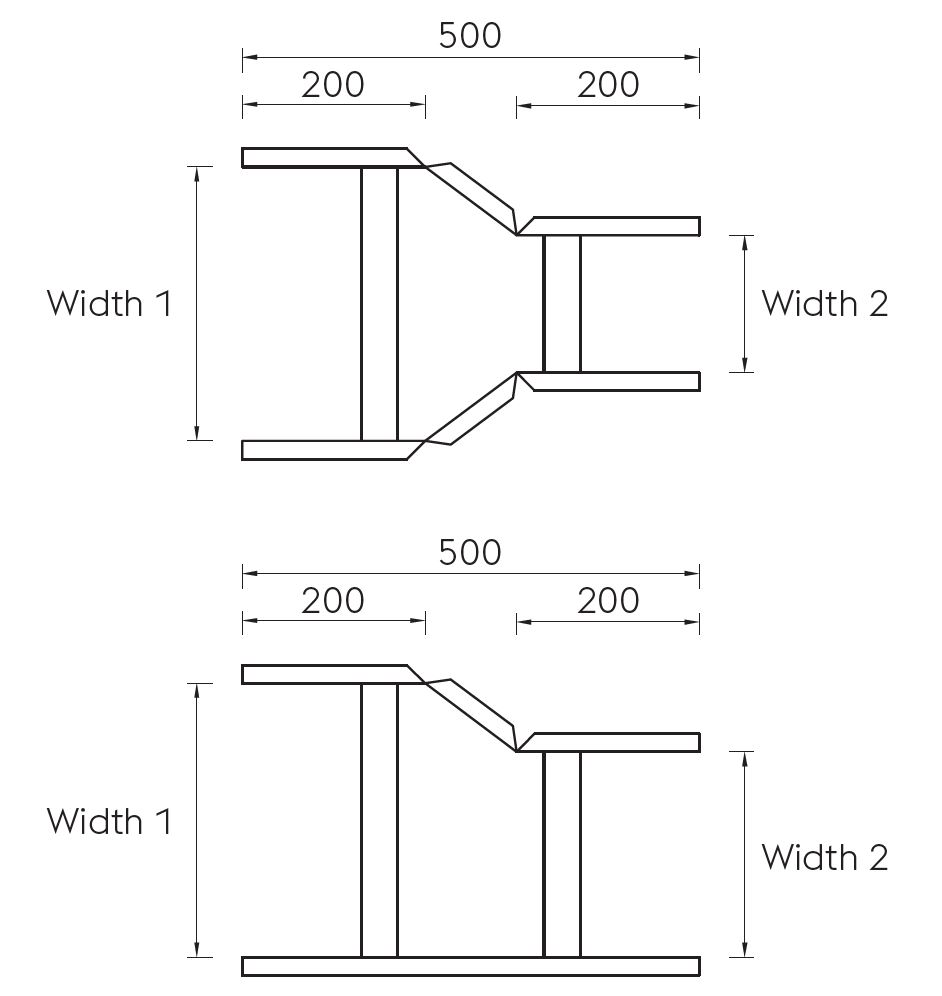

Pre-Galvanised Reducer Footprint

Straight or Right/Left Hand Reducers

Footprints are identical for all ranges
